DESCRIPTION

This replacement is compatible with MHI Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

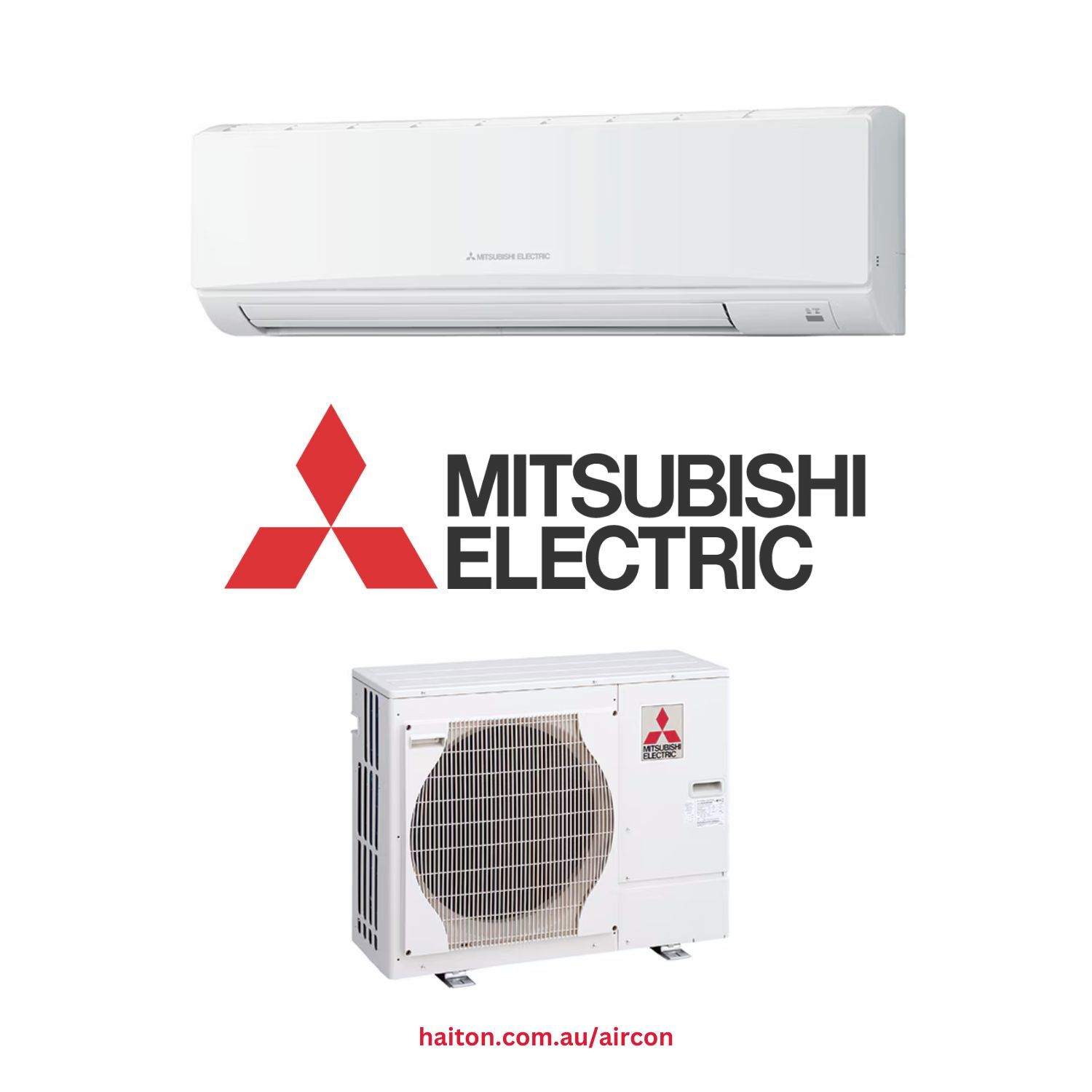

Title: 2.5KW MSZ-AP Series Split Air Conditioner | Mitsubishi Electric

Brand: MHI

MPN: MSZ-AP20VGD

SKU Number: HTN_0000187

Notes:

2.5KW MSZ-AP Series Split Air Conditioner | Mitsubishi Electric

Product Specifications

  • Model - Indoor Unit: MSZ-AP20VGD

  • Model - Outdoor Unit: MUZ-AP20VG(D)

  • Cooling Capacity: 2.0 kW

  • Heating Capacity: 2.5 kW

  • Refrigerant: R32

  • Sound Pressure Level - Indoors (Quiet / Lo / Mid / Hi / SHi): 21 / 26 / 30 / 35 / 42 dB(A)

  • Sound Pressure Level - Outdoors (PWL): 47 (59) dB(A)

  • Dimensions - Indoor Unit (H x W x D): 250MM x 760MM x 178MM

  • Weight - Indoor Unit: 8.2 kg

  • Dimensions - Outdoor Unit (H x W x D): 550MM x 800MM x 285MM

  • Weight - Outdoor Unit: 31 kg

Product Features

  • Heating and cooling

  • Dual Barrier Coating

  • Night Mode

  • Weekly Timer

  • Vertical and Horizontal Vanes

  • Wi-Fi Control* (Optional)

Product Features - Reverse cycle heating

Activate the heating mode to provide a warm and cosy space. Reverse cycle air conditioning can be a relatively efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.

Product Features - Full Inverter

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.

Product Features - Dual Barrier Coating

Dual Barrier Coating reduces dust and greasy dirt from collecting on the surfaces of the air conditioner, and airborne contaminants sticking to the unit. Providing an air conditioner that is not only cleaner but also requires less cleaning.

Product Features - Quiet Operation

“Quiet Mode” setting has been added to the fan speed settings, ensuring super quiet operation as low as 18dB*. Perfect for the bedroom; it’s so quiet you’ll check to see if it’s on. *Model 25 in heating mode only.

Product Features - Plasma Quad Connect air purifying filter

Optional secondary air purifying filter that connects to your air conditioner. Plasma Quad technology significantly improves indoor air quality by inhibiting six key indoor pollutants; Influenza virus, bacteria, PM2.5, allergens, mould and dust. Plasma Quad Connect helps improve indoor air quality, which is not only good for a healthier environment but can provide peace of mind and reassurance for the home, school or office. Optional part: MAC-100FT-E

Blue fin condenser

Anti-corrosion treatment has been applied to the heat exchanger of the outdoor unit. This coating slows the corrosion process of the aluminium fins; this is caused by salt in the air, especially in coastal areas. (Corrosion of the heat exchanger will affect efficiency and performance.)

Resources

MSZ-AP Series Official Sales Video

Installation Manual

User Manual
