DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

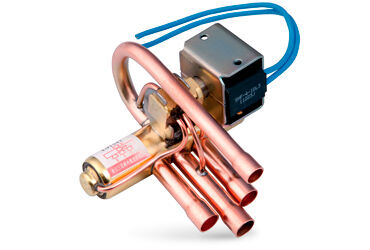

Title: 4 WAY REVERSING VALVE- SHF SERIES SHF-9 240V COIL

MPN: A021003

SKU Number: HTN_0000439

Notes:

4 WAY REVERSING VALVE- SHF SERIES SHF-9

SHF (HP) series four-way reversing valves are designed especially for usage in heat pump systems to realize switching between cooling mode and heating mode by changing the flow path of the refrigerant.

1 x 3/8", 3 x 8/5"

Features

  • Wide application range
  • Suitable for cooling capacities from 3 to 40kW (R407C, Condition 1)
  • Several designs available

General specifications

  • Applicable for all common HCFC and HFC refrigerants such as:
    R22, R134a, R404A, R407C, R410A, R507A...
  • Min./max. ambient temperature: -25°C to +70°C
  • PS: 4,5 MPa (45 bar)
  • TS min./max.: -30°C / +135°C
  • Max. OPD: 4,0 MPa
  • Max. operating pressure PS: 4,5 Mpa (45 bar)
  • Installation position:
    • Coil upwards or with body axis in horizontal alignment
    • Flow direction according to installation instruction
  • Relative humidity below 95%
  • Certifications: UL/CSA* and declaration according to LVD or PED
  •


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU HTN_0000439
Brand Universal
