DESCRIPTION

This Condenser replacement is compatible with ACTRONAIR Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

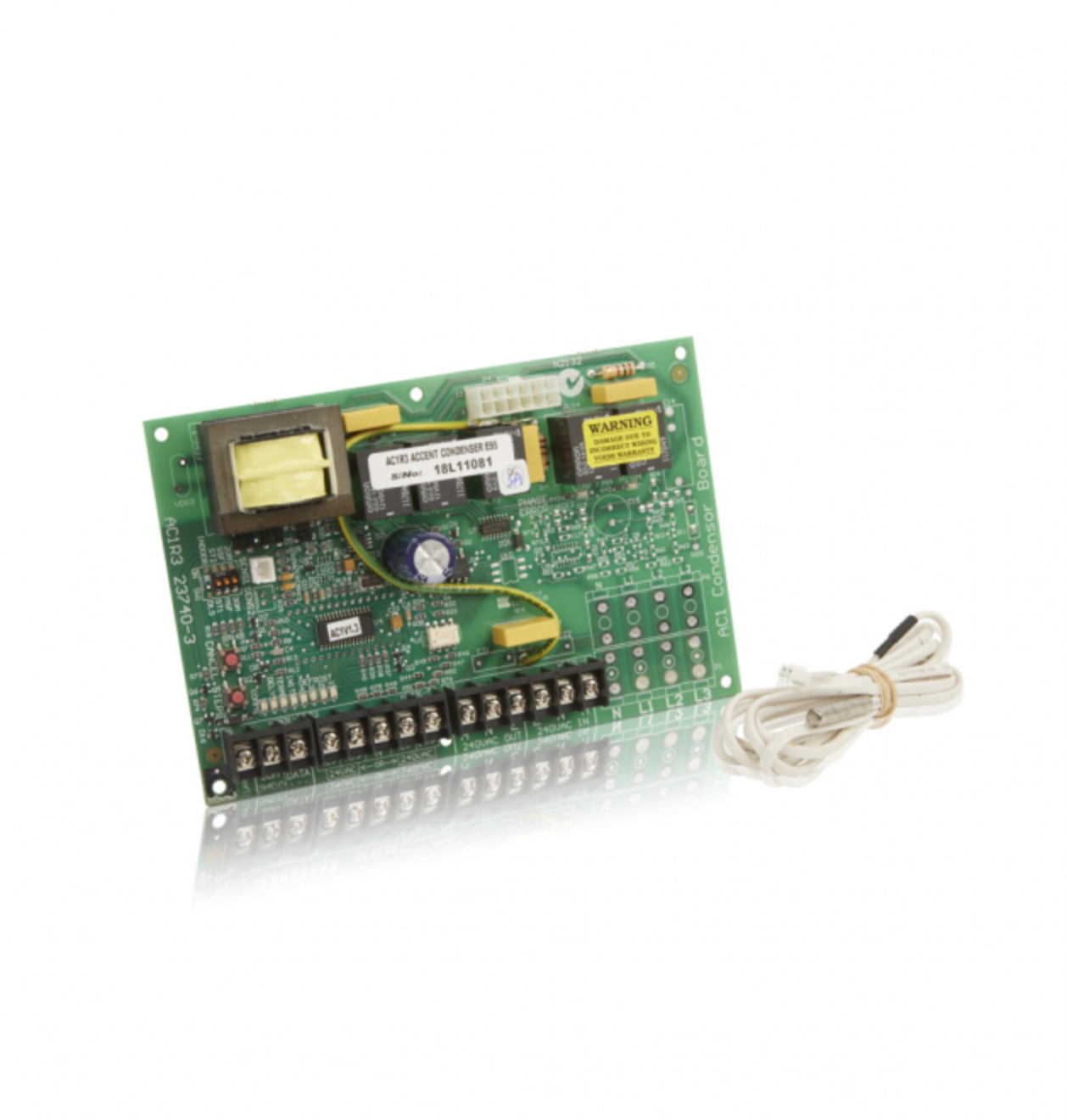

Title: AIR CONDITIONER ACTRON AC1R2 R3 CONDENSER BOARD (ACCENT) FINAL

Brand: ActronAir

Type: Condenser

Suitable Brand: ActronAir

Suitable Applicance Class: Air Conditioner

Suits to: AC1R3 23740-3 (old) & AFR-AC1R2-1 (new)

Model: AC1R3 23740-3 (old) & AFR-AC1R2-1 (new)

MPN: AC1R3 23740-3 (old) & AFR-AC1R2-1 (new)

Mounting Location: LM7,AMZR4,AC1R3 23740-3 (old) & AFR-AC1R2-1 (new)

Heating System: Split System

Number of Compressors: 1

Voltage: 230

UPC: Does not apply

Notes: ACTRON AC1R2 R3 CONDENSER BOARD (ACCENT) FINAL
ACTRON CONTROLS AC1R3 ACCENT CONDENSOR BOARD FINAL
Actron P/N:

AFR-AC1R3-1
replacing
AC1R3 23740-3 (old) & AFR-AC1R2-1 (new)
The AC1 boards are interchangeable
Actron: “The AC1 boards are interchangeable the printing on the board will say AC1R3 but we have made them as the AC1R2 as we never populated part of the board that makes them the R3”
The AC1 Condensor Management System communicates with the BM8 Fan Coil Controller via a 2-wire data cable. The BM8 RUN Led will Flash ON/ OFF: if the AC1 is in De-Ice, during the Compressor Anti-Cycle Delay, during the HP/LP Trip Delay (displays "E-C" or if Data Communication is not present (displays "E-D"). The red ERR Led is normally OFF, COMMS Led is blinking to indicate Data Communication


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU EBY_274135863276
Brand ActronAir
