DESCRIPTION

This PCB replacement is compatible with ACTRONAIR Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: AIR CONDITIONER ACTRON OUTDOOR PCB BOARD EXCLIPS, ACCENT,PIONEER - AFS-D8CPUR3-1

Brand: ActronAir

Type: PCB

Title : AIR CONDITIONER ACTRON OUTDOOR PCB BOARD EXCLIPS, ACCENT,PIONEER - AFS-D8CPUR3-1

Notes :
OUTDOOR PCB BOARD EXCLIPS , ACCENT ,PIONEER
D8CPU Condenser Management System
Actron P/N:
REPLACEMENT
AFR-D8CPUR3-1 FOR
AFS-D8CPUR3-1
Actron Controls D8CPU3 "inc Sensor" suits (Elipse,Pioneer,Accent)
Overview:

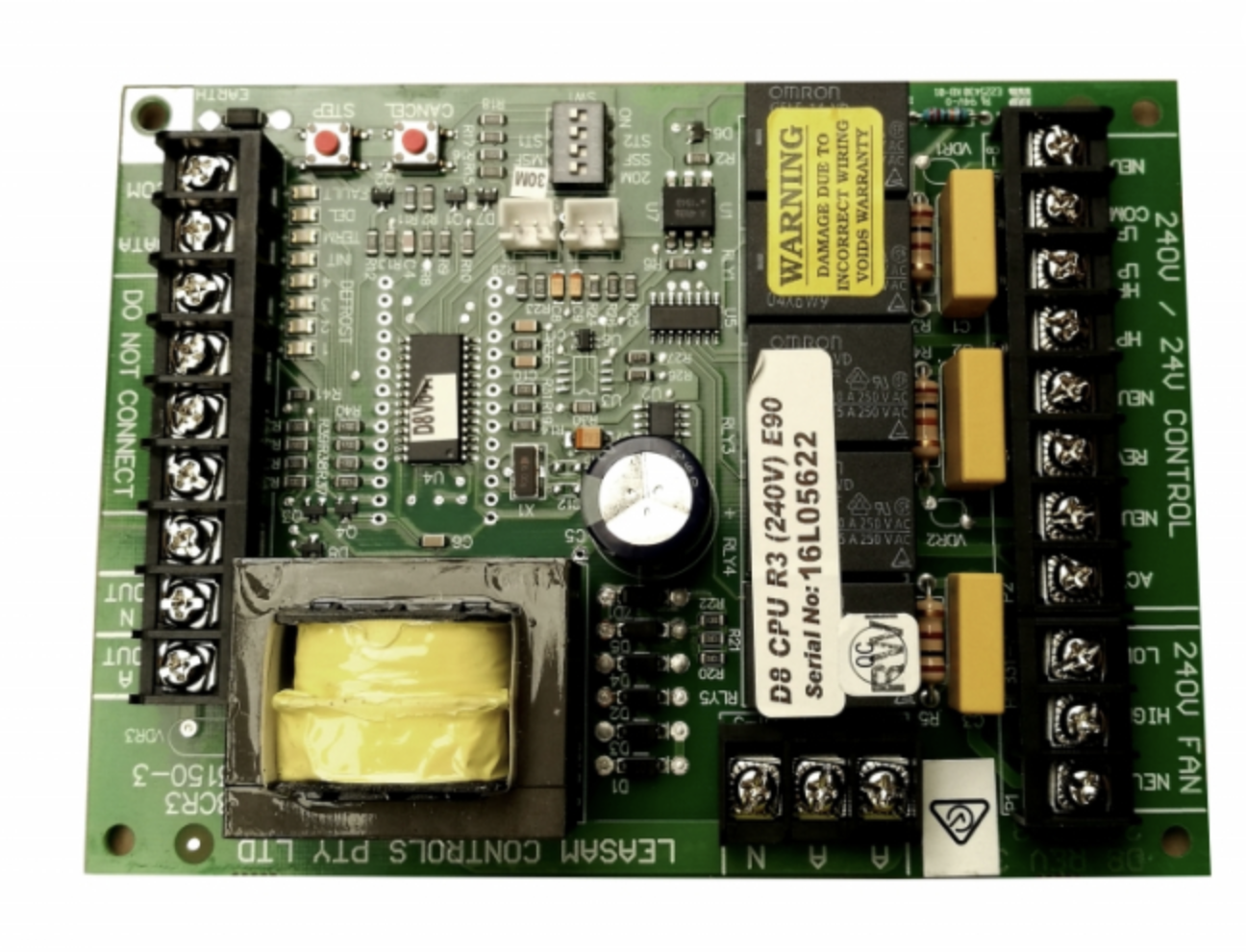

The D8CPU Board is a complete solution for condenser management requirements and is designed to be installed at factory level. The D8 is interfaced directly at Data level to the nominated Leasam Control. An optional Manual Input Card is available to interface with other thermostats or other types of control systems.
The D8CPU Board is designed to minimize wiring by providing all the connections to the HP/LP safeties, Compressor Contactor, 4Way Valve, Condenser fan and control fuse.
Operating Features:
1: Defrost Control features.
2: Defrost hold off time.
3: Defrost confirmation time.
4: Defrosts on time and/or temperature.
5: Residual water removal from condenser coil.
6: Indoor coil preheat cycle.
7: Two-speed Condenser fan control option.
8: Compressor Anti Cycle Timer.
9: High/ Low-Pressure safety trip protection.
10: Low-Pressure bypass on startup.
11: Random start time on mains power up.
Service Features:
1. Eight Enunciation LED’s to indicate system status.
2. Two push buttons for technician. a) Cancel timers. b) Check defrost operation.

Suitable Brand: ActronAir

Suitable Applicance Class: Air Conditioner

Suits to: AFS-D8CPUR3-1, AFR-D8CPUR3-1 FOR AFS-D8CPUR3-1,

BTU Cooling Rating: 17000-17999 BTU

Model: AFS-D8CPUR3-1

Colour: White

Air Flow Volume: 110-145 CCM

Energy Rating: Compliant

MPN: AFS-D8CPUR3-1,AFR-D8CPUR3-1 FOR AFS-D8CPUR3-1

Mounting Location: AFS-D8CPUR3-1

Number of Heat Settings: 1

Heating System: Split System

Number of Cool Speeds: 1

Power Phase: 1 Phase

Power Source: Corded Electric

Operating Sound Rating: 51-60 dB

Number of Fan Motors: 2

Number of Compressors: 1

Voltage: 230

UPC: Does not apply


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU EBY_293371482915
Brand ActronAir
