Henry Magnetic Check Valve 1"3/8ID

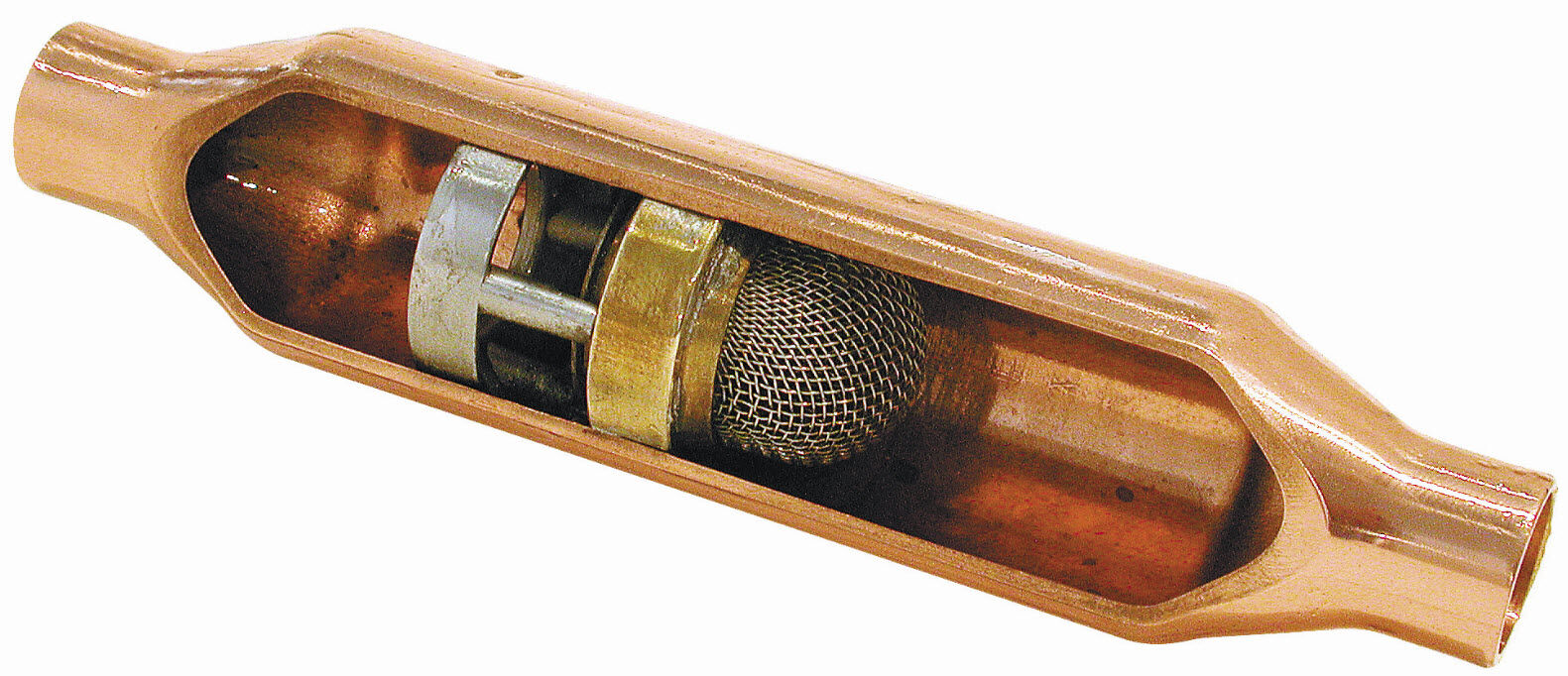

The Henry Technologies check valve uses magnetic attraction to return the valve plate to its seat rather than spring pressure. A conventional type check valve
requires an increase in pressure to force the valve plate off its seat leading to an increase in pressure drop. The magnetic check valve (MCV) has a decreasing
force to move it away from its seat. The further it travels the magnetic attraction diminishes leading to a decrease in pressure drop. MCV’s are therefore a more
efficient option to the conventional check valves.
The Henry MCV uses the latest technology in Dura Form processing, a manufacturing method that eliminates the use of braze materials that can overheat and
damage internal components. The body is 100% copper that has been spun into shape and the connections machined. The result is a valve that is hermetically
sealed, can easily be installed with either soft or hard solder, with a near zero leak rate and exceptional performance.
Suitable for use in the Liquid, Suction, Discharge or Hot Gas lines employing fluorinated refrigerants, these valves are ideal in a new installation or as a
replacement for conventional check valves.
MCV’s are not recommended for Heat Reclaim applications with high differential pressures.

Features
•     Designed for maximum flow and minimal pressure drop.
•     Hermetically sealed copper body.
•     Optimised seat material with a Neoprene coated valve plate.
•     Multi orientation while maintaining flow direction.
•     Built in 30 mesh strainer.
•     Working Temperature range = 40C to 150C.
•     Safe Working Pressure 5,200 kPa up to 5/8” sizes
