TECHNICAL SPECS

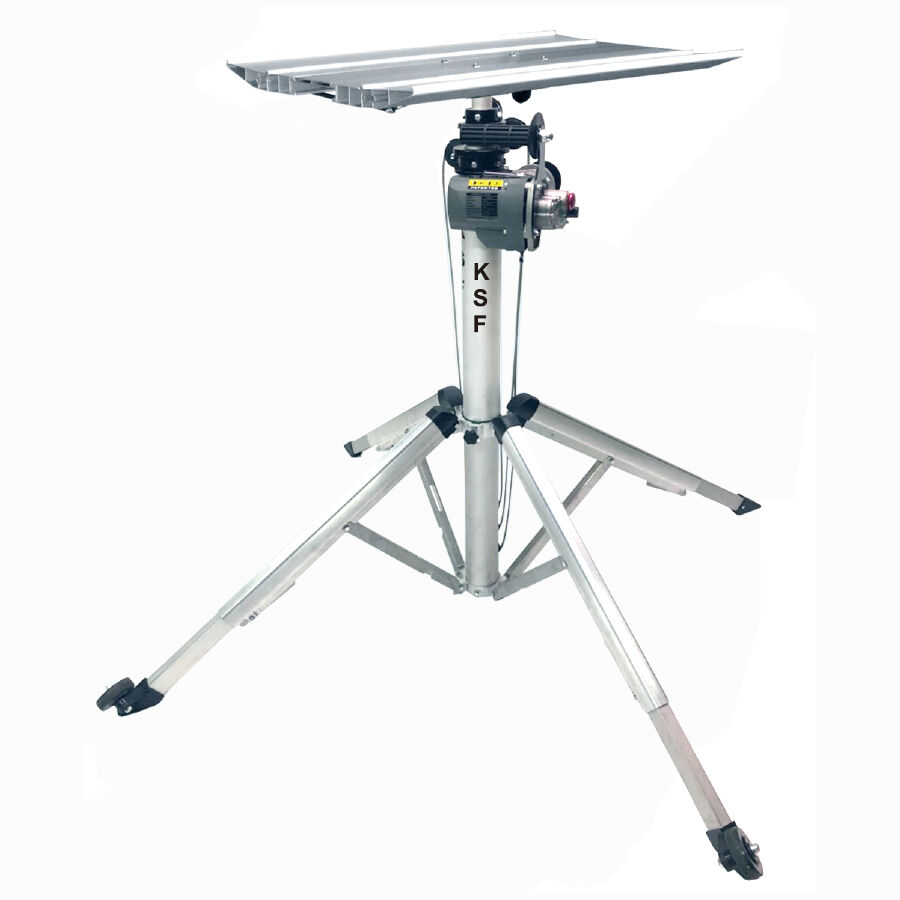

Title: CM439 Portable Lifter

MPN: CM439

SKU Number: HTN_0001025

Notes:

Overview

• The CM439 quickly and easily turns a 3 person lifting job into a single person job giving your company an edge over its competitors.
• Adjustable legs enable the CM439 to work on uneven surfaces and fold compactly.
• The CM439 can lift a maximum weight of 130kg and can lift to a height of 4.27 meters.
• The CM439 is ideal for domestic and smaller commercial operators.  If work demands increase or the work requires, a CM520 is purchased as the second unit.

Key Features

• Constructed with heat treated, robust aluminum
• Compact, safe and reliable. Telescoping mast.
• No tools required to setup the lift, simply undfold, setup and operated within 60 seconds. Single Person setup.
• 4 legs stabilise the lifter. Each leg has variable, independant adjustment for uneven ground - such as stairways. One leg is indepenant so you can operate adjacent to a wall.
• Controller with variable speed switch. Variable speed controller enables soft start with fine adjustment for operating height. Emergency Stop Button. Manual override: In case of power failure or sites with no power operate manually with supplied handle or cordless drill and 17mm socket.
• Automatic Overload clutch: Prevents apprentices overloading the lifter. Level included
• Assists alinging the mast vertically with the adjustable legs. Platform standard - for air conditioners, awnings, garage doors etc. Optional extesion arms available.
• Highly Portable, the compact design folds, making it easy for one person to carry the lifter to/from job. Easily transported in van, car or utility. Large 3" transport wheels with space between will ensure smooth movement when maneuvering the lifter,
• Optional Wheel Kit available.
• Use a cordless drill with a 17mm socket

Compact and easily transported

• The CM439 is easily packed and carried to/from site.
• One bag for the lifter
• One bag for the tray

Easily Carry on-site

• The CM439 is the lightest lifter in our range.

Integrated Level

• Integrated level on the mast helps ensure the mast is vertical before operation.
• Adjust the legs independantly for uneven surfaces to make sure the mast is vertical!

Up/Down Controller

• Easy pistol-grip hold
• Variable speed trigger - exact height positioning with precise control of speed
• Belt clip for convenience
• Up/Down level
• Robust casing

Emergency Stop:

• Safety
• Switches to manual control

Manual Override

• Switch to manual operation at locations without power or in case of a power failure.
• Use the included handle as shown
• OR - use a cordless drill with a 17mm socket
• Engage the Emergency Stop to switch to manual control!
• Remove the Handle to manually operate the lifter when now power is not available.
