DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

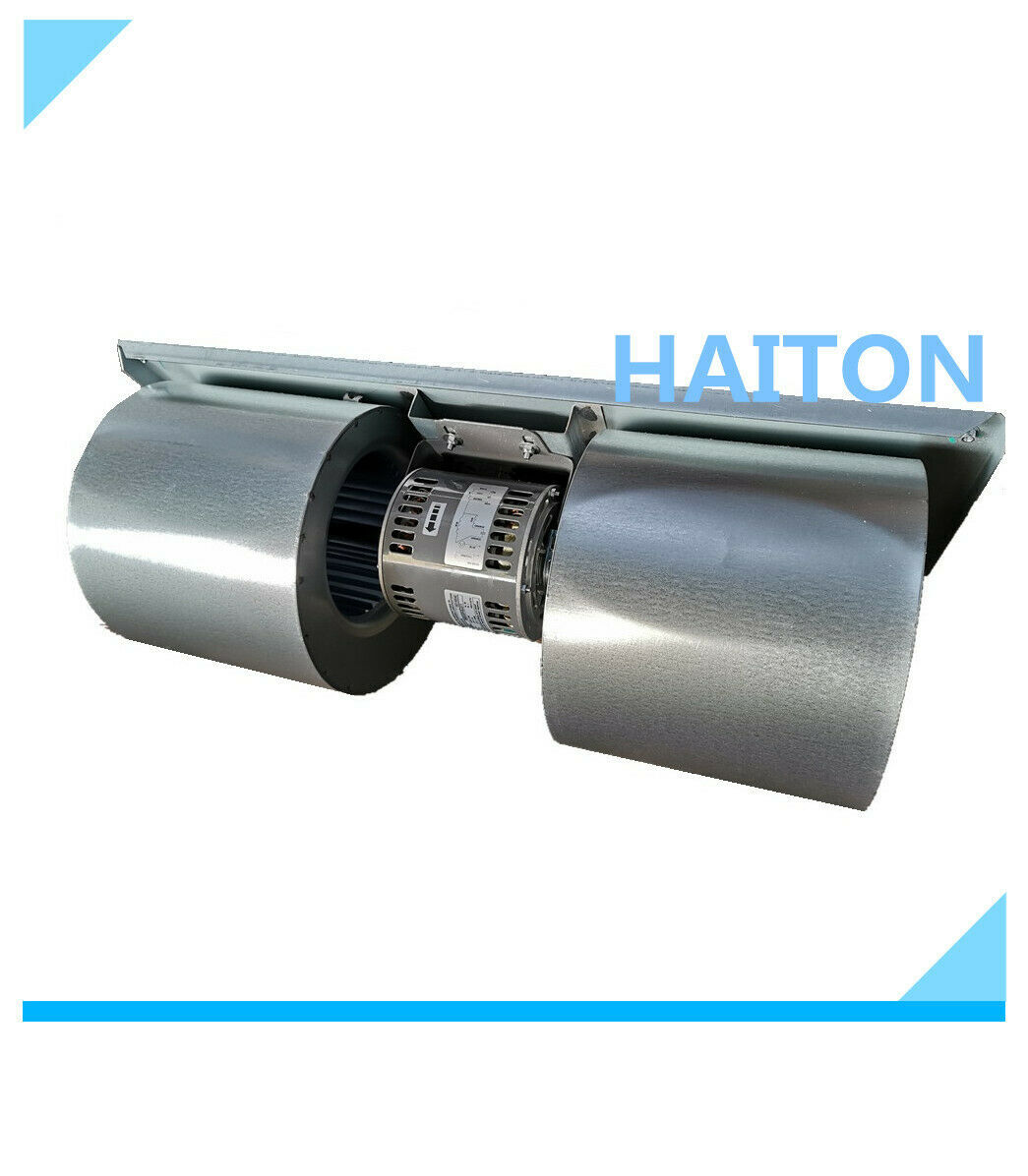

Title: DIRECT DRIVE TWIN FAN DECK 315W 4P MODEL:DXG203203401

MPN: DXG203203401

SKU Number: HTN_0001362

Notes:

DIRECT DRIVE  TWIN FAN DECK 315W 4P( Capacitor not included)

MODEL:DXG203203401

The direct-drive fan decks have forward curved wheel mounted directly to the motor shaft. The motors are 4 poles, 3 speed, and some models may be fitted with a particular size capacitor to give the desired performance. All motors have thermal overload protection and insulation that conforms to class B requirements. The housing is made from G2  Galvabond Steel Z275.

DXC uses the "C" type wheels which have individual blades that use a center locking arrangement for the 241mm diameter units.

DXG uses the "G" type wheels which have plastic wheels available from 82mm. 203mm,241 & 270mm diameter.

DXG203203401

Motor Model: 40P5134-315TA

Wheel(MM) Diam X with:  203X 203

Motor： 240 V 4 Poles 3 Speed

Watts Out: 315 W

Dimensions (MM) A 315 B 813 C 308 D 320





Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU HTN_0001362
Brand Universal
