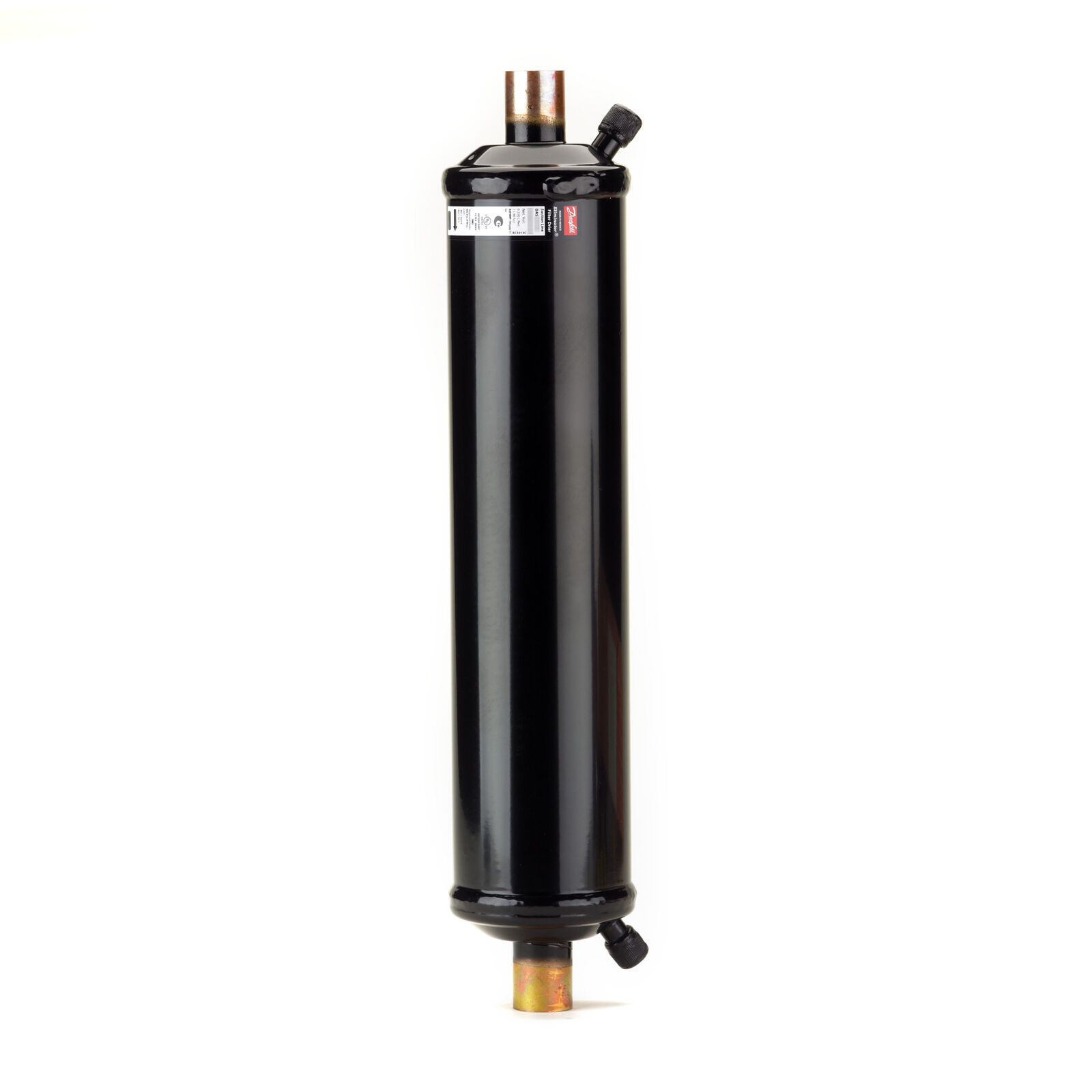

• Hermetic burn-out filter drier for fluorinated refrigerants.
• 70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
• 2 Schrader access valves to measure pressure drop across the drier.
• Max. working pressure: 35 bar.
• 120 mesh wire mesh for solid particle retention.
• Type: DAS 609SVV
• Weight: 2.45 Kg
• Acid capacity [g]: 36,50 g
• Acid capacity [oz]: 1,287 oz
• Approval: UL
• Connection material: COPPER
• Connection notes: Schraeder Inlet / Outlet
• Core size: 60 cu.in.
• Inlet connection size [in]: 1 1/8 in
• Inlet connection type: SOLDER, ODF
• Max. Working Pressure [bar]: 35,0 bar
• Max. Working Pressure [psig]: 500 psig
• Outlet connection size [in]: 1 1/8 in
• Outlet connection type: SOLDER, ODF
• Refrigerant(s): HCFC/HFC
• Temperature range [°C]: -40 to 70°C
• Temperature range [°F]: -40 to 160°F
