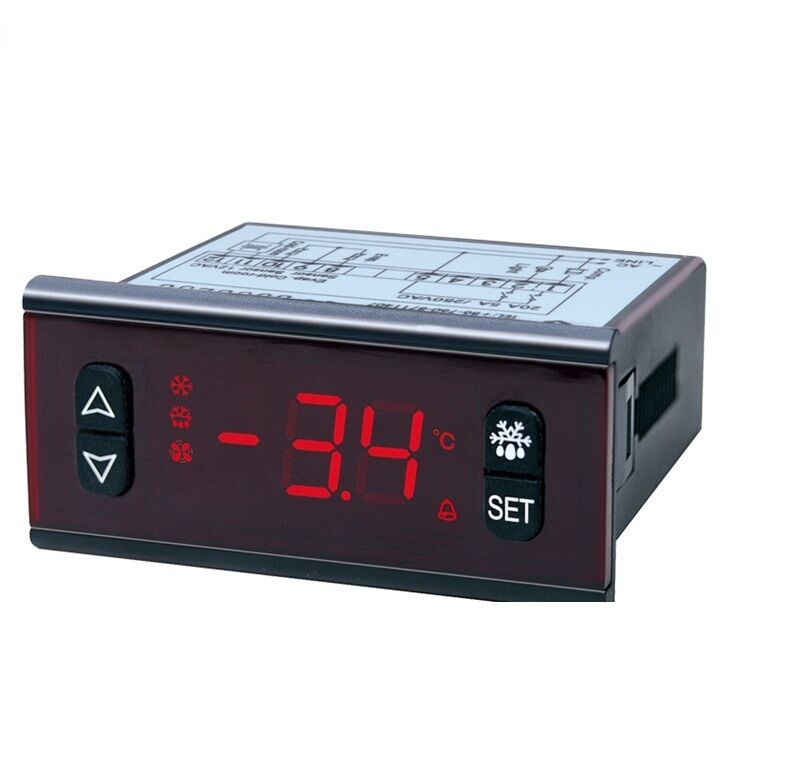

Title: ED-106W TEMPERATURE CONTROLLER

MPN: R026040

SKU Number: HTN_0001463

Notes:

Brand: SHANGFANG

Model: ED-106W

Features

It is a mini-sized and integrated intelligent controller

Temperature Control / Manual,automatic defrost

Evap.Fan Control / Defrost by electric heater,hot gas

Time/temp.Setting to end defrost / Value Storing / Self Testing

 Technical Data

Range of temperature displayed:－45～150℃  (－45~302℉)

Range of set temperature:－45～45℃  (－45~113℉)

Accuracy:±1.0℃(±1.8℉)

Temperature sensor: NTC, double sensors (for cold-room temp. & defrost control), 2m(L)

Compressor:  N.O. 16A/250VAC

Defrost:      N.O. 10A/250VAC

Evap.Fan:    N.O. 5A/250VAC

Dimension:77(Length)×35(Width)×60(Depth)mm

Mounting hole dimension:71(Length)×29(Width)mm


Parameters

Paramete

Function

Set range

Default

E1

Lower setpoint limit

-45℉/-45℃～Set temp.

-31℉/-35℃

E2

Higher setpoint limit

Set temp.～113℉/45℃

113℉/45℃

E3

Temp.hysteresis

0.2～36.0℉/0.1～20.0℃

7.2℉/4.0℃

E4

Comp.start delay time

0～10Min

2Min

E5

Offset on room temp.

－36.0～36.0℉/－20.0～20.0℃

0

E6

Offset on evap. temp

－36.0～36.0℉/－20.0～20.0℃

0

F0

Defrost function

0=Electric heater

1=Hot gas

0

F1

Max. Defrost duration

1～60Min

20Min

F2

Defrost interval time

           0～24Hr

6Hr

F3

Defrost termination temp.

32～86℉/0～30℃

46℉/8℃

F4

Display during defrost

0=Nomal display

1 = Last value before  defrost

0

F5

Fan operating function

0=Parallel with comp.

1 = Continuous running

      except defrost

0

F6

Dripping time

0～30Min

2

F7

Fan operating function

after defrost end

0=Temperature

1=Time

1

F8

Fan start -up delay

after defrost end

0～10Min

2

F9

Fan start temperature after

defrosting(evaporator)

－22～86℉

－30～30℃

41℉

5℃

C1

Temperature unit

℃=Celsius

℉=Fahrenheit

℃
