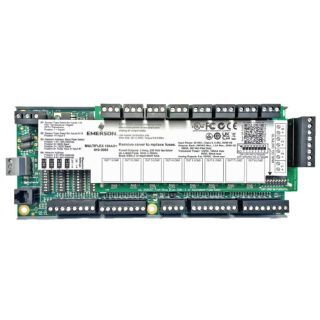

The MultiFlex line of distributed controllers provides a wide variety of input, output, and smart control solutions, all of which are based on a single universal hardware platform.
• Combination input and output board for CPC control systems
• Requires 24VAC power, 15VA
• Fitted with 16 inputs for analog or digital signals
• Fitted with 8 relay outputs
• Fitted with 4 analog outputs
• Mounts in
• Part Number: 810-3065
Specifications
• Relay Outputs8, rated for a maximum of 240V at 1.2A:
• Analog Outputs: 4 - maximum output current of 10mA
• Programmable inputs: 16 - analog (0-5V) or digital
• Power Requirememt: 24V, non-center tapped transformer delivering more than 15VA
Features
• Single universal hardware platform
• Combines inputs and outputs, saving time
• Reduces space requirements for I/O boards by up to 50%
• Mount using either standoffs or "snap track"
