DESCRIPTION

This replacement is compatible with ELITECH Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Elitech HLD-200 Refrigerant Halogen Leak

Brand: Elitech

MPN: R100013

SKU Number: HTN_0001511

Notes:

Description:

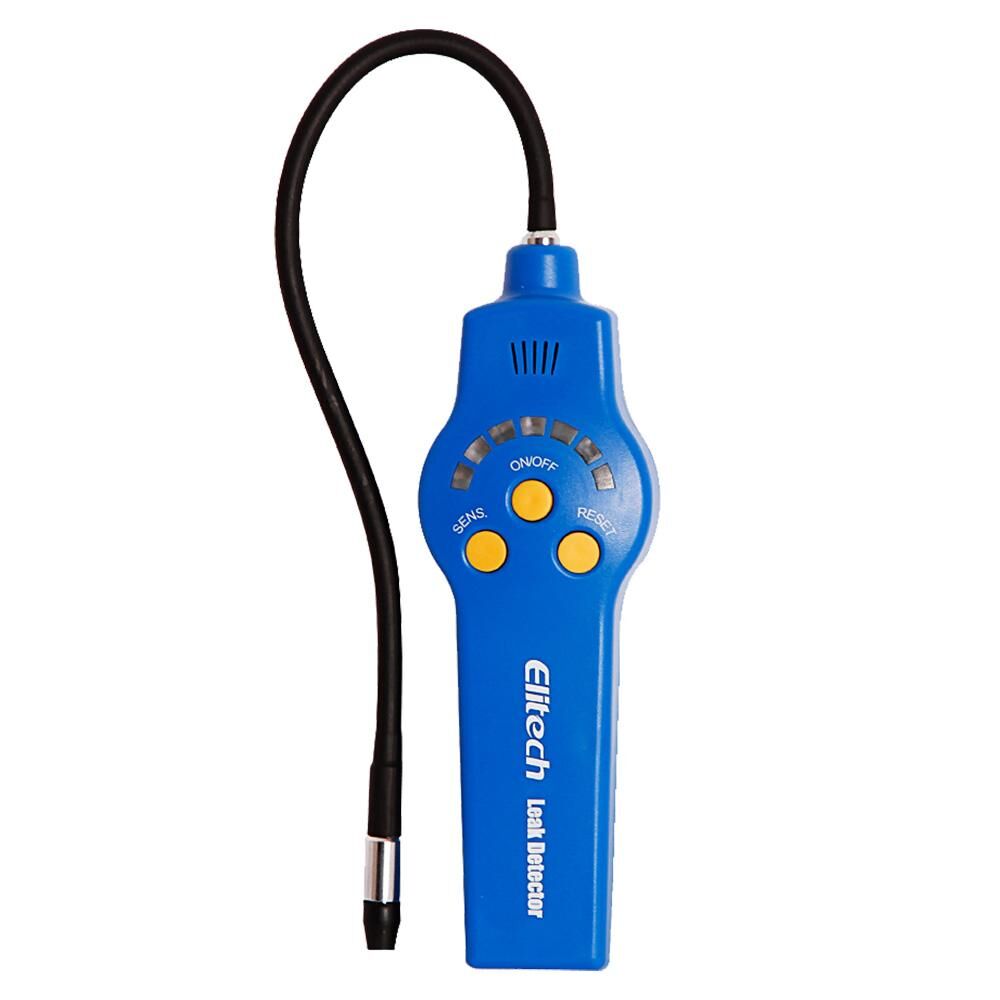

Elitech Halogen Leak Detector HLD-200+ is a new high-performance intelligent halogen leak detector. The new version designed with LED displaying is super convenient for easy carrying and operation.

Technical features:
â—†Adopt advanced, low power consumed, the eight-bit microprocessor controller
â—†Dual-color LED indicator lights with progressive and real-time display
â—†Sensitivity adjustable, seven-level alarming indicated by LED display
â—†Modular sensor, convenient for maintenance
â—†Seven levels audible and visual alarm
â—†Auto reset testing when the detector is turned on
â—†Battery voltage indication

Application:
1. The leak-detection invocation of freeze, refrigeration, and air-conditioner;
2. The leak-detection for air-conditioner in the car;
3. It will respond to all halogen gases(including Chlorine and Fluorine). Including:
CFCS e.g. R12, R11, R500, R503 etc;
HCFCs e.g. R22, R123, R124, R502 etc;
HFCS e.g. R134a, R404a. R125 etc;
And other mixtures, e.g. AZ-50, HP62, MP-39, etc.
4. Detect Ethylene Oxide gas leaks in hospital sterilizing equipment(it will detect the homogenate carrier gas).
5. Detect SF-6 in high voltage circuit breaks.
6. Detect most gases including Chlorine, Fluorine, and Bromine(halogen gas).
7. Detect cleaning agents used in dry cleaning applications such as perchloroethylene.
Detect halogen gases in fire-extinguishing system.

Specification and parameters:
Sensor type: negative corona sensor
Ultimate sensitivity: 3 g/yr
Warm-Up Time: 5s
Operating Environment:
Temperature: 0°C ～52 °C
Humidity: ＜95% RH (non-condensing)
Power supply: 2 AA alkaline batteries
Sensor tip life under continuous operation: more than 50 hours in normal detecting status。
Specification: 175 x 55 x 34 (mm)
Probe length: 305 mm
Probe life: about 30h
