DESCRIPTION

This replacement is compatible with ELITECH Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

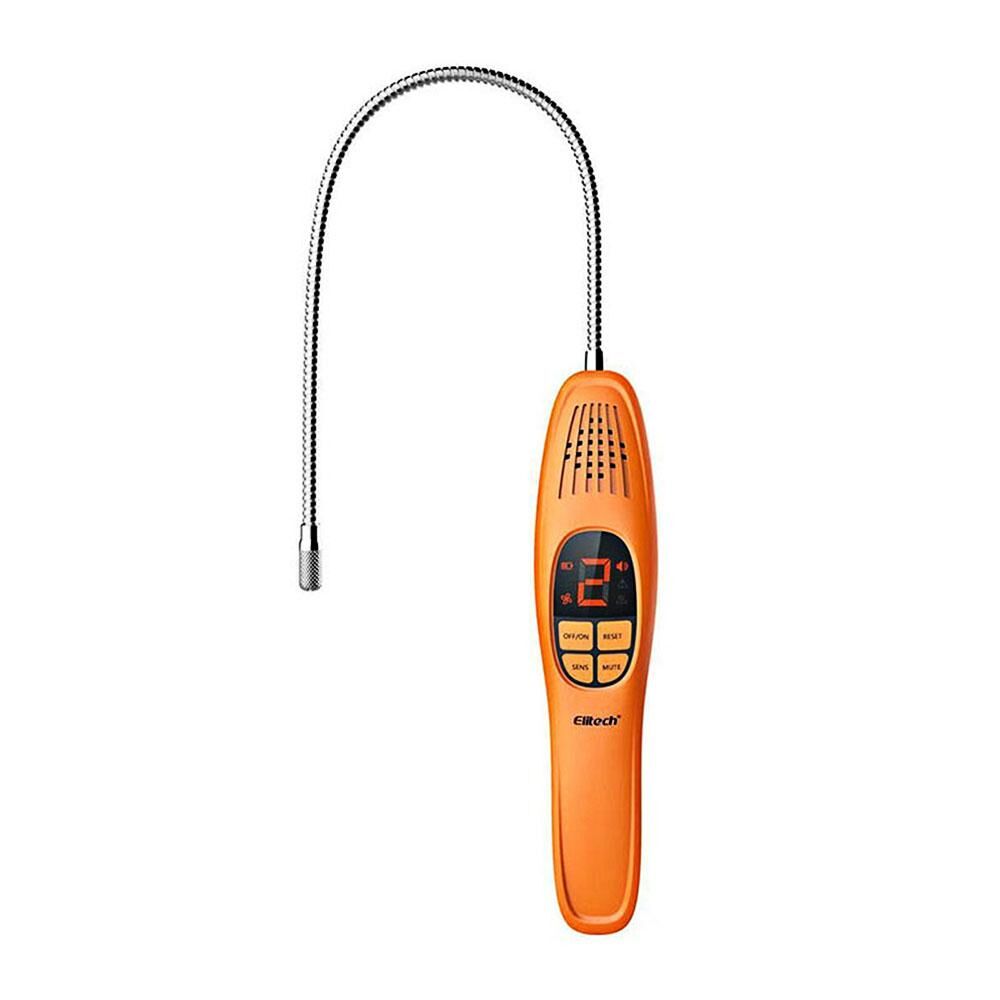

Title: Elitech LD-100 Refrigerant Leak Detector

Brand: Elitech

MPN: R100012

SKU Number: HTN_0001514

Notes:

Elitech LD-100 Refrigerant Leak Detector CFCs HCFCs HFCs Freon Gas Leak Sniffer Heated Diode Sensor With Long Probe

Description:
Elitech LD-100 Refrigerant Leak Detector offers great sensitivity and fastest response. This is achieved through the employment of a high sensitive heated diode sensor combined with a sophisticated microprocessor-controlled circuit. In addition to the supreme performance and functional advantages, it offers a uniquely designed shape to provide greater ease of use and comfort.
Main Features:
Sensor type: Heated Diode sensor
Minimum Sensitivity: 3g/yr
Response time:<3s
Warm up time:< the 60s
Ambient Environment:Temperature: 0℃～50℃; Humidity: < 80%RH(non condensing)
Display method: Highlight LED display
One-touch reset and six-level adjustable sensitivity
The true mechanical pump provides instant response and clearing
Battery level indication
Sensor failure indication
Three 1.5V AA high-energy battery
Unique shape design
Flexible stainless probe
Application of refrigerant:
It will respond to all halogenated (including Chlorine of Fluorine) refrigerants. This includes, but is not limited to:
CFCs e.g.R12,R11,R500,R503 etc…
HCFCs e.g.R22,R123,R124,R502 etc…
HFCs e.g.R134a,R404a,R410A,R407C etc…
CH R600a
Package:
1*Elitech LD100 with plastic box
1* Manual
Maintenance:
Proper maintenance is important and may extend the service life and improve the performance of your detector.
Warning: Turn the power off before clearing the shell of the sensor.
Keep the sensor tip clean: Use a cotton cloth or dry air to clean the shield on the sensor tip if it gets contaminated. If the sensor tip itself is contaminated, soak the tip in absolute alcohol for a few minutes, and then use compressed air to blow it dry, or dry it with a cloth.
Note: Never use strong solvents such as Gasoline, mineral oil, turpentine, these solvents may coat the sensor with a thin film and reduce the sensitivity of the detector and make the detector slow to respond to a leak. Put the detector and the sensor in a dry and clean place; Remove the batteries if the detector is not used for a long time.


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU HTN_0001514
Brand Elitech
