Max. operating temperature, valve body: 110°C / 230°F. Max. working pressure: 46 bar / 667 psig. Max. test pressure: 51 bar / 740 psig. TGE valves are designed for bi-flow operations.

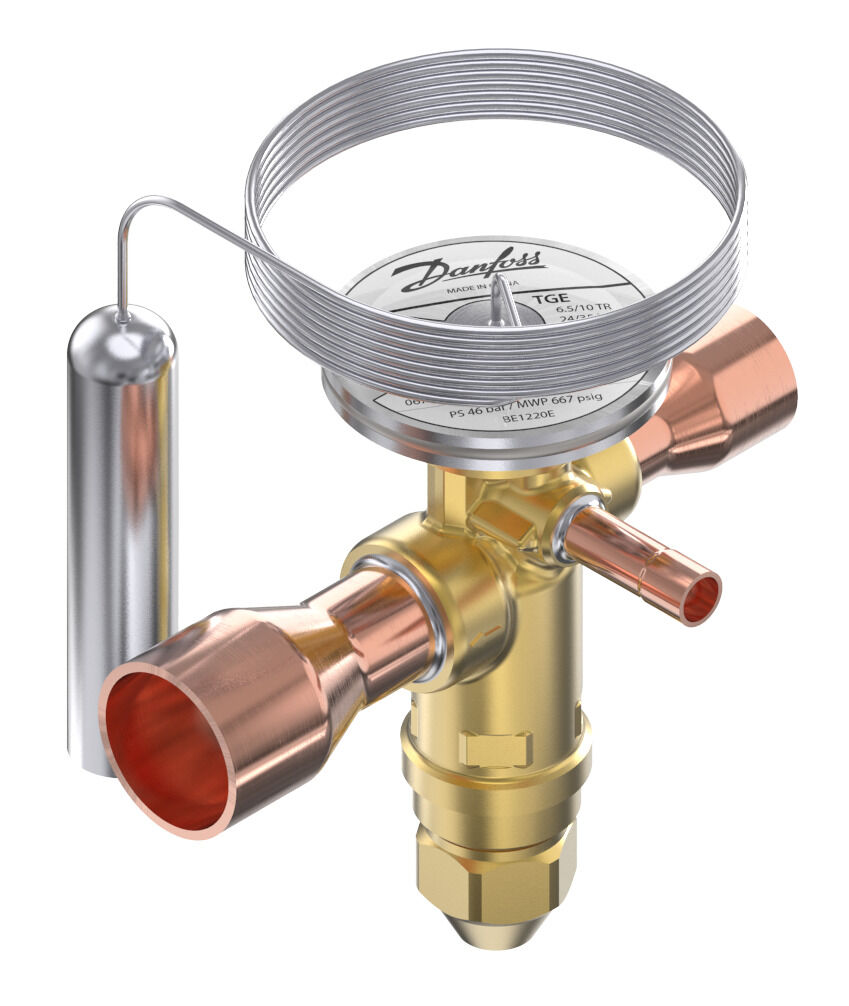

Type TGEN Weight 0.644 Kg Approval C UL US LISTED, EAC, LLC CDC TYSK Body material BRASS Capillary tube length [in] 59,0 in Capillary tube length [mm] 1.500 mm Conn. size [in] 7/8 in x 1 1/8 in x 1/4 in Direction Straightway EAN number 5702428169332 Equalization connection type SOLDER, ODF Identical product 067N5183 Inlet connection type SOLDER, ODF Max. Working Pressure [bar] 46,0 bar Max. Working Pressure [psig] 667 psig Orifice capacities [kW] 44,00 kW Orifice capacities [TR] 12,00 TR Orifice size 20 Outlet connection type SOLDER, ODF Pack format Multi pack Product description Thermostatic Expans. Valve Product Group Expansion valves Product name Thermostatic expansion valve Quantity per pack format 8 pc Refrigerant(s) R134a Static Superheat (SS) [°C] 4,0 Static Superheat (SS) [°F] 7,20 °F Temperature range [°C] -40 to 10 °C Temperature range [°F] -40 to 50 °F
