DESCRIPTION

This Expansion Valves replacement is compatible with DANFOSS Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Expansion Valves - Danfoss | Valve Tx Tdex19 R22 | PN: 068H8120

Brand: Danfoss

Type: Parts & Accessories → Flow Controls → Expansion Valves - Danfoss

MPN: 068H8120

SKU Number: KRB_0000599

Notes:

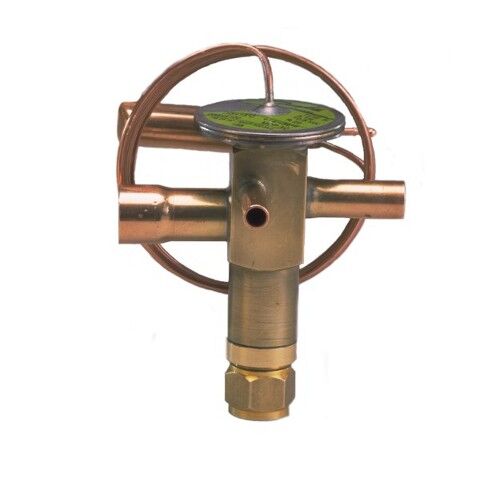

Danfoss TX Valve TDEX19 R22

TDE thermostatic expansion valves of the highest technical standard with dedicated design for use in applications such as: - air conditioning systems, heat pumps, water chillers, refrigerated containers and traditional refrigeration systems. TDE incorporate a bi-flow function.

Characteristics:
Value Type:  TDEX19
Weight:  0.797 Kg
Capillary tube length ft:  5,0 ft
Capillary tube length mm:  1.500 mm
Equalization connection type:  SOLDER, ODF
Equalization size in:  1/4 IN
Inlet connection type:  SOLDER, ODF
Inlet size in:  7/8 in
Max. Working Pressure ef:  28,0 bar
Max. Working Pressure:  400 psig
Orifice capacities kW:  66,50 kW
Orifice capacities TR:  19,00 TR
Orifice size:  50
Outlet connection type: SOLDER, ODF
Outlet size in:  1 1/8 in
Port design:  Single port
Product description:  Thermostatic Expans. Valve
Refrigerant(s):  R22
Static Superheat (SS):  4,0
Static Superheat (SS) °F:  7,20 °F
Temperature range °C:  -40 - 10 °C
Temperature range °F:  -40 - 50 °F
