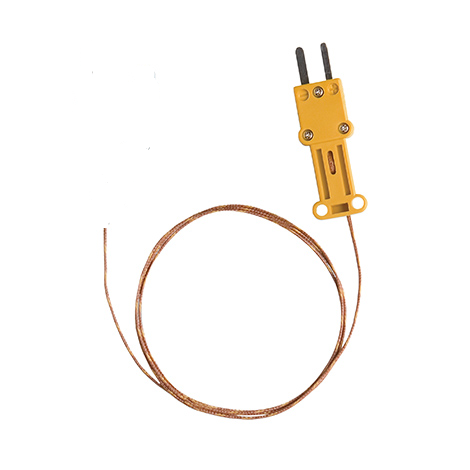

Fieldpiece ATBF1 Hi-temp K-Type thermocouple

FieldpieceATBF1 Hi-Temp Type-K thermocouple

Use on HVAC-R equipment for convenient placement and testing. The Fiberglass insulation withstands high temperatures up to 482°C for use on residential and commercial ovens, boilers, boilers or any other high temperature application.

You can use it to measure air cooled condensers when finding target superheat, evaporator filters, or hard to reach supply vents.

The ATBF1 can be used with any of our meters that measure temperature and any thermometer accepting a Type-K thermocouple. Great for meters with a 482°C range.

The wrap-tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab. No more tangles.

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

SPECIFICATIONS

Accuracy: +/- 2°C; ±0.5°C after field calibration, 0 to 80°C
Temperature range: -46 to 482°C
Thermocouple conductors: Type-K nickel chromium/nickel aluminum.
Probe insulation:

Calibration and atmosphere will affect maximum useful temperature in applications.

The fiberglass wire insulation is designed to withstand a maximum continuous use at 482°C
Plug: Type-K thermocouple male mini plug.
