TECHNICAL SPECS

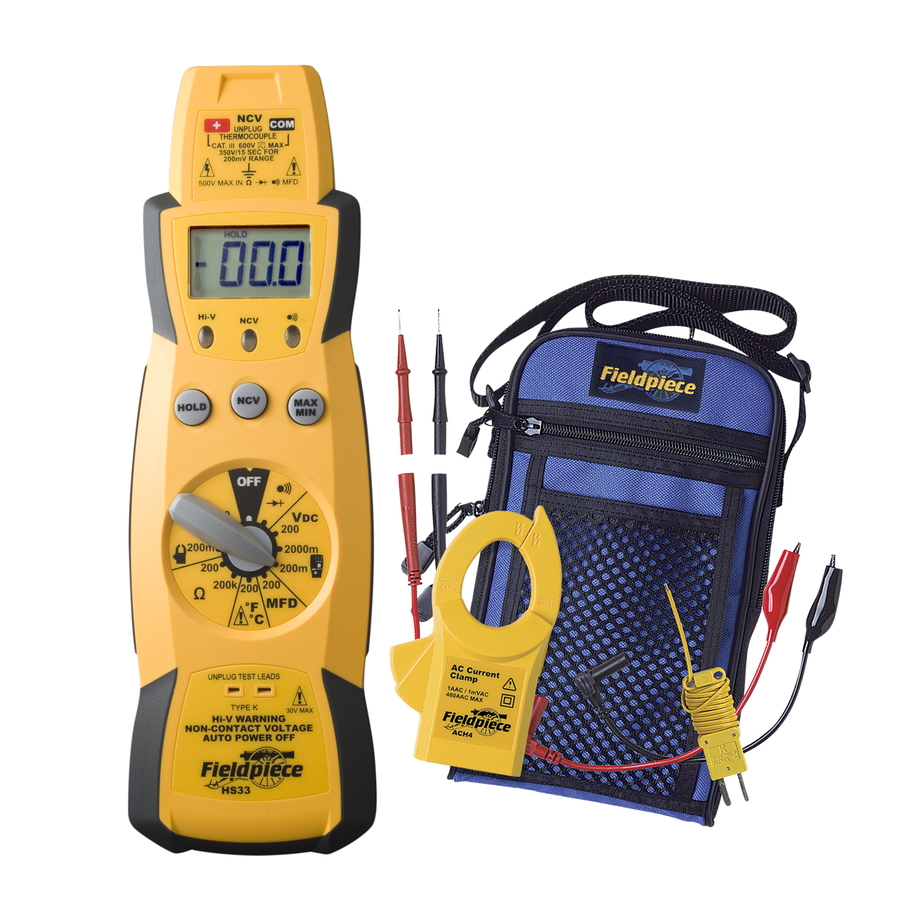

Title: Fieldpiece HS33: Stick MultiMeter Kit with 400AAC Clamp accessory

Brand: Fieldpiece

MPN: HS33

SKU Number: HTN_0002047

Notes:

Fieldpiece HS33: Stick MultiMeter Kit with 400AAC Clamp accessory

FieldpieceHS33 Expandable Stick Multimeter

Full Featured for HVAC & Refrigeration

• Partners with all accessory heads to do more with one meter
• Non-contact voltage - Built-in Volt Stick
• 400 AAC with included Clamp Accessory
• Convenient lead storage
• Safe one-handed testing

The HS33 Multimeter is a great entry level modular multimeter.  Like every Fieldpiece meter, it's packed with the features and functions HVACR technicians need to get the job done. The ergonomic shape fits firmly and naturally in your hand while testing.  The magnetic hanger, detachable test leads and alligator clip probe tips, allow you to perform tests hands-free. All Fieldpiece accessory heads slide directly on top of the HS33, so you can test a wider variety of parameters than what's in a single meter.

The modular expandability of the HS33 makes it so you don't have to buy additional expensive meters to preform additional measurements like air flow, amps, static pressure, vacuum, and many more.  There are approximately 15 additional accessory heads to choose from.

Features:

• Non-contact voltage alert
• Quick temperature compensation
• High voltage and continuity indicators
• MIN / MAX and Data HOLD
• Silicone leads with detachable probe tips
• Manual ranging

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED

• Expandable Manual Ranging Stick Multimeter for HVAC/R - HS33
• 400A Amp Clamp Accessory - ACH4
• Deluxe Silicone Test Leads - ADLS2
• Short Alligator Lead Extensions - ASA2
• Deluxe Meter Case - ANC1
• 9-Volt Battery (installed)
• Operator’s Manual

SPECIFICATIONS

• Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
• Overrange: "OL" mark indication.
• Auto power off: 60 minutes.
• Operating environment: 32 to 122°F (0 to 50°C) at <70% R.H.
• Storage temperature: -4 to 140°F (-20 to 60°C), 0 to 80% R.H. with battery removed.
• Accuracy: Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity.
• Temperature Coefficient: 0.1×(specified accuracy) per °F/°C. (32 to 64°F (0 to 18°C), 82 to 122°F (28 to 50°C)).
• Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
• Battery life: 300 hours typical with alkaline.
• Accessories: One pair test leads, one pair alligator clips, k-type thermocouple (HS33), 9V battery (installed), and operating instructions.
• Safety: UL, CE, Cat III 600V, UL3111, IEC/EN61010-1, C-Tick certified.

Diode test

• Test current: ∼1.0mA
• Accuracy: ±(1.5% rdg + 3 dgts)
• Open circuit volts: 3.0VDC typical
• Overload protection: 500VDC or AC rms

Continuity

• Audible indication: Less than 100Ω
• Response time: 100ms
• Green LED will be on continuously.
• Overload protection: 500VDC or AC rms

Capacitance

• Range: 200μF
• Resolution: 0.1μF
• Accuracy: ±(3% rdg + 5 dgts)
• Overload protection: 500VDC or AC rms

DC volts

• Ranges: 200mV, 2000mV, 20V(HS32), 200V
• Resolution: 0.1mV
• Accuracy: ±(0.5% rdg + 1 dgt)
• Input impedance: 560kΩ on V inputs, 10MΩ on
• mV input
• Overload protection: 600VDC or AC rms, 500VDC/350VAC rms 15 sec on 200mV range
• Transient protection: 6kV for 10μ sec

AC volts (50Hz - 500Hz)

• Ranges: 200mV, 200V, 600V
• Resolution: 0.1mV
• Accuracy: ±(1.2% rdg + 3 dgts) ±(2.0% rdg + 5 dgts) on 600V range
• Input impedance: 560kΩ on V input, 10MΩ on mV input
• Overload protection: 600V DC or AC rms
• Transient protection: 6kV for 10μ sec

Resistance

• Ranges: 200Ω, 200kΩ
• Resolution: 0.1Ω
• Accuracy: ±(1.0% rdg + 4 dgts)
• Open circuit volts: 0.3VDC typical, (3.0VDC on
• 200Ω range)
• Overload protection: 500VDC or AC rms

Temperature (HS33)

• Range: -30 to 200°F (-34 to 93°C)
• Resolution: 0.1°F/°C
• Accuracy: ±1°F, 32 to 120°F (0 to 48°C),
• ±1% + 1.5°F, -4 to 200°F (-20 to 93°C),
• ±2% + 3°F, -30 to -4°F (-34 to -20°C).
• Sensor type: K-type thermocouple
• Overload protection: 60 VDC or 30 VAC rms
