DESCRIPTION

This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Fieldpiece JL3KR4: Job Link Wireless Charge Test Bluetooth Probe Kit

Brand: Fieldpiece

MPN: JL3KR4

SKU Number: HTN_0002138

Notes:

FieldpieceJL3KR4 - Refrigerant Charge Test Kit

Superior distance with +300 metre connectivity!

That means you can see what your Air Handler or Evaporator is doing while your at the condensing unit .... Perfect for tuning your TX Valve ....

Use it for checking Superheat, Sub-Cooling, System pressures & pipe temps.

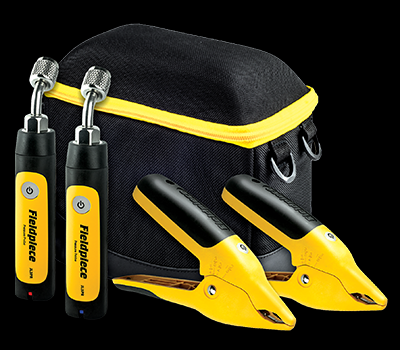

    This kit consists of

    • 2 x Pressure Probes for Discharge & Suction Pressure
    • 2 x Pipe clamps for liquid line subcooling & suction line Superheat
    • Contained in a quick access padded case.
    • All measurements can be sent up to +300 metres away directly to your mobile device with the Job Link™ app.

    Logging is now activated..

    Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system. To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe..... the Saturation Temperatures will show for your readings. Meld the table cells from your JL3PC Pipe Clamp Probe Log... either Suction or Liquid line & your superheat or subcooling values will be presented.

    Use the JL3PC to test your delta T. across the filter drier.... Temperature differences over 1.0 degrees C need to be monitored for loss of system efficiency.

    ​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

    WHAT'S INCLUDED

    • 2 x JL3PC Job Link Premium Pipe Clamp Probes
    • 2 x JL3PR Job Link Pressure Probes
    • ANC18 Protective Case
    • 2 x AAA Batteries Per Probe (8 Total)

    SPECIFICATIONS

    Wireless Range:    +300 metres
    Wireless Frequency:    2.4 GHz
    Battery:    2 x AAA (included)
    Battery Life:    150 hrs typical alkaline
    Auto Power Off (APO):    2 hrs (can be disabled)
    Minimum Device Requirement:    BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0

    Job Link™ Pressure Probe - JL3PR
    Connector Type:    45° Standard 1/4” NPT female flare
    Best Accuracy:    ±1 psig (±7 kPa)
    Measurement Range:    0 to 580 psig (0 to 4000 kPa)
    Maximum Overload:    800 psig (5500 kPa)
    Water Resistant:    Designed to IP55

    SKUJL3KR4
    BrandFieldpiece
    Shipping Weight2.5000kg
    Shipping Width0.300m
    Shipping Height0.200m
    Shipping Length0.300m
    Shipping Cubic0.018000000m3
    Unit Of Measureea
    Assembled Length0.300m
    Assembled Height0.200m
    Assembled Width0.300m
