DESCRIPTION

This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

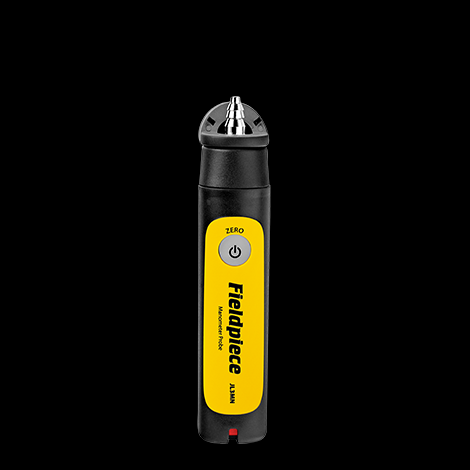

Title: Fieldpiece JL3MN : Manometer : Single Port & BlueTooth

Brand: Fieldpiece

MPN: JL3MN

SKU Number: HTN_0002140

Notes:

FieldpieceJL3MN - Job Link Bluetooth Manometer

Shorter hoses needed. Fewer tangles.

You’re free to work the way you want.

  • Use for static Air Pressure, LPG or Nat. Gas and Burner draft pressure
  • 300 metres Wireless range
  • Precise magnetic placement makes it more convenient with shorter hoses.
  • Record up to eight readings at once in Job Link App



Totally untethered.

Part of the Job Link® System, the JL3MN Manometer lets you work the way you want to. Its strong magnet allows you to place your probe directly on a test port and its short tubes offer tangle-free work.

Versatile and durable.

With a strong metal tip that‘s used with different sizes of tubing, the JL3MN is a reliable, accurate and durable measurement tool. It’s great for taking a single gas pressure measurement and works wirelessly with the Job Link App.

(JL3MN)

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

What’s Included:

  • (1) JL3MN Manometer Probe
  • (1) ASP2 Static Pressure Probe and Hose
  • (1) Brass Screw Fitting with Extra Hose
  • (1) Slide Gas Adapter
  • (2) AAA Batteries

Specifications

  • Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0
  • Compatible Media: Dry, non-corrosive gas
  • Pressure Port: Tube connector for flexible tubing (4.5 to 8mm ID)
  • Units of Measure: inWC, mmWC, mbar, psi, Pa
  • Accuracy and Ranges:
    inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00);
    mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0);
    mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00);
    psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165);
    Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
  • Maximum Overload Pressure: 321.08 inWC (11.6 psi; 80.0 kPa)
  • Battery Type: 2 x AAA
  • Battery Life: 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed
  • Auto Power Off: 2 hours (APO can be disabled)
  • Wireless Range: 305 metres line of sight – obstructions affect distance
  • Radio Frequency: 2.4 GHz
  • Operating Environment: -10°F to 122°F (-23°C to 50°C) at <75% RH
  • Storage Temperature: -10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed)
  • Temperature Coefficient: 0.1 x (specified accuracy) per 1.8°F (-10°F to 64°F, 82°F to 122°F), per 1°C (-23°C to 18°C, 28°C to 50°C)
SKUJL3MN
BrandFieldpiece
Shipping Weight0.7500kg
Shipping Width0.150m
Shipping Height0.050m
Shipping Length0.250m
Shipping Cubic0.001875000m3
Unit Of Measureea
Assembled Length0.250m
Assembled Height0.120m
Assembled Width0.150m
