This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

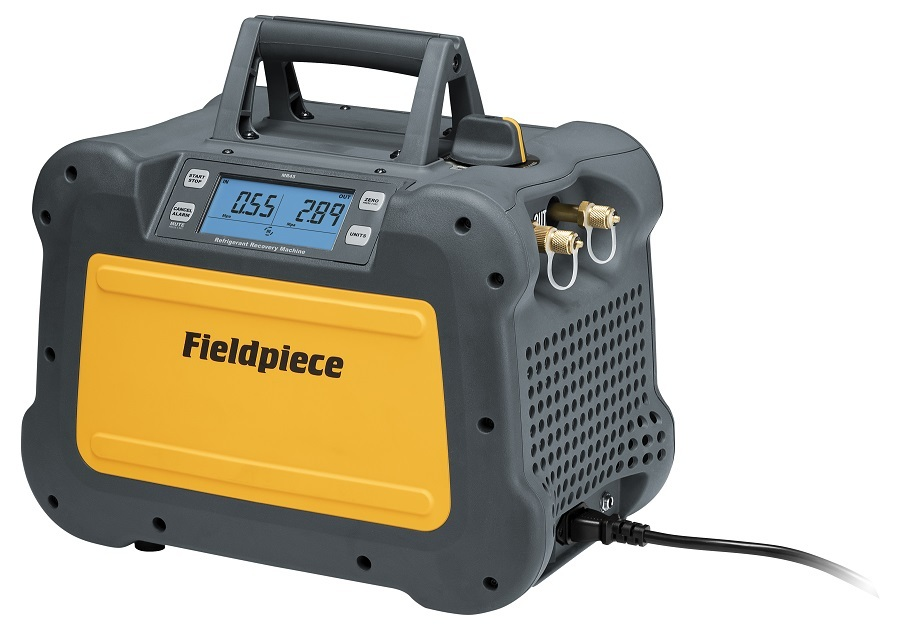

Title: Fieldpiece MR45INT Refrigerant Recovery Unit for Air Conditioning/Refrigeration

Brand: Fieldpiece

MPN: MR45INT

SKU Number: HTN_0002764

Notes:

FieldpieceMR45INT Refrigerant Recovery Unit designed for Air Conditioning & Refrigeration

MR45INT Refrigerant Recovery Machine

With a powerful 1HP motor and super-sized condenser, this refrigerant Recovery Unit excels on longer and hotter jobs.

The easy-to-read display, lightweight (10Kgs), straight hose connection ports, and single dial make this machine user-friendly while being tough enough for everyday use in Air Conditioning & Refrigeration applications.

                                                      View the Comparison Chart

Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Pump.

• Dual cylinder compressor with long life and low friction with ceramic lined cylinders
• Auto Shut Off when -10 Kpa reached
• Protected from voltage drop (runs as low as 190 VAC)
• Single dial self purge
• Twice the RPMs (3,000) and twice the horsepower (1HP - 0.745kW) with DC Motor
• Extra large condenser cools faster, especially on hot days
• Light Weight at only 10 Kgs
• Water & Rain resistant
• Easy access ports
• Easy hose connections and built in power cord storage
• Large backlit display with status messages
• UL Verified to Section 608 of EPA Clean Air Act
• UL Verified to AHRI Standard 740
• Suitable for use with A2L Class Refrigerants [ R32, R1234YF ... ]
• Also can be used for transferring SF6 [sulfur hexafluoride] a non-flamable gas used in electrical compomponents.

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED

• MR45INT Refrigerant Recovery Machine
• 10 Extra Mesh Screens for Input Port
• 3 Extra O-ring for Input Port
• Operator’s Manual

Specifications

• Display:  2 x 10000 count LCD with status messages
• Backlight:  Blue color
• Measurement rate:  3.3 times per second, nominal
• Input Port Pressure Sensor Range:  -30” Hg to 600 psig
• Output Port Pressure Sensor Range:  -30” Hg to 600 psig
• High Pressure Cutoff:  558 psig, nominal
• Resolution and Units:  1 psig (1” Hg), 0.05 bar (2 cmHg),  0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
• Pressure Sensor Accuracy:  ± 0.5 “ Hg (Vacuum)  ± (0.6% of reading +2 psig)
• Final Recovery Vacuum:  14.9” Hg
• Compressor:  Twin cylinder reciprocating (oil-less)
• DC Motor:  1 HP (variable smart speed)
• Power Source:  220 - 240 VAC @ 50 Hz 1 phase
• Max Current Draw: 7.0 Amp
• Valve:  Single dual-route ball valve
• Input Port Filtration:  9 mm mesh screen, stainless
• Dimensions:  376 mm x 250 mm x 344 mm
• Weight:  10 Kgs
• Operating Environment:  32°F to 122°F (0°C to 50°C)
• Storage Environment:  -4°F to 140°F (-20°C to 60°C)
• Approved Refrigerants:  R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509. ​
