DESCRIPTION

This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

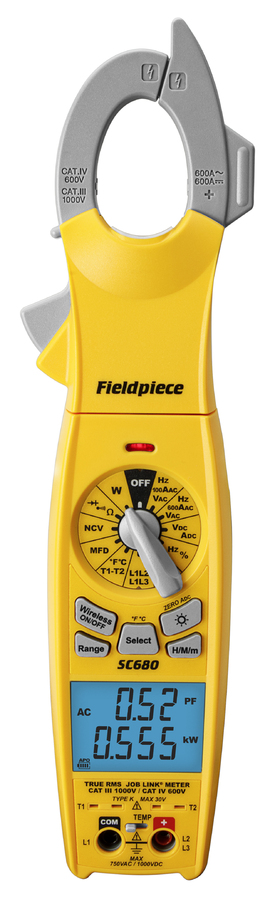

Title: Fieldpiece SC680INT : Trms AC/DC Amp Clamp Meter with Power function

Brand: Fieldpiece

MPN: SC680INT

SKU Number: HTN_0003117

Notes:

Fieldpiece  SC680INT  TRMS CAT1V Clamp Meter



Built for HVAC-R

  • Verify 3-phase rotation with just two leads.
  • Take more accurate VAC and AAC readings with True RMS.
  • Filter out noise to get true voltage and frequency with low pass filter.
  • Measures Power (kW) for system efficiency
  • Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings
  • DC Amps with this meter
  • Indicates 3-phase rotation with two leads
  • Measures start/run capacitors

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

What's Included

  • SC680INT Bluetooth Clamp Meter
  • ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
  • ASA2 Short Leads with Alligator Clips
  • 2 ATB1 Type K Thermocouples
  • 2 Velcro Straps
  • 9V Alkaline Battery (not installed)
  • ANC7 Padded Case
  • Operator's Manual

Specifications  [ Get the full Operators Manual ]

  • Measure up to 600 Amps AC & DC
  • Display: 10000 count dual display
  • Backlight: 5 minute duration with auto-off, blue color
  • Overrange: “OL” or “-OL” is displayed
  • Measurement rate: 3.3 times per second, nominal Zero: Automatic
  • Operating environment: 32°F to 122°F (0°C to 50°C) at <70%RH
  • Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with battery removed)
  • Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
  • Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C (82°F to 122°F)]
  • APO (Auto Power Off): Approx. 30 minutes
  • Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
  • Battery life: 100 hours typical alkaline (No wireless, no backlight)
  • Low battery indication: Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
  • Dimensions: 247mm(H) x 79mm(W) x 48mm(D)
  • Weight: Approx. 345g including battery
  • Altitude: Up to 6562 ft (2000m)
  • Overload protection: 1000VDC or 750VAC rms unless otherwise stated
  • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above. Included test leads are gold-plated and have removable safety caps.
SKUSC680INT
Model #SC480INT
BrandFieldpiece
Shipping Weight1.2000kg
Shipping Width0.150m
Shipping Height0.150m
Shipping Length0.400m
Shipping Cubic0.009000000m3
Unit Of Measureea
Assembled Length0.400m
Assembled Height0.150m
Assembled Width0.150m
