DESCRIPTION

This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Fieldpiece SDMN5: Dual Port Manometer for Static Air & LPG Pressure

Brand: Fieldpiece

MPN: SDMN5

SKU Number: HTN_0003125

Notes:

FieldpieceSDMN5: Dual Port Manometer for Static Air & LPG Pressure

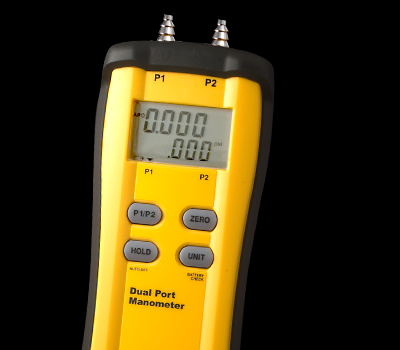

SDMN5 Dual-Port Manometer

Use for - Static Pressure, Differential Pressure, LPG & Natural Gas Pressure

  • Measures duct pressures to balance air flow
  • Suitable for Static Air Pressure, LPG & CNG - Natural Gas Measurements
  • Resolution down to 0.01" WC for static pressure measurement
  • -60.0"WC to 60.0"WC  & -150.0 to 150.0 mBar, mmWC or PSI selectable ranges

The SDMN5 is a portable dual port manometer for use with measuring gas pressure, static pressure and pressure differential across Evaporator Coils, Condenser Coils or Filter Banks.

The SDMN5 includes a zero adjust and the Auto Power-Off (APO) function to conserve battery life. It also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar.

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED

  • Dual-Port Manometer SDMN5
  • 2 – 3/16” Tubes with Brass Fittings
  • 2 – 3/16” to 5/16” Tube Adapters - RMA316
  • 9V Battery (installed)
  • Operator’s Manual
SKUSDMN5
BrandFieldpiece
Shipping Weight1.5000kg
Shipping Width0.250m
Shipping Height0.120m
Shipping Length0.350m
Shipping Cubic0.010500000m3
Unit Of Measureea
Assembled Length0.350m
Assembled Height0.120m
Assembled Width0.250m


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003125
Brand Fieldpiece
