DESCRIPTION

This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Fieldpiece SDMN6: Manometer with Air Pump for Pressure Switch Calibration

Brand: Fieldpiece

MPN: SDMN6

SKU Number: HTN_0003126

Notes:

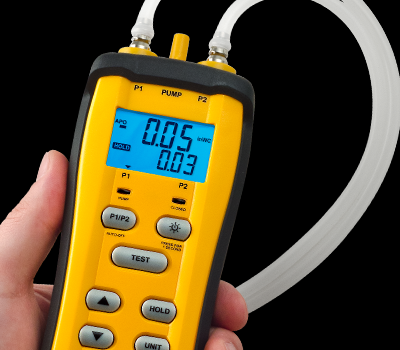

FieldpieceSDMN6 - Dual-Port Manometer

With a built-in Calibrator for Pressure Switches !

Use for - Static Pressure, Differential Pressure, LPG & Natural Gas Pressure -

  • Measures duct pressures to balance air flow
  • Suitable for Static Air Pressure, LPG & Natural Gas measurements
  • Resolution down to 0.01" WC for static pressure measurement
  • -60.0"WC to 60.0"WC  & -150.0 to 150.0 mBar, mmWC or PSI selectable ranges

The SDMN6 is a portable dual port manometer for use with measuring gas pressure, static pressure and pressure differential across Evaporator Coils, Condenser Coils or Filter Banks. The Built-In calibrator for pressure swithces makes it an ideal serive tool for ensuring stable operation of burners, fans and alarms in many system types.

The SDMN6 includes a zero adjust and the Auto Power-Off (APO) function to conserve battery life. It also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar.

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED

  • Dual-Port Manometer SDMN6
  • Pair of ASP2 90 Degree magnetic Probes
  • 2 – 3/16” Tubes with Brass Fittings
  • 2 – 3/16” to 5/16” Tube Adapters - RMA316
  • ANC1 - Four Pocket Carrying Case
  • Quick Connect Leads
  • Hoses and Y-splitter
  • Hoses with Brass Screw Fittings
  • 9V Battery (installed)
  • Operator’s Manual
SKUSDMN6
BrandFieldpiece
Shipping Weight2.0000kg
Shipping Width0.200m
Shipping Height0.150m
Shipping Length0.350m
Shipping Cubic0.010500000m3
Unit Of Measureea
Assembled Length0.350m
Assembled Height0.150m
Assembled Width0.200m
