DESCRIPTION

This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

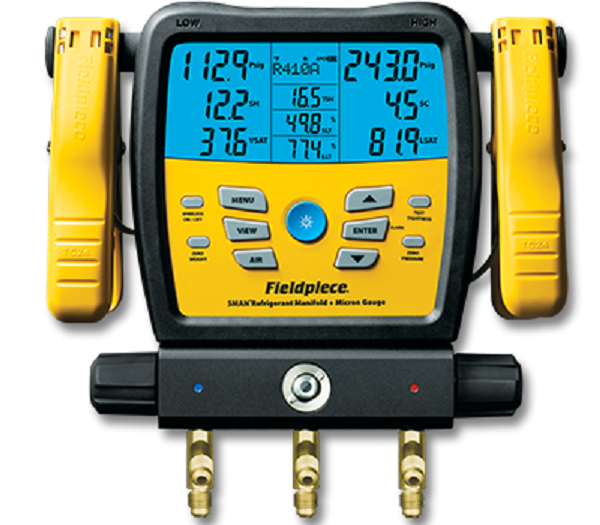

Title: Fieldpiece SM380VINT 2Valve Digital Manifold with built in Data Log/Vacuum Gauge

Brand: Fieldpiece

MPN: SM380VINT

SKU Number: HTN_0003205

Notes:

FieldpieceSM380VINT 2-Valve Digital Manifold with built in Data Logging & Vacuum Gauge

Data Logging

  • Stores up to 9 jobs internally
  • Easy download via USB port
  • Displays % free storage space before logging begins
  • Logs up to 7 days  (168 continuous hours)

Tightness Test built in feature

•  Check for leaks after repairs or installations
•  View pressure differential over time
•  Timer tracks duration of test
•  Temperature compensated with SL temp to avoid false positives

Customisable Menu

•  Adjust auto power off duration
•  Adjust back light duration
•  Using the built-In micron gauge - set high and low vacuum alarms
•  Select each unit of measurement individually

Receives Wireless Measurements

Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC & JL3LC), and SRS3 or SR47 Refrigerant Scale.  Place pipe clamps in the perfect location.

Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED

  • SM380vINT
  • (2) TC24 Wired Type-K Pipe Clamp thermocouple
  • (1) ATA1 Type-K Bead Thermocouple with clip
  • (1) ANC11 Padded Drawstring Case

Specifications

  • Display: LCD (5 inches diagonal)
  • Backlight: Blue (adjustable duration)
  • Low Battery Indication: is displayed when the battery voltage drops below the operating level.
  • Over Range Display: OL for pressure, – – – – for temperature
  • Auto Power Off: 30 minutes of inactivity (adjustable)
  • Maximum Manifold Pressure: 800 Psig (5500 kPa)
  • Battery Type: 6 x AA alkaline
  • Battery Life: 350 hours typical (without vacuum, backlight, and wireless)
  • Radio Frequency: 2.4 GHz
  • Wireless Range: 305 meters line of sight – distance decreases through obstructions
  • Data Port: Micro USB (for extracting data logs or updating firmware)
  • Operating Environment: 0°C to 50°C at <75% RH
  • Storage Environment: -20°C to 60°C at <80% RH (with battery removed)
  • Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C)
  • Weight: 1.83 kg
  • Water Resistant: Designed to IP54
SKUSM380VINT
Model #SM380VINT
BrandFieldpiece
Shipping Weight4.0000kg
Shipping Width0.300m
Shipping Height0.150m
Shipping Length0.400m
Shipping Cubic0.018000000m3
Unit Of Measureea
Assembled Length0.400m
Assembled Height0.150m
Assembled Width0.300m
