DESCRIPTION

This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

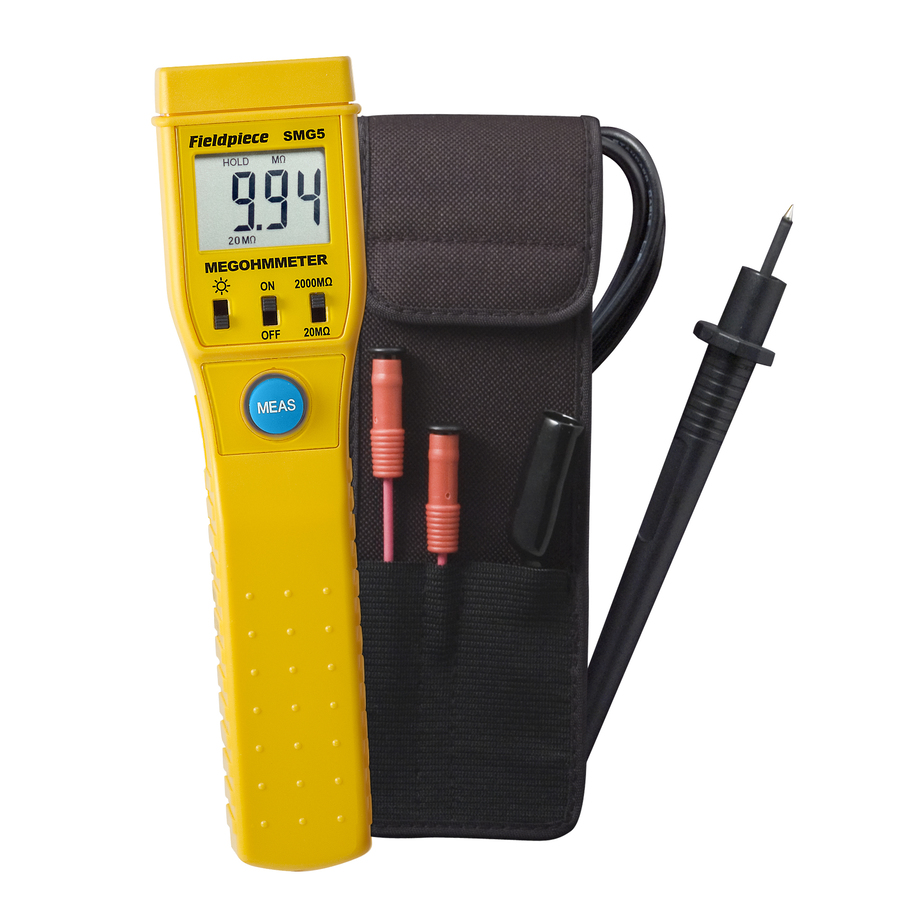

Title: Fieldpiece SMG5: Megohm Meter with Leads, Clips & Case

Brand: Fieldpiece

MPN: SMG5

SKU Number: HTN_0003207

Notes:

FieldpieceSMG5: Megohm Meter with Leads, Clips & Case

SMG5 - Fieldpiece Digital Megohm Meter.

The SMG5 is a compact standalone meter designed for checking HVAC-R compressor motor insulation.

The SMG5 provides a 1000V voltage source, monitors current, and displays the resistance between the test points.

Maximum current output is <1mA. It can be used to determine the condition of insulation from winding to ground in a motor, compressor, or transformer.

  • Predict compressor failure
  • 1000VDC stresses insulation to measure up to 2000Mohms
  • Backlit LCD display
  • Auto-off to extend battery life
  • Case, alligator clip, leads with removable tips

(SMG5)

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

Whats Included

  • Megohm Meter – SMG5
  • (2) Probe Tips
  • (1) Ground Lead with Detachable Tip
  • (1) Alligator Probe Tip
  • Carrying Case
  • (4) AAA Batteries (installed)
  • Operator’s Manual

Specifications
Display: 3 1/2 digit liquid crystal display (LCD) with maximum reading of 1999
Overrange: (OL) or (-OL) is displayed
Low battery indication: The ” ” is displayed when the battery voltage drops below the operating level
Measurement rate: 2.5 times per second, nominal
Operating Environment: 0°C to 40°C at < 70% relative humidity.
Storage Temperature: -20°C to 60°C, 0 to 80% R.H. with battery removed from meter
Auto power off: 15 seconds approx
Standby consume current: <10μA
Battery: 4 pcs 1.5V (AAA size) UM-4 R03.
Battery Life: 4 hours (continuity) typical with alkaline battery (@20ΜΩ range test 10ΜΩ resistor).

SKUSMG5
BrandFieldpiece
Shipping Weight0.9000kg
Shipping Width0.120m
Shipping Height0.120m
Shipping Length0.300m
Shipping Cubic0.004320000m3
Unit Of Measureea
Assembled Length0.300m
Assembled Height0.120m
Assembled Width0.120m
