TECHNICAL SPECS

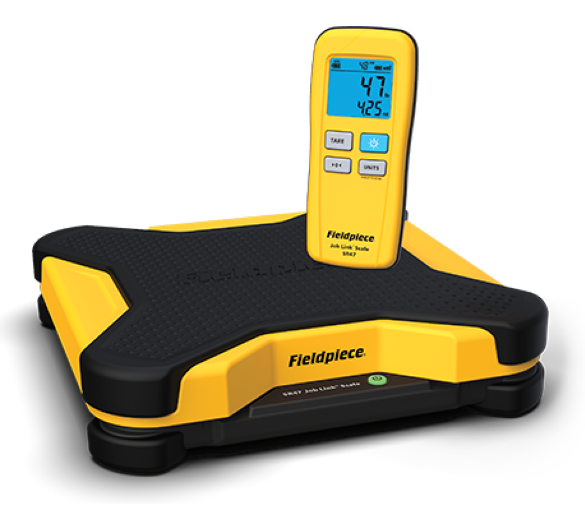

Title: Fieldpiece SR47: 114Kg Refrigerant Weighing Scales - Job Link Compatible

Brand: Fieldpiece

MPN: SR47

SKU Number: HTN_0003276

Notes:

Fieldpiece  SR47 Refrigerant Scales Rugged, Wireless & Water Resistant

Bluetooth active for direct connection with our Job Link App & directly on your Manifold display

The SR47 communicates seamlessly with the Fieldpiece Job Link® System App or SM380VINT or SM480VINT, so you’ll be able to read refrigerant levels anywhere on the job site while easily documenting and saving customer data.

Its 114kg maximum load capacity accommodates any charge or recovery requirement, while its oversized 13-inch platform design with unique integrated bumpers is engineered to fit larger refrigerant bottles. It also features the best platform battery life in the industry with a long life of up to 200+ hours, which minimizes jobsite downtime by removing the need to change or recharge batteries.

The wireless remote stores right inside the scale and boasts an improved rubber gasket grip design, shorter length, larger display and a redesigned magnet, plus a hefty 80-hour battery life.

The SR47 compact size and lightweight @ 3.1kg portability makes it easy to carry up a ladder and wet weather is no barrier to performance – SR47 is weather resistant with an IP64 rating for the remote and an IP54 rating for the platform for use in wet conditions.

Main Features

• 325mm platform to fit larger bottles and integrated bumpers for increased durability
• Strong enough to hold a maximum load of 115 Kgs
• Wireless remote control with LED backlight –
  can be stored inside the scale, and makes viewing data easy
• Industry-leading accuracy: ±0.03%rdg + 0.25 oz
• Lightweight. Total weight of scale and remote is 3.2 Kg
• Water resistance can handle any job site
• Connects to the Job Link® System App with 1000′ wireless
  range and Digital Manifolds SM480VINT & SM380VINT
• Platform battery lasts 200+ hours – it can literally work all week if needed
• Easy-to-use raised power button now located at base of scale
• A2L compatible

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED

• Wireless Refrigerant Scale - SR47
• Platform and Remote
• Rugged Nylon Case with Carrying Strap
• Standard 9-volt Battery (remote) Installed
• 6 x AA Batteries (platform) Installed
• Operator’s Manual

Specifications

• Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity
• Over range: “OL” is displayed
• Maximum load: 252.00 lbs (114.00 kg)
• Max tank base diameter: 13 inches (33 cm)
• Auto power off: 30 minutes of inactivity (no change in weight or buttons pressed), (APO can be disabled)
• Backlight: Blue, turns off in 2 minutes if no buttons are pressed
• Accuracy: ±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg) ±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
• Resolution and units: lb oz (0.25 oz), lb (0.1 lb), oz (0.3 oz), kg g (10 g), kg (0.1 kg), g (10 g)
• Temperature coefficient: 0.1 x (specified accuracy) per °F
• Wireless range: 1000 feet (305 meters) line of sight.
• Radio frequency: 2.4 GHz
• Battery type: Remote display: 9V, NEDA 1604, JIS 006P, IEC 6F22 Platform: 6 x AA, NEDA 15A, JIS UM3, IEC LR6
• Battery life: Remote display: 80 hours typical alkaline (backlight off) Platform: 200 hours typical alkaline
• Operating environment: 32°F to 122°F (0°C to 50°C) at <75% RH
• Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
• Weight: Platform with battery ~7 lbs (3190 g), Remote with battery 0.49 lbs (220 g)
• Water resistant: IP54 (Platform), IP64 (Remote)
