DESCRIPTION

This Hinge Part(s) replacement is compatible with FISHER & PAYKEL Ovens & Stoves.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Fisher & Paykel Oven Door Hinge K19 3P FG-OB60 - 561551 | Suits: OB60SC11DEPX1 (81504-B) OB60SC11DEPX1 (81504-A) OB60SC11DEPX1 (81113-C)

Brand: Fisher & Paykel

Type: Hinge Part(s)

Suitable For: Cooktop Oven Stove

Compatible Brands: Fisher & Paykel

Compatible Models:
✔ OB60SC7CEPX2 (81741-A)
✔ OB60SC7CEPX2 (81741-B)
✔ OB60SC7CEPX1 (81490-B)
✔ OB60SC7CEW2 (81743-A)
✔ OB60SC7CEX2 (81742-A)
✔ OB60SC7CEPX1 (81490-A)
✔ OB60SC7CEW1 (81494-A)
✔ OB60SC7CEX1 (81485-A)
✔ OB60SC7LEX1 (81491-A)
✔ OB60SC7VEW1 (81506-A)
✔ OB60SC7VEX1 (81505-A)
✔ OB60SC7CEPX1 (80975-C)
✔ OB60SC7VEW1 (81115-B)
✔ OB60SC7VEX1 (81114-B)
✔ OB60SC7CEPX1 (80975-B)
✔ OB60SC7CEW1 (80979-B)
✔ OB60SC7CEX1 (80948-B)
✔ OB60SC7LEX1 (80976-B)
✔ OB60SC7VEW1 (81115-A)
✔ OB60SC7VEX1 (81114-A)
✔ OB60SC7CEPX1 (80975-A)
✔ OB60SC7CEW1 (80979-A) OB60SC7CEX1 (80948-A)
✔ OB60SC7LEX1 FP AA 80976-A OB60SC5CEPX2 (81747-A) OB60SC5CEPX2 (81747-B)
✔ OB60SC5CEX2 (81748-A)
✔ OB60SC5CEW1 (81496-A)
✔ OB60SC5CEX1 (81495-A)
✔ OB60SC5LCX1 (81493-A) OB60SC5CEW1 (80981-B) OB60SC5CEX1 (80980-B)
✔ OB60SC5LCX1 (80978-B)
✔ OB60SC5CEW1 (80981-A)
✔ OB60SC5CEX1 (80980-A)
✔ OB60SC5LCX1 (80978-A)
✔ OB60SC8DEPX2 (81739-B)
✔ OB60SC8DEPX2 (81739-A)
✔ OB60SC9DEPX1 (81483-B)
✔ OB60SC9DEPX1 (81483-A)
✔ OB60SC9DEX1 (81484-A)
✔ OB60SC9DEPX1 (80946-C)
✔ OB60SC9DEX1 (80947-C)
✔ OB60SC9DEPX1 (80946-B)
✔ OB60SC9DEX1 (80947-B)
✔ OB60SC9DEPX1 (80946-A)
✔ OB60SC9DEX1 (80947-A)
✔ OB60SC11DEPX1 (81504-B)
✔ OB60SC11DEPX1 (81504-A)
✔ OB60SC11DEPX1 (81113-C)
✔ OB60SC11DEPX1 (81113-B)

Part Number: 565189

Notes:

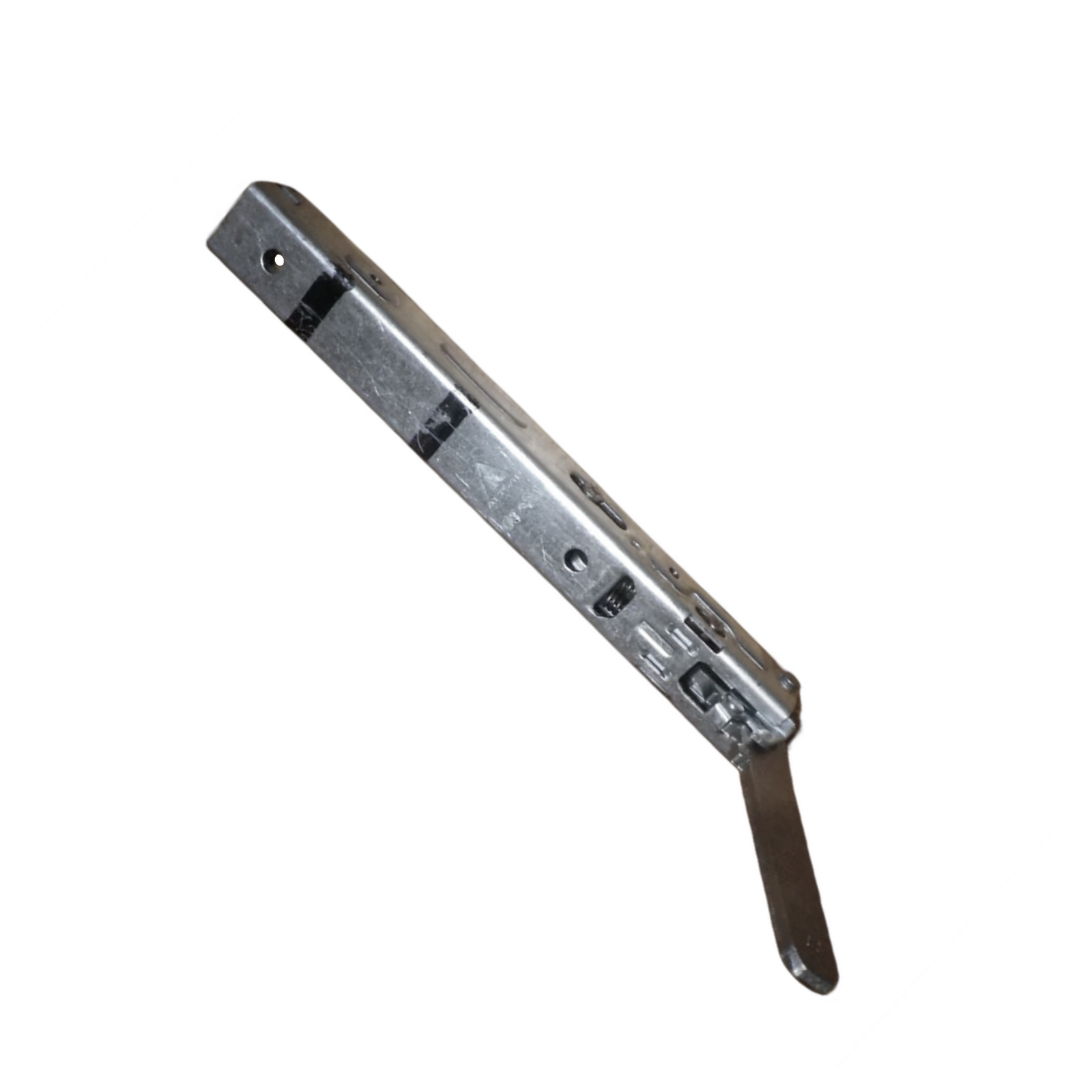

565189 Fisher & Paykel Oven Door Hinge K19 3P FG-OB60 - 561551

565189 supersedes 561551 and is number 33 on the diagram (2nd last photo). The diagram is from model OB60SC7CEPX2 (81741-B).

Models this part suits:

OB60SC7CEPX2 (81741-A), OB60SC7CEPX2 (81741-B), OB60SC7CEPX1 (81490-B),  OB60SC7CEW2 (81743-A), OB60SC7CEX2 (81742-A), OB60SC7CEPX1 (81490-A), OB60SC7CEW1 (81494-A), OB60SC7CEX1 (81485-A), OB60SC7LEX1 (81491-A), OB60SC7VEW1 (81506-A), OB60SC7VEX1 (81505-A), OB60SC7CEPX1 (80975-C), OB60SC7VEW1 (81115-B), OB60SC7VEX1 (81114-B), OB60SC7CEPX1 (80975-B), OB60SC7CEW1 (80979-B), OB60SC7CEX1 (80948-B), OB60SC7LEX1 (80976-B), OB60SC7VEW1 (81115-A), OB60SC7VEX1 (81114-A), OB60SC7CEPX1 (80975-A), OB60SC7CEW1 (80979-A) OB60SC7CEX1 (80948-A), OB60SC7LEX1 FP AA 80976-A OB60SC5CEPX2 (81747-A) OB60SC5CEPX2 (81747-B), OB60SC5CEX2 (81748-A), OB60SC5CEW1 (81496-A), OB60SC5CEX1 (81495-A), OB60SC5LCX1 (81493-A) OB60SC5CEW1 (80981-B) OB60SC5CEX1 (80980-B), OB60SC5LCX1 (80978-B), OB60SC5CEW1 (80981-A), OB60SC5CEX1 (80980-A), OB60SC5LCX1 (80978-A), OB60SC8DEPX2 (81739-B), OB60SC8DEPX2 (81739-A), OB60SC9DEPX1 (81483-B), OB60SC9DEPX1 (81483-A), OB60SC9DEX1 (81484-A), OB60SC9DEPX1 (80946-C), OB60SC9DEX1 (80947-C), OB60SC9DEPX1 (80946-B), OB60SC9DEX1 (80947-B), OB60SC9DEPX1 (80946-A), OB60SC9DEX1 (80947-A), OB60SC11DEPX1 (81504-B), OB60SC11DEPX1 (81504-A), OB60SC11DEPX1 (81113-C), OB60SC11DEPX1 (81113-B), and possibly more.
