DESCRIPTION

This Air Filter Material replacement is compatible with Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: G2 DUCTED AIR CONDITIONING FILTER MATERIAL 800mm x 450mm

Type: Air Filter Material

Suitable For: Air Conditioners

Number in Pack: 1

Item Length: 800 mm

Item Width: 450 mm

Item Thickness: 5 mm

Colour: Grey

Contaminants Captured: Debris, Dust

Application: Air Conditioner

Country/Region of Manufacture: Australia

Temperature Resistance: 100oC Continuous

Fire Resistance: Manufactured with a fire retardant resin

Initial Resistance - At rated flow of 1.8 m/s: 27 Pa

AS1132 No 4 test dust - Average Arrestance: 75%

Dust Holding No 4 test dust: 225 g/m2 (per unit of effective face area)

MPN: Does not apply

Installation: Built-In/Integrated

Suitable Models:
✔  Universal

Notes:

  • This grey ducted G2 filter material is a washable polyester that meets the Australian standards.
  • Just remove your old dusty material from its frame and insert this new material in its place.
  • The filter material has a nominal thickness of 5 mm.
  • Comes with spline to fit into a gap in the aluminium of 5.5 mm.
  • The spline creates a nice tight fit preventing the material from coming out.
  • Some materials are thicker which may make it very difficult to re-insert back into its frame.

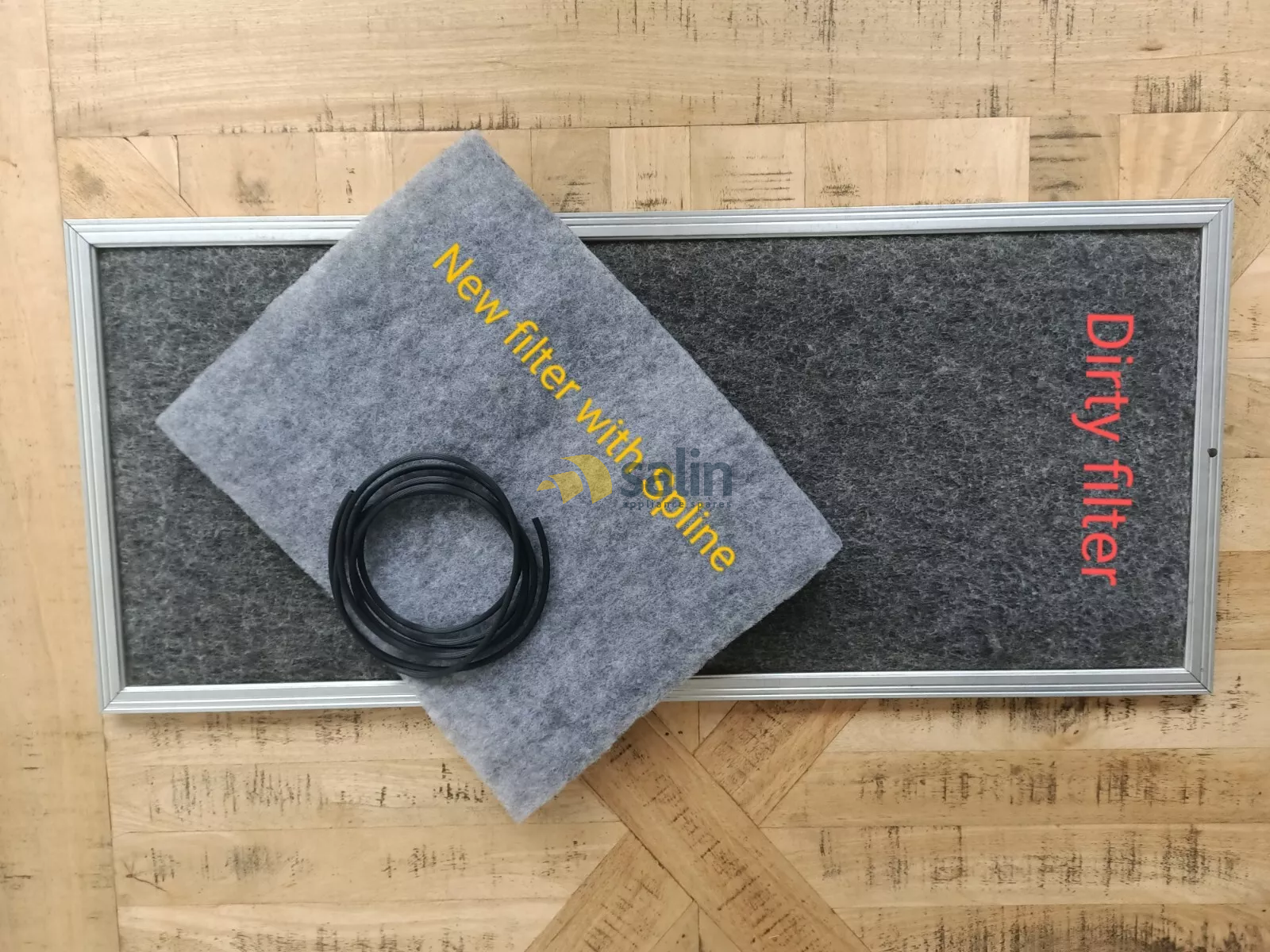

  • Please see photos for more information to clarify what this is referencing to.
  • The polyester fibres are thermally bonded together into an interlocking pattern that traps dust and lint, while minimizing surface loading.
  • Its suitable in applications such as room air conditioning filters, domestic ducted heating and cooling and return air grill filters.
