This Magnetron replacement is compatible with LG Ovens & Stoves.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

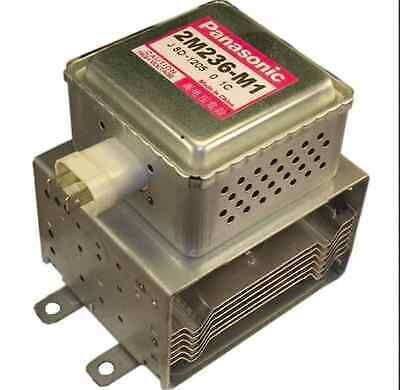

Title: Genuine Panasonic Inverter Microwave Magnetron 2M236-M1 NNC2000W NNC2003S

Brand: LG

Type: Magnetron

Title : Genuine Panasonic Inverter Microwave Magnetron 2M236-M1 NNC2000W NNC2003S

Notes :
Magnetron Suits Panasonic Inverter Type Microwave oven
item No.:2M236-M1
NNC2000W NNC2003S NNA873SB
Description: Inverter type magnetron
Output power: 1000W
Frequency(with matched load): 2455Mhz
Filament voltage: 3.3 Vac
Filament current: 10A
Peak anode voltage: 4.4KV
Panasonic part number: 2M236-M1 this is also equivalent to the 2M261-M1 magnetron
This magnetron is fitted to some Panasonic inverter type microwaves. Some microwaves such as Bosch and Siemens also use this magnetron as they are rebranded Panasonic ovens. These ovens are upmarket models and are normally well worth repairing.
The 2M236-M1G is the offline version of the 2M236 magnetron, ie the airflow goes against the direction of the mounting brackets. This magnetron is used in some convection oven models. The offline construction allows horizontal mounting of the magnetron which is required in some models. Please note this item is not suitable for replacement of the 2M236-M42. Please see our other listings in the cross selling link below for this item. We also have available the 2M261-M32 which is a version fitted to earlier inverter models.
An inverter microwave oven is one without a high voltage transformer You will know you have one as it is not extremely heavy at one end. This type of microwave uses a high power DC converter, called an inverter, to produce the high voltage and filament voltage required by the magnetron.
Failure of this magnetron is common. An instruction sheet with basic guidelines on fitting will be provided but please do not purchase this item unless you are confident about fitting it. We only accept returns if the magnetron supplied is defective which is extremely unlikely.
Please see our other listings for other microwave parts for these and other models. Parts such as:
Oven lamps
The Inverter assembly
In some cases you may require a replacement Air Guide A as this can melt if the magnetron overheats. This part is also to be found in our microwave parts section.
It is strongly recommended that you replace the oven lamp as failure of the lamp is quite common. We find that when the original type of oven lamp fails damage can be caused to the control panel DU pcb assembly. The reason for this is that as the lamp fails it can go momentarily short circuit and the pcb tracks get blown open before the main fuse fails. It is worthwhile considering a new lamp as it will prevent this from happening. New lamps have fuses fitted inside them.
Note: Microwave ovens should only be repaired by qualified technicians with a knowledge of microwave ovens. Voltages present inside a microwave oven are extremely high and dangerous, and can be present long after the appliance is switched off and disconnected from the mains supply

Suitable Brand: LG, Samsung, Panasonic, Smeg, Miele, Bosch, Sharp

Suitable Applicance Class: Microwave

Suits to: 2M236-M1

Model: NNC2000W NNC2003S NNA873SB

MPN: 2M236-M1

Power Source: Electric

Suitable For: Convection Microwave Oven,Grill Microwave Oven,Solo Microwave Oven

Colour: Multicoloured

Compatible Brand: SHARP MIELE BOSCH

Capacity: 31-55 L

Installation: Built-In/Integrated

UPC: Does not apply
