DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

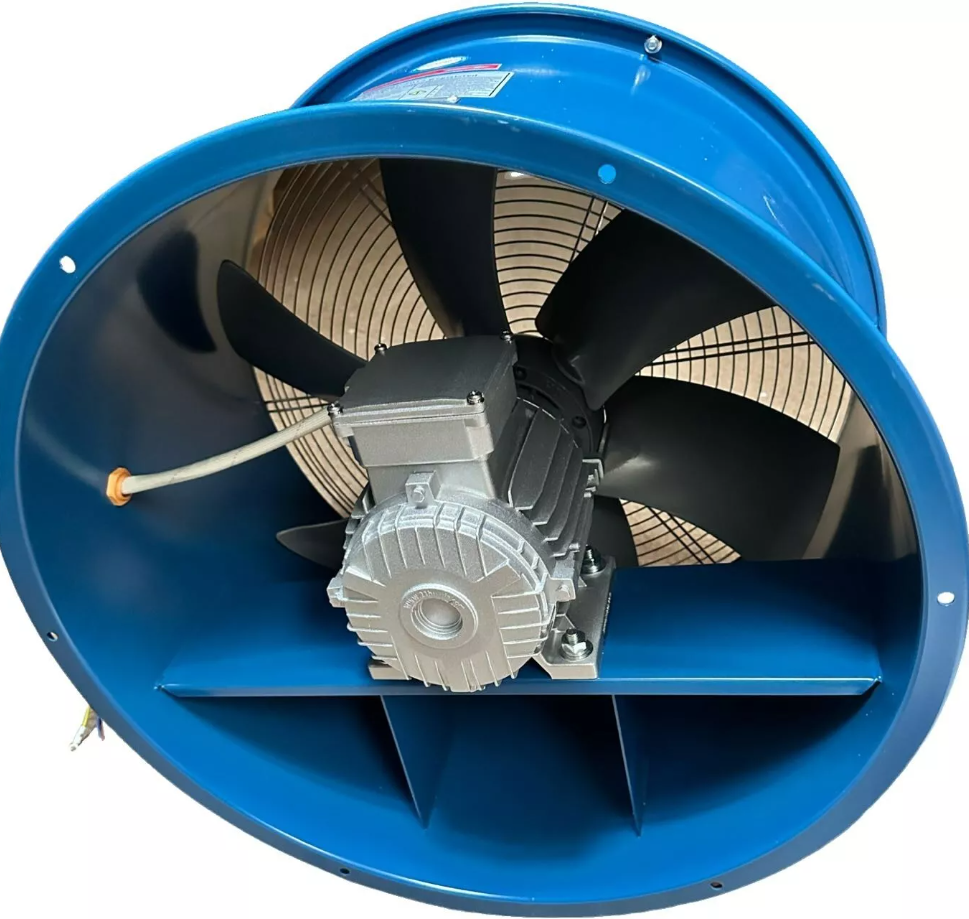

Title: GKF/G5.5S-4 Axial Fan 415V 550mm 1450rpm High Temperature and High Humidit

MPN: GKF/G5.5S-4

SKU Number: HTN_0001807

Notes:

GKF series high temperature high humidity axial ventilator fan

GKF series high temperature high humidity axial ventilator fan is widely used in the painting, tobacco, wood drying, production of rubber, production of pharmaceuticals.

About vented exhaust

The fan can be used in the lots of high temperature and high thumidity environment, for example: the factory, the workshop, the office, the warehouse, the basement. The axial fan is unidirectional vented exhaust equipment. The fans has characteristic of resistance to high-temperature, large air volume, high pressure, energy-efficient, low noise, convenience maintenance, etc. The gas has no more than 150mg/cbm dust and hard particles.

APPLIED CONDITIONS
Max. Ambient Temp:<130℃

Relative humidity: ≤98％

In the ambient of weak acid, week alkali, vapor and no flammable gas, the motor can be also used in the vacuum drying equipment according  to the specific conditions

STANDARD FORM
1) Rated voltage: 220V/415V
2) Rated frequency: 50Hz
3) Working Method: continous (S1) running
4) Cooling Method: IC411
5) Protection Class: IP54/IP55
6) Insulation Class: Class F (130 ℃), Class H (180 ℃）

High temperature resistant class
1) Polyaldehyde enameled wire, heat resistance grade: B (130 ℃)
2) Modified polyester enameled wire , heat resistance grade: F (155 ℃)
3) Modified polyester imine enameled wire , Heat resistance Class: H (180 ℃)

Motor No.VHzPower (KW)Fan Blade Size (mm)No. of BladesSpeed (rpm)Total Pressure (Pa)Hydrostatic (Pa)Air Volume (m³/h)Noise (dB)
GKF/G5D-4240500.7550081450190-210110-1706000-9000≤75
GKF/G5S-4415501.150081450200-220135-1756000-9000≤76
GKF/G5.5D-4240501.155041450180-210120-1607500-11000≤74
GKF/G5.5S-4415501.155041450180-210120-1607500-11000≤74
GKF/G6D-4240501.160041450195-220130-1807500-12000≤76
GKF/G6S-4415501.160041450195-220130-1807500-12000≤76

Technical Data

Please add the high temperature grease (the dripping temp. > ~200℃ when the running time of the motor reaches 3500 hours.

Installation Dimensions

  • Frame No. 5
    • D: 510
    • D1: 535
    • D2: 560
    • H: 71/80/90
    • L: 300/330/360
    • n-d1: 6-φ8
  • Frame No. 5.5
    • D: 560
    • D1: 585
    • D2: 610
    • H: 80/90
    • L: 330/360
    • n-d1: 6-φ8
  • Frame No. 6
    • D: 610
    • D1: 635
    • D2: 670
    • H: 80/90/100
    • L: 330/360/390
    • n-d1: 6-φ8


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0001807
Brand Universal
Shipping Weight 1.0000kg
