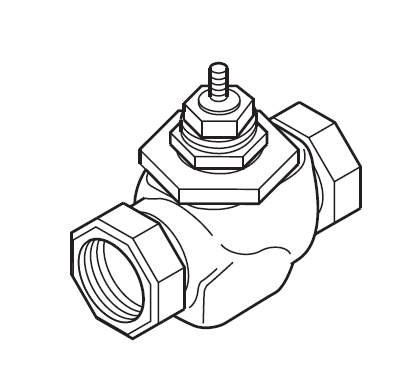

VB-7225 series single seat, stem up closed, two-way valves control water from -7 to 138°C or steam to 138°C maximum in heating or air conditioning systems. They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately.

Features

• Valve sizes 15 mm to 50 mm
• PN16 nominal pressure; also meets 250 psig pressure rating per ANSI Standards (B16.15'1985) for screwed cast bronze bodies
• Spring-loaded TFE packing
• End fittings Internal Parallel Pipe Thread per ISO 7/1, BS 21, JIS B0203
