DESCRIPTION

This Industrial Controls replacement is compatible with DANFOSS Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Industrial Controls - Pressure Regulators | Pilot valve, EVM NC | PN: 027B1120

Brand: Danfoss

Type: Parts & Accessories → Flow Controls → Industrial Controls - Pressure Regulators

MPN: 027B1120

SKU Number: KRB_0000266

Notes:

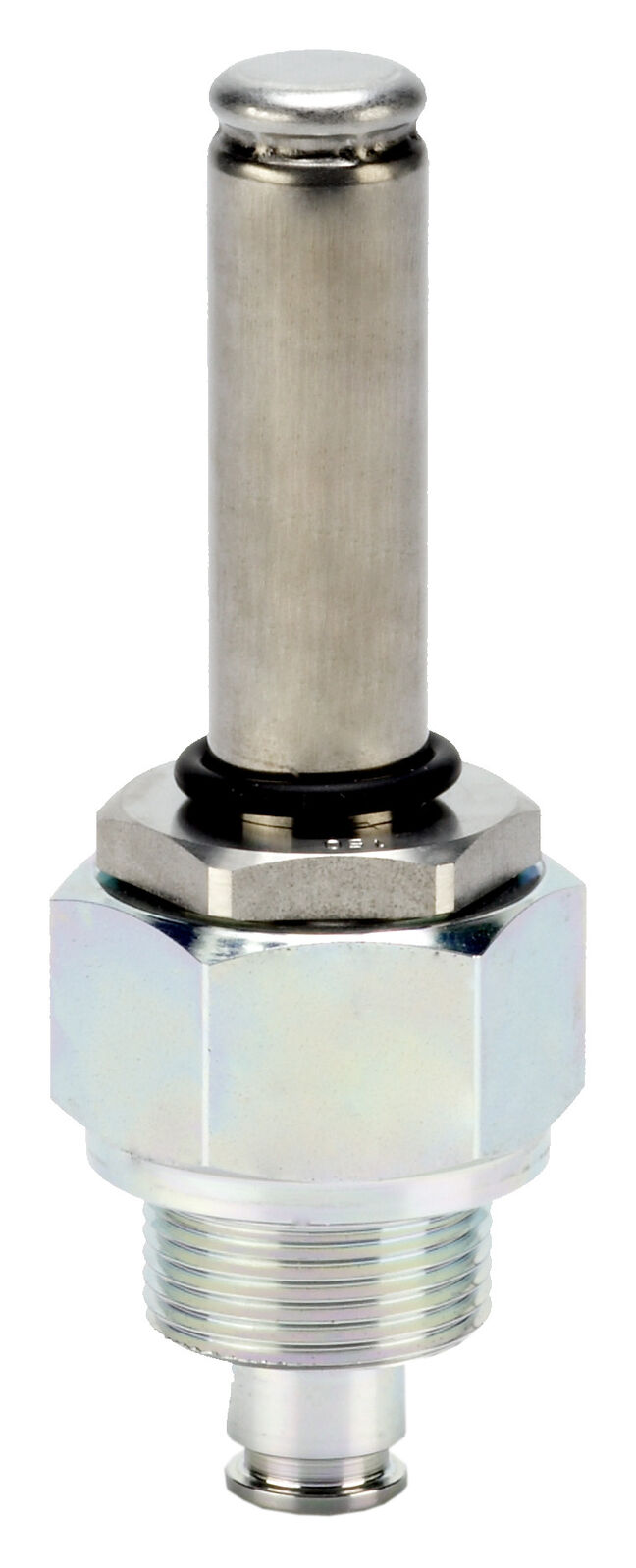

Danfoss EVM Pilot Valve

EVM is a solenoid pilot valve for use when on/off operation of the PM main valve is required. EVM valves are intended for use with Danfoss solenoid valve coils.
Together with CVH, an EVM can also be used as an independent solenoid valve.

Characteristics:

  • Type:  EVM (NC) / Solenoid valve
  • Weight:  0.252 Kg
  • 10W a.c. MOPD bar:  21 bar
  • 14W a.c. MOPD psi:  300 psi
  • 20W d.c. MOPD bar:  14 bar
  • Ambient temperature:  Max. +80 °C
  • Armature tube size:  13,5 MM
  • Coil type:  VAC 10 Watt VDC 20Watt
  • Cv-value USgal/min:  0,324
  • Cv-value USgal/min:  0.43 gal/min
  • Description:  Normally closed
  • Direction:  None
  • Fluid Group:  1
  • Function:  NC
  • Housing material:  STEEL
  • Inlet type:  M24x1,5-6g
  • Kv-value m³/h:  0,280
  • Kv-value m³/h:  0.37 m³/h
  • Manual Operation:  No
  • Max. Working Pressure bar:  35 bar
  • Max. Working Pressure ef:  45,2 bar
  • Max. Working Pressure:  508 psig
  • Max. Working Pressure:  655 psig
  • Medium temperature range °C:  -60 - 120 °C
  • Medium temperature range °F:  -76 - 248 °F
  • Orifice size:  3,30
  • Pack size:  1
  • Pressure range bar  MOPD: 21 bar
  • Pressure range psig  MOPD: 305 psig
  • Refrigerant(s):  CFC
  • Refrigerant(s):  HCFC
  • Refrigerant(s):  HFC
  • Refrigerant(s):  R717
  • Standard product:  Yes
  • Type designation:  EVM (NC)
  • Type designation:  Solenoid valve


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU KRB_0000266
Brand Danfoss
Shipping Weight 1.0000kg
