DESCRIPTION

This replacement is compatible with JUCHUANG Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

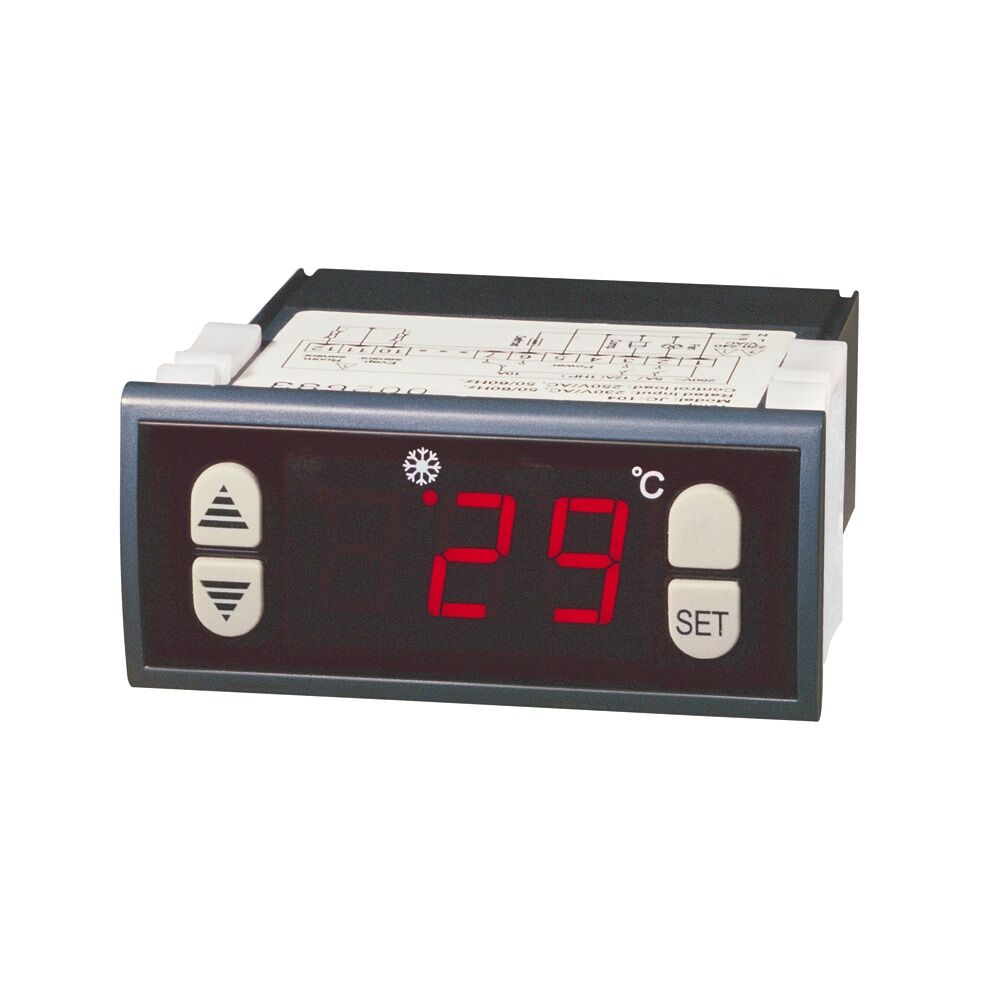

Title: JC-502 JUCHUANG Digital temperature controller

Brand: Juchuang

MPN: JC-502

SKU Number: HTN_0002128

Notes:

Brand:  JUCHUANG

Model:  JC-502

Digital temperature controller JC-502 for Fridge

1.Temperature controller
2.Temperature display (Celsius/Fahrenheit degrees)
3.Manual, automatic defrost by turning off

temperature controller

·Temperature display (Celsius/Fahrenheit degrees)

·Temperature control

·Manual, automatic defrost by turning off

·Time or temperature setting to end defrost

·The cold-room sensor temperature can lock during defrost

·Parameter sets and value storing

·Compressor re-start delay

·Parameter locking

·The factory default resumption

·Offset on sensor temperature    ·Self testing

·Power supply220V/AC~240V/AC50/60Hz  110V/AC~120V/AC60Hz
·Power consumpotio n5W
·Output relay for compressorN.O.30A/250V~50/60Hz.
·Temperature sensorNTC,2 sensor(Temp. Display , defrost control)
·Temperature unit/Change     ·Resolution1
·Accuracy±1±2
·Range of temperature control-45 ~ 45-40 ~ 120

Parameter

Function

Set range

Default

PA

Menu password

00 ~ 99

00

E1

Lower set point limit

-45 ~ Set temperature

-15

-40 ~ Set temperature

05

E2

Higher set point limit

Set temperature ~ 45

10

Set temperature ~ 120

50

E3

Temperature hysteresis

01 ~ 10

05

01 ~ 36

07

E4

Comp. Start delay time

00 ~ 10Min

00

E5

Offset on room temp.

-05 ~ 05/

00

E6

Offset on evep. temp.

-05 ~ 05/

00

F1

Max. Defrost duration

01 ~ 60 Min

20

F2

Defrost interval time

00 ~ 24Hr

06

F3

Defrost termination temp.

00 ~ 45

12

32 ~ 110

54

F4

Display during defrost

00=Normal display

01

01=Last value before defrost

C1

Temperature unit

00=

00

01=

CPA

Changing menu password

00 99Setting00, the menu password is cancelled

00


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0002128
Brand Juchuang
Shipping Weight 1.0000kg
