DESCRIPTION

This replacement is compatible with JUCHUANG Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

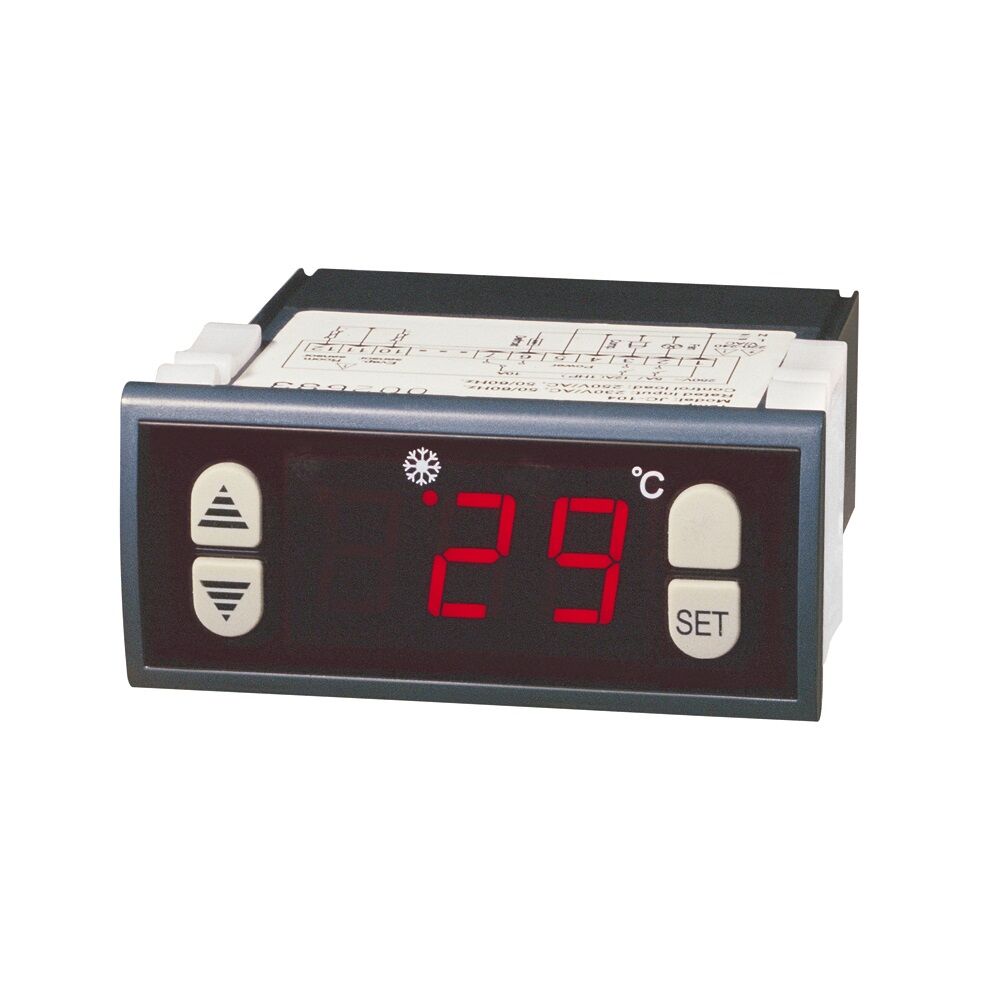

Title: JC-600 JUCHUANG Digital temperature controller

Brand: Juchuang

MPN: JC-600

SKU Number: HTN_0002129

Notes:

Brand:  JUCHUANG

Model:  JC-600

Digital temperature controller JC-600

Specifications

Temperature controller(Celsius/Fahrenheit degrees)
Temperature control
Parameter sets and value storing


temperature controller

·Temperature display (Celsius/Fahrenheit degrees)

·Temperature control

·Parameter sets and value storing

·Compressor re-start delay

·Parameter locking

·The factory default resumption

·Offset on sensor temperature ·Self testing

·Power supply12V50/60Hz ·Power consumpotio n5W
·Output relay for compressorN.O.30A/250V~50/60Hz
·Output relay for lighitingN.O.30A/250V~50/60Hz
·Temperature sensorNTC,1 sensorRoom-temp. display
·Temperature unit/Change ·Resolution1
·Accuracy±1±2
·Range of temperature control-45 ~ 45-40 ~ 120

·Panel dimension78×35×37mm
·Mounting hole dimension71×29mm

Parameter

Function

Set range

Default

PA

Menu password

00 ~ 99

00

E1

Lower set point limit

-45 ~ Set temperature

-20

-40 ~ Set temperature

-05

E2

Higher set point limit

Set temperature ~ 45

20

Set temperature ~ 120

68

E3

Temperature hysteresis

01 ~ 10

05

01 ~ 36

07

E4

Comp. Start delay time

00 ~ 10Min

00

E5

Offset on room temp.

-05 ~ 05/

00

C1

Temperature unit

00=

00

01=

CPA

Changing menu password

00 ~ 99Setting00, the menu password is cancelled

00

Notes:

·The parameter can be changed only after the correct PA to be entered, or it can only be checked, except temperature controlling.

·It means locking cancelled if PA is set 00, no password required for checking and/or changing.
