DESCRIPTION

This replacement is compatible with LG Refrigerators.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

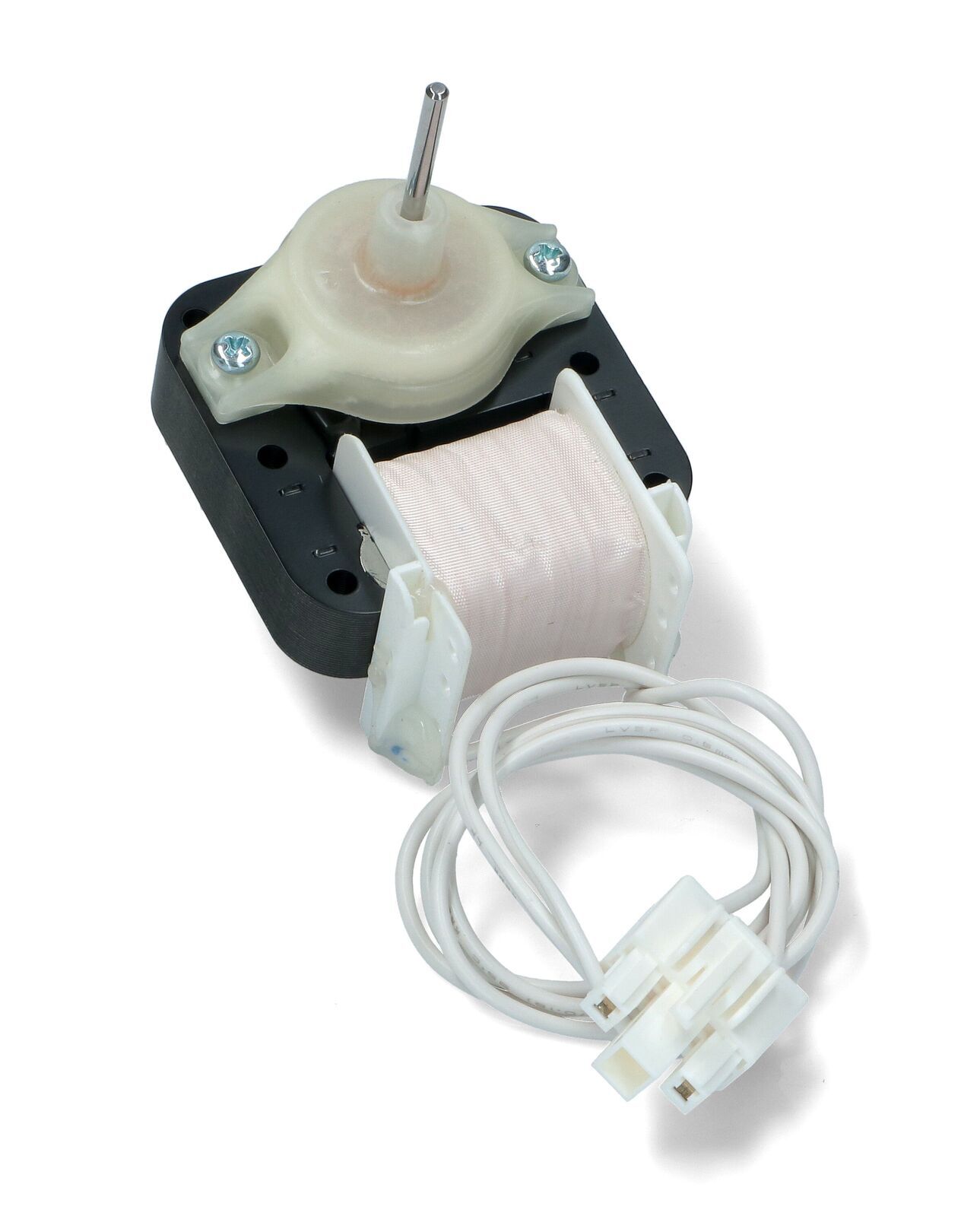

Title: LG Fridge Freezer Fan Motor - 4680JB1039F

Brand: LG

Part Number: 4680JB1039F

Suitable For: Fridge/Freezer

Compatible Brands: LG

Notes:

New replacement fridge freezer fan motor for some LG NZ refrigerators. This spare part is also referred to as the evaporator fan as its commonly used to move the air from the evaporator to allow cool air to circulate in the fridge-freezer.

Specs: 220-240VAC operation. Fitted with 3 way power connector & two wires 55cm long. Shaft length - 24.5mm, Shaft diameter - 3mm, Total depth of motor including shaft - 94.7mm, Thickness of metal laminations - 15.2mm, thickness of motor including bearing covers - 46.4mm.

Suits:

GN-303SFA, GN-315FW, GN-346FS, GN-346FW, GN-422FS, GN-422FW, GN-466FW, GN-R315FW, GN-R315FW, GN-R346FS, GN-R346FW, GN-R422FS, GN-R422FW, GN-R466FS, GN-R466FT, GN-R466FW, GN-R491FT, GN-R491FW, GN-S303GCA, GN-S339GCA, GN-S339GTA, GN-S402GCA, GN-W422FW, GR-349SQFA, GR-372SFA, GR-391SCA, GR-431SCA, GR-432SFA, GR-482SFA, GR-559FSDR, GR-559FTD, GR-559FWD, GR-559FWDR, GR-559JPA, GR-572TF, GR-642APA, GR-R422JCA, GR-R463JCA, GR-R466JTA, GR-R491JCA, GR-R491JTA, GR-R579JQA, GR-R579JTA, GR-S352GCA, GR-S352GC, GR-S392GCA, GR-S392GC, GR-S392GT, GR-S392QTC, GR-S462GCA, GR-S512GCA, GR-S512GC, GR-S552GTA, GR-S592GCA, GR-S592GTA, GR-S642AQA, GR-S642ATA and more.

GN-303SFA (GN-332SA.ASWRGAP)
GN-315FW (GN-B352YC.ASWRGAP)
GN-346FS (GN-B392YSCA.AAVRGAP)
GN-346FW (GN-B392YC.ASWRGAP)
GN-422FS (GN-B492YSCA.AAVRGAP)
GN-422FW (GN-B492YCA.ASWRGAP)
GN-466FW (GN-B562YCA.ASWRGAP)
GN-R315FW (GN-M352YCA.ASWRGAP)
GN-R315FW (GN-M352YQ.ASWRGAP)
GN-R346FS (GN-M392YSCA.AAVRGAP)
GN-R346FW (GN-M392YQ.ASWRGAP)
GN-R422FS (GN-M492YSCA.AAVRGAP)
GN-R422FW (GN-M492YQA.ASWRGAP)
GN-R466FS (GN-M562YSQA.AAVRGAP)
GN-R466FT (GN-M562YTQA.ATIRGAP)
GN-R466FW (GN-M562YQA.ASWRGAP)
GN-R491FT (GN-M602YTQA.ATIRGAP)
GN-R491FW (GN-M602YQA.ASWRGAP)
GN-S303GCA (GN-S352GC.ASWRGAP)
GN-S339GCA (GN-S392GC.ASWRGAP)
GN-S339GTA (GN-S392GTC.ATIRGAP)
GN-S402GCA (GN-S462GC.ASWRGAP)
GN-W422FW (GN-B492CDA.ASWRGAP)
GR-349SQFA (GC-349SQF.CEWQRAN)
GR-372SFA (GR-372SFA.ASWRGAP)
GR-391SCA (GR-432SCA.ASWRGAP)
GR-431SCA (GR-482SCA.ASWRGAP)
GR-432SFA (GR-432SFA.ASWRGAP)
GR-482SFA (GR-482SFA.ASWRGAP)
GR-559FSDR (GR-B652YSPK.AAVRGAP)
GR-559FTD (GR-B652YTPA.ATIRGAP)
GR-559FWD (GR-B652YPA.ASWRGAP)
GR-559FWDR (GR-B652YPK.ASWRGAP)
GR-559JPA (GR-652JPA.ASWRGAP)
GR-572TF (GR-572TF.ESWRGAP)
GR-642APA (GR-642AVPA.ASWRGAP)
GR-R422JCA (GR-R472JQA.ASWRGAP)
GR-R463JCA (GR-R522JQA.ASWRGAP)
GR-R466JTA (GR-R562JTQA.ATIRGAP)
GR-R491JCA (GR-R602JQA.ASWRGAP)
GR-R491JTA (GR-R602JTQA.ATIRGAP)
GR-R579JQA (GR-R652JQA.ASWRGAP)
GR-R579JTA (GR-R652JTQA.ATIRGAP)
GR-S352GCA (GR-S352GCA.ASWRGAP)
GR-S352GC (GR-S352GC.ASWRGAP)
GR-S392GCA (GR-S392GCA.ASWRGAP)
GR-S392GC (GR-S392GC.ASWRGAP)
GR-S392GT (GR-S392GTC.ATIRGAP)
GR-S392QTC (GR-S392QTC.ATIQRAN)
GR-S462GCA (GR-S462GCA.ASWRGAP)
GR-S512GCA (GR-S512GCA.ASWRGAP)
GR-S512GC (GR-S512GC.ASWRGAP)
GR-S552GTA (GR-S552GTCA.ATIRGAP)
GR-S592GCA (GR-S592GCA.ASWRGAP)
GR-S592GTA (GR-S592GTCA.ATIRGAP)
GR-S642AQA (GR-S642AVQA.ASWRGAP)
GR-S642ATA (GR-S642ATQA.ATIRGAP)

Codes: 4680JB1039F, 4681JB1021M, 4681JB1031E, 4681JB1031T


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU SVE_0010140
Brand LG
