DESCRIPTION

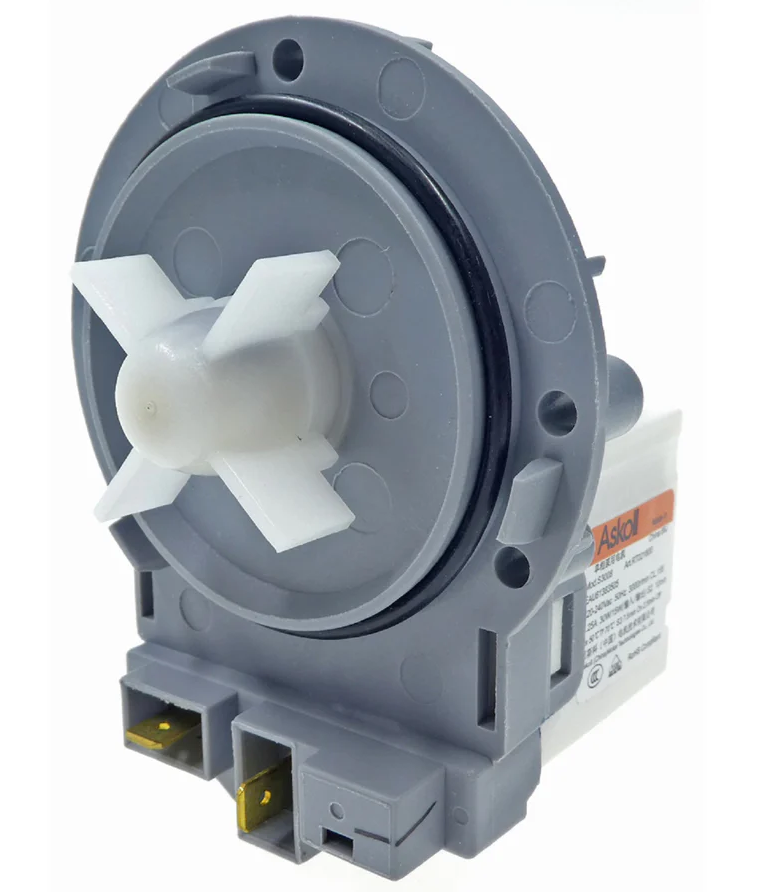

This Drain Pump Part(s) replacement is compatible with LG Washers.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: LG Front Load Washing Machine Drain Pump - BO112 | Suits: F1495BD (F1495BD.ABWQEDG) F14A8FD (F14A8FD.ABWQESW) F14A8RDS (F14A8RDS.ABWQESW)

Brand: LG

Type: Drain Pump Part(s)

Suitable For: Washing Machine

Compatible Brands: LG

Compatible Models:
✔ WD1207NCW (F2J6QNP0W.ABWREAP)
✔ WD1208TC4W (F2J6GNP1W.ABWREAP)
✔ WD14023D6 (F14A8TD.ABWREAP)
✔ WD14024D6 (F14A8GD.ABWREAP)
✔ WD1402CRD6 (F1496AD3.ABWREAP)
✔ WD14030D6 (F1480FD.ABWREAP)
✔ WD14030D (F1403FD3.ABWREAP)
✔ WD14030D (F1403FD.ABWREAP)
✔ WD14030FD6 (F1480RDS.ABWREAP)
✔ WD14030FD (F1403RDS3.ABWREAP)
✔ WD14030FD (F1403RDS.ABWREAP)
✔ WD14030RD6 (F1480RD.ABWREAP)
✔ WD14030RD (F1403RD3.ABWREAP)
✔ WD14030RD (F1403RD.ABWREAP)
✔ WD14039D6 (F1480FD9.ACRREAP)
✔ WD14039D (F1403FD39.ACRREAP)
✔ WD14039D (F1403FD9.ACRREAP)
✔ WD14060D6 (F1443KD.ABWREAP)
✔ WD14060SD6 (F1443KDS7.ASSREAP)
✔ WD14060SD6 (WD14060SD6)
✔ WD14070D6 (F1495KD.ABWREAP)
✔ WD14070SD6 (F1495KDS7.AESREAP)
✔ WD14071SD6 (F1495KDS.ABWREAP)
✔ WD14075D6 (F1495KDS7.AESREAP)
✔ WD1408NCW (F4J8GNP2W.ABWREAP)
✔ WD1408NPW (FH4A8GDNK2.ABWREAP)
✔ F1069FD2 (F1069FD2.ABWREAP)
✔ F1069FD3 (F1069FD3.ABWREAP)
✔ F1069FD4 (F1069FD4.ABWREAP)
✔ F1069FD (F1069FD.ABWREAP)
✔ F1495BD (F1495BD.ABWQEDG)
✔ F14A8FD (F14A8FD.ABWQESW)
✔ F14A8RDS (F14A8RDS.ABWQESW)
✔ F14A8TDS (F14A8TDS.ABWQESW)
✔ WD1409HPW (FH4A8FDHK2N.ABWREAP)
✔ WD1409NCE (F4J8FNP2S.AESREAP)
✔ WD1409NCW (F4J8FNP2W.ABWREAP)
✔ WD1409NPE (FH4A8FDNK6.AESREAP)
✔ WD1409NPW (FH4A8FDNK2.ABWREAP)
✔ WD1410SBW (FH495KDSK2.ABWREAP)
✔ WD1411SBW (FH4K9KDSK2.ABWREAP)
✔ WD14130D6 (F14A8FD.ABWREAP)
✔ WD14130FD6 (F14A8RDS.ABWREAP)
✔ WD14130RD6 (F14A8RD.ABWREAP)
✔ WD14135D6 (F14A8FD7.AESREAP)
✔ WD-14313RD (WD-14313RD.AOWREAP)
✔ WD-1457RD (WD-14570RD.ATWREAP)
✔ WD-1470FD (WD-14220FD.AOWREAP)
✔ WD14750SD (WD-14440TDS.AOWREAP)
✔ WD14756SD (WD-14446TDS.ABPREAP)
✔ WD1475NCW (F4J6QNP1W.ABWREAP)
✔ WD14800RD (WD-14312RDK.AOWREAP)
✔ WD-1481RD (WD-14313RD.AOWREAP)
✔ WD-1485RD (WD-14314RD.AOWREAP)
✔ WD-1488RD (WD-14312RD.AOWREAP)
✔ WD-1488RD (WD-14312RD.AOWRRAN)
✔ WDC1475NCW (F4J6QMP1W.ABWREAP)
✔ WD-F14427D (F14A8FD7.AESPEPN)

Part Number: EAU61383505

Notes:

Equivalent to Part Nos. EAU61383505, LGF037S, 1030239WS.

Askoll Mod. M253, Art. RS0666, Cod. RS0664.

Similar to Hanning Code # DP025-208, Plaset Code # 63096 & 70468.

Interchangeable in fit with Part nos. UNI087, DFL020, UNI088, UNI087H, PMP88.

220/240VAC, 0.2A, 50Hz, 25Watt, 6.4mm terminals. Terminals are located at the front of the motor.

This part fits many 240 volt LG washing machines / dryer combo machines where the motor body attaches to the cover by screws from the rear of the pump. 5 mounting holes.

This part can be used in many other brands such as Samsung, Asko, Bosch, Whirlpool, Philips, NEC, Midea, Daewoo, Kleenmaid and any others where the pump attaches to the pump housing with three screws from the rear.

Models this part suits:

WD1207NCW (F2J6QNP0W.ABWREAP), WD1208TC4W (F2J6GNP1W.ABWREAP), WD14023D6 (F14A8TD.ABWREAP), WD14024D6 (F14A8GD.ABWREAP), WD1402CRD6 (F1496AD3.ABWREAP), WD14030D6 (F1480FD.ABWREAP), WD14030D (F1403FD3.ABWREAP), WD14030D (F1403FD.ABWREAP), WD14030FD6 (F1480RDS.ABWREAP), WD14030FD (F1403RDS3.ABWREAP), WD14030FD (F1403RDS.ABWREAP), WD14030RD6 (F1480RD.ABWREAP), WD14030RD (F1403RD3.ABWREAP), WD14030RD (F1403RD.ABWREAP), WD14039D6 (F1480FD9.ACRREAP), WD14039D (F1403FD39.ACRREAP), WD14039D (F1403FD9.ACRREAP), WD14060D6 (F1443KD.ABWREAP), WD14060SD6 (F1443KDS7.ASSREAP), WD14060SD6 (WD14060SD6), WD14070D6 (F1495KD.ABWREAP), WD14070SD6 (F1495KDS7.AESREAP), WD14071SD6 (F1495KDS.ABWREAP), WD14075D6 (F1495KDS7.AESREAP), WD1408NCW (F4J8GNP2W.ABWREAP), WD1408NPW (FH4A8GDNK2.ABWREAP), F1069FD2 (F1069FD2.ABWREAP), F1069FD3 (F1069FD3.ABWREAP), F1069FD4 (F1069FD4.ABWREAP), F1069FD (F1069FD.ABWREAP), F1495BD (F1495BD.ABWQEDG), F14A8FD (F14A8FD.ABWQESW), F14A8RDS (F14A8RDS.ABWQESW), F14A8TDS (F14A8TDS.ABWQESW), WD1409HPW (FH4A8FDHK2N.ABWREAP), WD1409NCE (F4J8FNP2S.AESREAP), WD1409NCW (F4J8FNP2W.ABWREAP), WD1409NPE (FH4A8FDNK6.AESREAP), WD1409NPW (FH4A8FDNK2.ABWREAP), WD1410SBW (FH495KDSK2.ABWREAP), WD1411SBW (FH4K9KDSK2.ABWREAP), WD14130D6 (F14A8FD.ABWREAP), WD14130FD6 (F14A8RDS.ABWREAP), WD14130RD6 (F14A8RD.ABWREAP), WD14135D6 (F14A8FD7.AESREAP), WD-14313RD (WD-14313RD.AOWREAP), WD-1457RD (WD-14570RD.ATWREAP), WD-1470FD (WD-14220FD.AOWREAP), WD14750SD (WD-14440TDS.AOWREAP), WD14756SD (WD-14446TDS.ABPREAP), WD1475NCW (F4J6QNP1W.ABWREAP), WD14800RD (WD-14312RDK.AOWREAP), WD-1481RD (WD-14313RD.AOWREAP), WD-1485RD (WD-14314RD.AOWREAP), WD-1488RD (WD-14312RD.AOWREAP), WD-1488RD (WD-14312RD.AOWRRAN), WDC1475NCW (F4J6QMP1W.ABWREAP), WD-F14427D (F14A8FD7.AESPEPN), and possibly more.


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU PTH_0001483_11
