DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

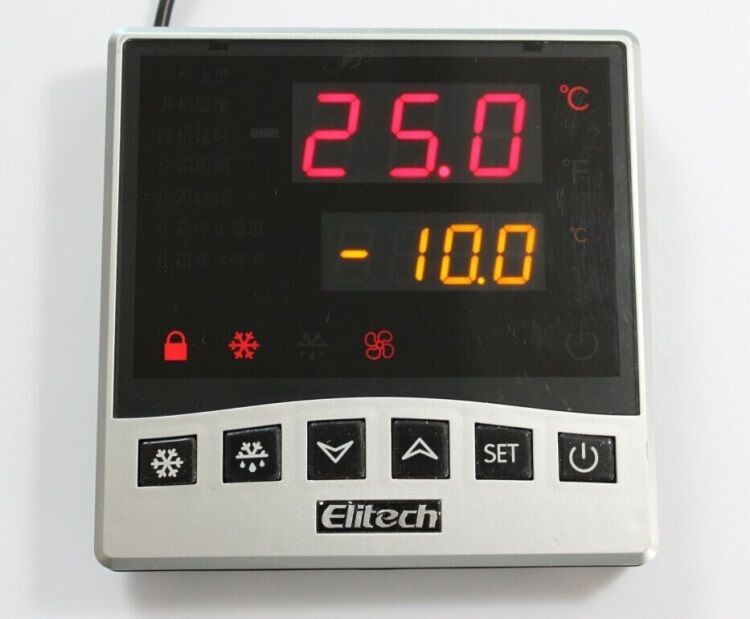

Title: LTC-100 Split Refrigeration Controller

MPN: LTC-100

SKU Number: HTN_0002293

Notes:

Brand: ELitech

Model:LTC-100 Split Refrigeration Controller


Main Function The controller is used to control the temperature of the middle and low temperature cold storage. It consists of display panel and control panel, with reservation of 4 pin pressing line terminal, which could connect the communication between display panel and control panel. Big LED, colour digital tube display, wall-mounted display panel; Three output in control panel: refrigeration, electric heating or hot gas defrost and evaporator fan; two NTC sensor input: storage temperature sensor and defrost sensor. Specific function are as below:  Refrigeration control: control temperature according to the set upper/lower limit, forced refrigeration is available  Defrost control: control the start/stop of defroster according to the evaporator’s temperature and working time, forced defrost is available  Fan control: multiple running modes optional, Fan enables or disabled during defrost and defrost dropping is optional, it starts or closes according to the fan start delay time and set temperature  Alarm control over temperature alarm, over temperature alarm and sensor failure alarm  Others: on/Off button switch between Celsius and Fahrenheit display: preset parameters, one-key recovery.

Technical Parameters

ï‚· Power Supply: 100-240VAC 47-63HZ

 Accuracy: ±1 oC / ±2 o F

ï‚· Temperature measuring and controlling range: -50oC Í  50 oC / -50o F Í  122o F ï‚· Storage temperature: -30oC Í  75oC / -22o F Í  167o F

ï‚· Ambient temperature: -0 oC Í  60 oC / 32o F Í  140o F

ï‚· Relative humidity: 20% Í  85% No condensate

 Sensor type: NTC sensor (10KΩ/25 oC, B value 3435 K)

ï‚· Power consumption: Ë‚5W

ï‚· Display resolution: 0.1 oC / 0.1 o F


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0002293
Brand Universal
Shipping Weight 1.0000kg
