DESCRIPTION

This replacement is compatible with MASTERCOOL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

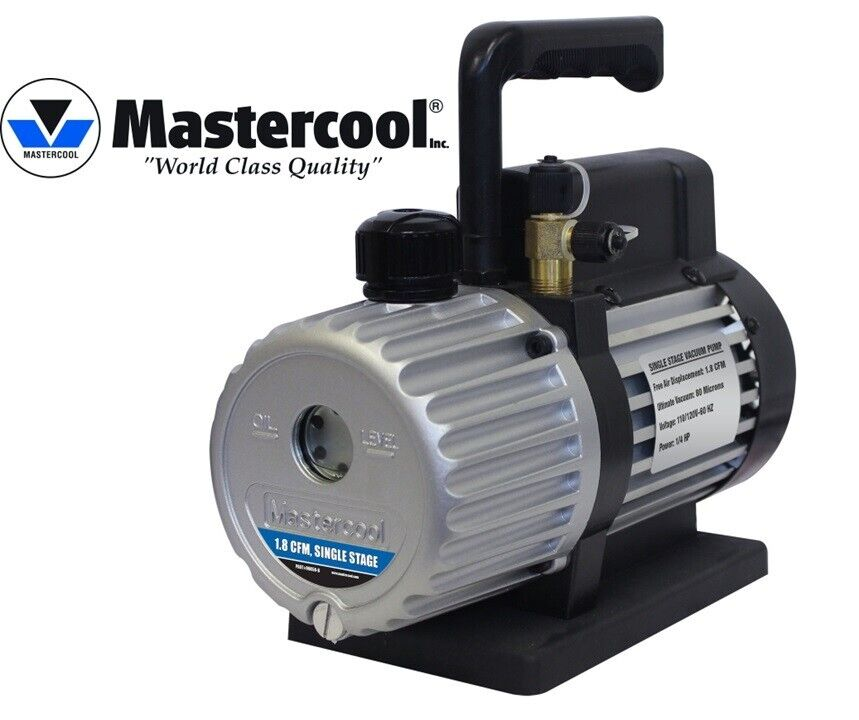

Title: MASTERCOOL 1.8 CFM VACUUM PUMP (SINGLE STAGE) 220V 1/4HP 42Litre (90059-220-B)

Brand: Mastercool

MPN: MC90059-220-B

SKU Number: HTN_0002364

Notes:

MASTERCOOL 1.8 CFM VACUUM PUMP (SINGLE STAGE) 220V 1/4HP Model:90059-220-B

Product Description

  • High volume fan provides cool air to the motor and pump
  • Vapor discharge/oil fill port, easily removable, contains internal check valve to prevent escape of liquid oil
  • Internal check valve to prevent oil back flow
  • Cooling fins to keep temperature cooler during extended motor operation
  • Thermally protected motor with on/off rocker switch
  • Large, lightweight reinforced base for stable positioning
  • Easily accessible oil drain valve
  • Large oil level sight glass with max/min oil level indicator

SPECIFICATIONS:

  • No. of Stages: 1
  • Free Air Displacement: 1.8 CFM
  • Ultimate Vacuum: 80 Microns
  • Pump Motor: 1/4 HP
  • Pump Speed: 1720 RPM

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

Also Available:
90059-220-B

  • No. of Stages: 1
  • Free Air Displacement: 51 LIT/MIN (60 hz) / 42 lit/min (50 hz)
  • Ultimate Vacuum: 80 Microns
  • Pump Motor 1/4 HP
  • Pump Speed: 1440 RPM
  • Electrical Specs: 220 V, 50/60 HZ

SERVICE INFORMATION:
Oil Capacity: 12 oz / 342 ml
