DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: MC98063-BT DIGITAL VACUUM GAUGE WITH BLUETOOTH® WIRELESS TECHNOLOGY

MPN: MC98063-BT

SKU Number: HTN_0002486

Notes:

MC98063-BT DIGITAL VACUUM GAUGE WITH BLUETOOTH® WIRELESS TECHNOLOGY

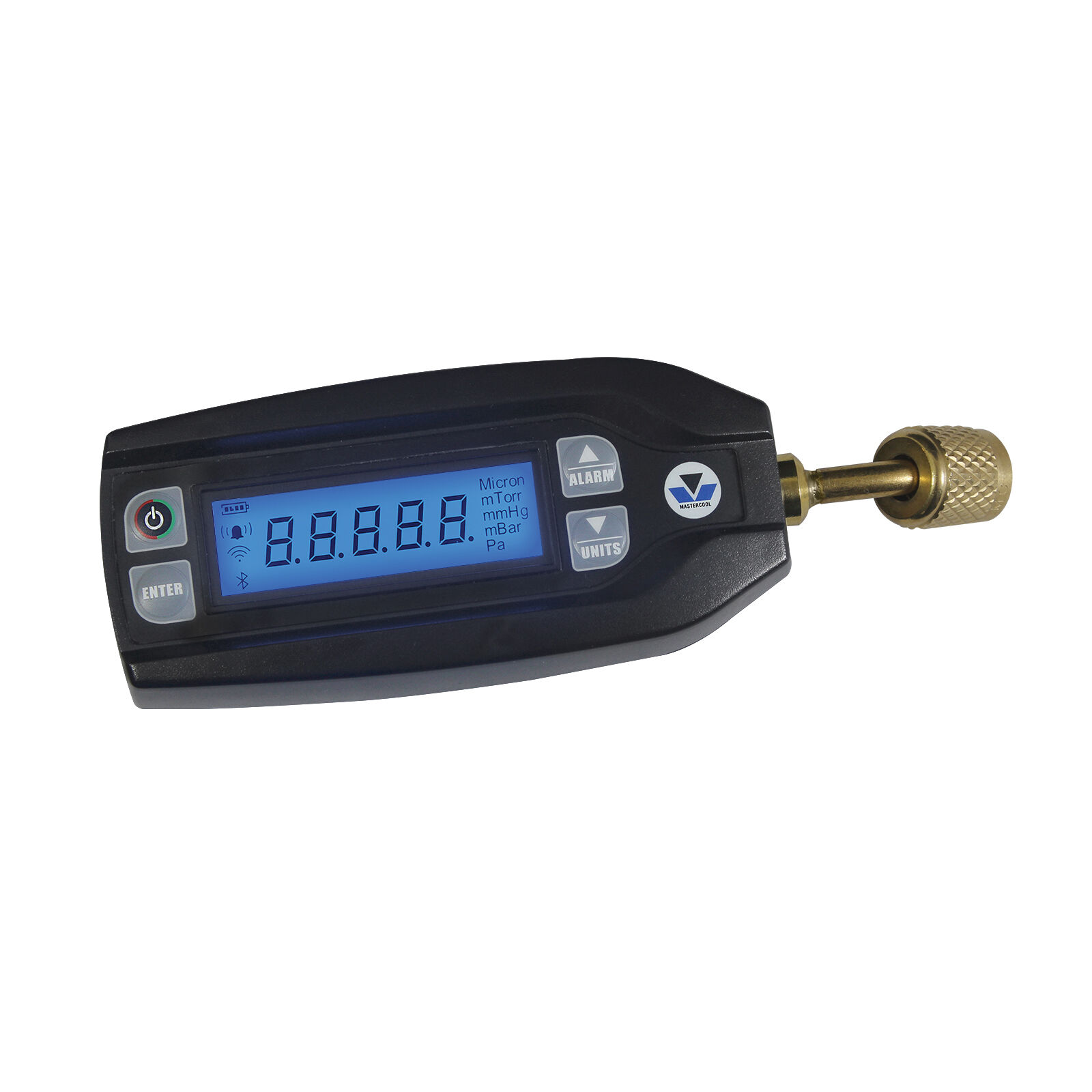

Mastercool introduces its new compact hand-held digital vacuum gauge with Bluetooth®  wireless technology which combines the most advanced features to provide quick and accurate responses every time. Utilizing a state-of-the-art glass beaded thermistor and temperature compensation, Mastercool is offering the latest technology to the HVAC/R technician.

Included in this package will be the capability to download our free Mastercool Connect app. This will allow for full mobility as activity can be easily viewed on all compatible hand-held smart devices.

FEATURES:

  • Sintered bronze inlet filter to protect the sensor
  • 5-digit LCD screen features an ultra-vibrant blue backlight allowing for easy readability
  • Chemical resistant sensor for ease of cleaning
  • Low battery icon displayed on the LCD indicates that the batteries are low and need to be replaced
  • Calibration can be performed while in the field environment
  • Audio and visual alarm when vacuum goes below a user adjustable set point
  • Bluetooth®  wireless technology provides communication to hand-held smart devices through the Mastercool Connect app

SPECIFICATIONS:

  • Sensor: Glass bead thermistor with temperature compensation
  • Connection Fitting: 1/4 SAE F-FL with stem depressor
  • Operating Temperature: 32 to 120˚F (0 to 45˚C)
  • Vacuum Units: Micron, Torr, mTorr, mmHg, mBar, Pa
  • Range: 20,000 to 1 micron
  • Accuracy: ±10% of reading (from 10,000 to 100 microns)
  • Proof Pressure: 450 psi
  • Auto-Off: Automatic after 10 minutes, blue backlight after 3 minutes
  • Power: 2 AA batteries included
  • Battery Life: 100+ continuous hours (depending on backlight use)
  • Weight: 0.3 lb (0.13 kg) without batteries / 0.5 lb (0.23 kg) with batteries
  • Dimensions: 1.9” x 6.3” x 1.4” (50 mm x 160 mm x 36 mm)

Specifications for Bluetooth® Wireless Technology:

  • 260’ (80m) maximum line-of-sight range
  • Bluetooth® 4.2 and 5

OPTIONAL ACCESSORIES:
99333: 1/4 FL-M x 1/4 FL-M x 1/4 FL-F Tee

Additional Information on the Mastercool Connect App

 Instructions
 Flier
 Parts List


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0002486
Brand Universal
Shipping Weight 1.0000kg
