DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Model: MIBP15 Condensate Pump Mini Box(MIBP) For Split Air Con Max. flow 15L

MPN: A0350011

SKU Number: HTN_0002504

Notes:

Condensate Pump Mini Box(

MODEL: MIBP15

BRAND: CHINAFORE

Install the water removal device, but the space is very small, what should I do?
The slim box can be installed where other drain pumps cannot be installed.

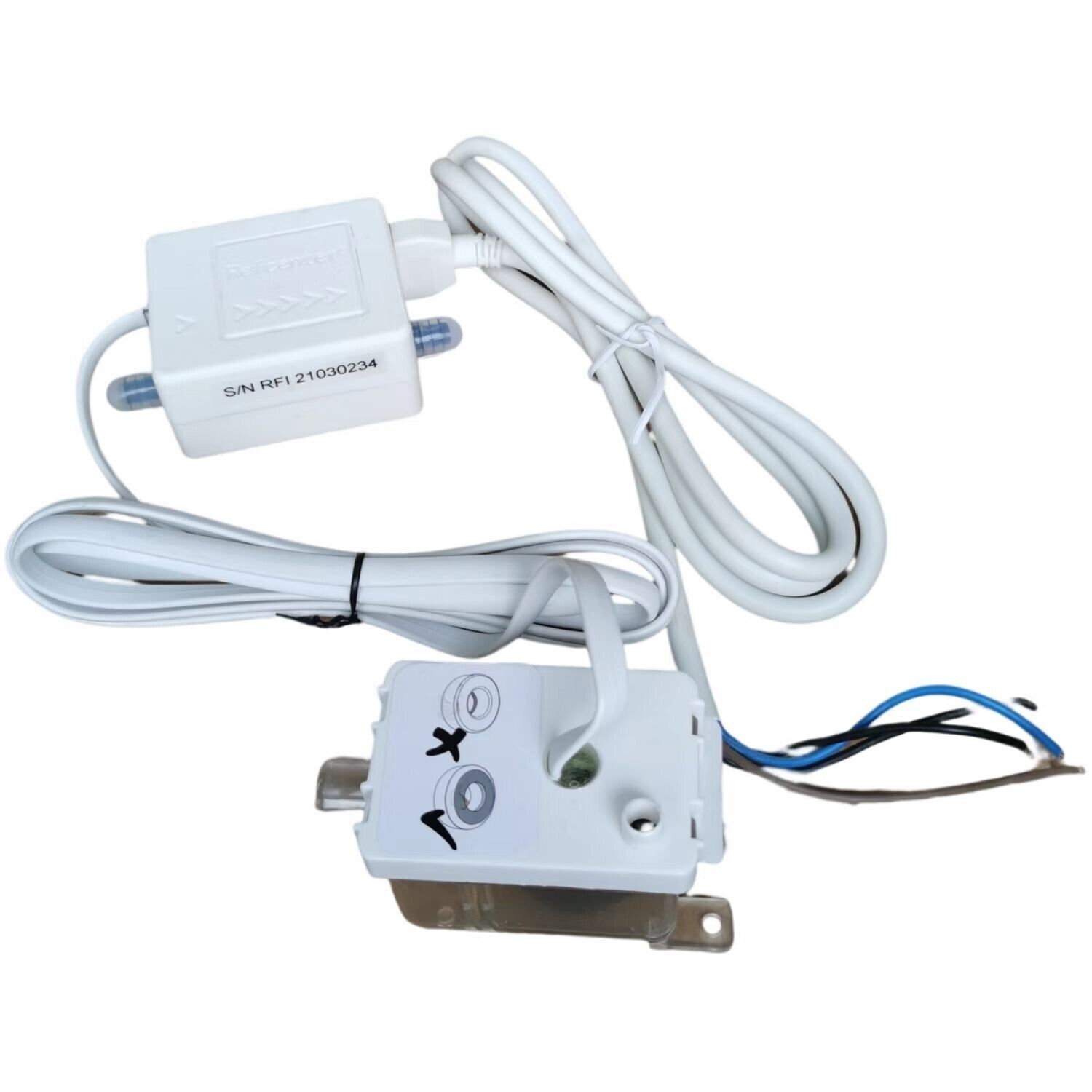

 Condensate Pump Mini Box(White) For Split Air Conditioning

Model: MIBP15

The mini box is a very compact pump that we have introduced, a variety of installation methods, simple and practical, ultra-quiet working mode gives a very comfortable feeling

 Max. flow : 15L/h @ 0 head

Max. rec.head : 12m

Sound level: <19dB(A) @ 1m


Technical Data
● Power supply: 230V AC 50/60Hz
● Max. flow: 15L/h @ 0 head
● Sound level: >19dB(A) @1 m
● Max. recommended head: 12m
● Max. suction lift: 12m
● Max. unit output: 16kw/54600 Btu/h
● Safety switch: 3A Normally closed
● Max. water temperature:40℃
● Tank capacity: 40ml
● Discharge tube: 6mmID
● Class: Ⅱ appliance
● Rated: Non Continuous
● IP Protection: IPX1
● Thermal protection: ✔
● Fully potted: ✔
● L x W x H: 92mm x 52mm x 32mm

Accessories
a. lid & sensor cable
b. float
c. filter
d. reservoir


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0002504
Brand Universal
Shipping Weight 1.0000kg
