DESCRIPTION

This Magnetron replacement is compatible with LG Ovens & Stoves.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

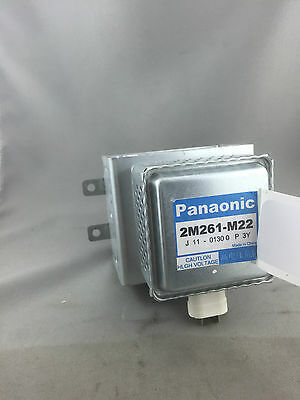

Title: PANASONIC INVERTER MICROWAVE OVEN MAGNETRON 2M261-M22 NNSD376S NN-GD368MZPE

Brand: LG

Type: Magnetron

Title : PANASONIC INVERTER MICROWAVE OVEN MAGNETRON 2M261-M22 NNSD376S NN-GD368MZPE

Notes :
Magnetron Suits Panasonic Inverter Type Microwave oven
item No.: 2M261 M22
Models to suit:
Panasonic original magnetron type 2M261-M22. This magnetron is commonly used in many Panasonic inverter models though may be found in other manufacturers ovens as well. This magnetron is an offline version, ie the airflow and electrical connecors are perpendicular / 90 degrees offset. If the magnetron looks the same as your old type then it will probably work though check the configuration carefully and compare to the new one. The airflow and terminal orientation must be exact.
For Panasonic ovens refer to the model compatibility list below. Model compatibility list for the 2M261-M22:
NN-GD368MZPE, NN-GD368MZTE, NN-GT347WZPE, NN-GT348MZPE, NN-SD366MZTE, NN-SD366WZTE, NN-SD377SZPE, NN-ST349MZPE, NN-ST349WZPE, NN-MX25WFKNQ, NN-G385MFZPE, NN-GD356WEPG, NN-GD366MEPG, NN-GD366MZPE, NN-GD366WZPE, NN-GD376SBPQ, NN-GD376SEPG, NN-GD376SZPE, NN-SD366MZPE, NN-SD366WZPE, NN-SD376SQPQ, NN-GD358WEPG, NN-GD358WWPG, NN-GD359WEPG, NN-GD359WWPG, NN-GD368MEPG, NN-GD369MEPG, NN-GD377SBPQ, NN-GD379SBPQ, NN-GD379SEPG, NN-GD379SWPG, NN-SD258WBPQ, NN-SD259WBPQ, NN-SD268MBPQ, NN-SD269MBPQ NN-SD277SBPQ, NN-SD279SBPQ, NN-SD279SEPG
Description: Inverter type magnetron
Output power: 1000W
Frequency(with matched load): 2455Mhz
Filament voltage: 3.3 Vac
Filament current: 10Aac
Peak anode voltage: 4.4KV
P/n. 2M261-M22
All Inline, 6.4mm spade terminals
There are several magnetrons used in Panasonic invertor models. If you require a different part number, please contact us and we can list it for you.
Note: Microwave ovens should only be repaired by qualified technicians with a knowledge of microwave ovens. Voltages present inside a microwave oven are extremely high and dangerous, and can be present long after the appliance is switched off and disconnected from the mains supply

Suitable Brand: LG, Samsung, Panasonic, Smeg, Miele, Bosch, Sharp

Suitable Applicance Class: Microwave

Suits to: 2M261 M22

MPN: 2M261 M22

Power Source: Electric

Suitable For: Convection Microwave Oven,Grill Microwave Oven,Solo Microwave Oven

Colour: Multicoloured

Compatible Brand: SHARP MIELE BOSCH

Capacity: 31-55 L

Installation: Built-In/Integrated

UPC: Does not apply


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.
