DESCRIPTION

This Pressure Reg replacement is compatible with DANFOSS Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

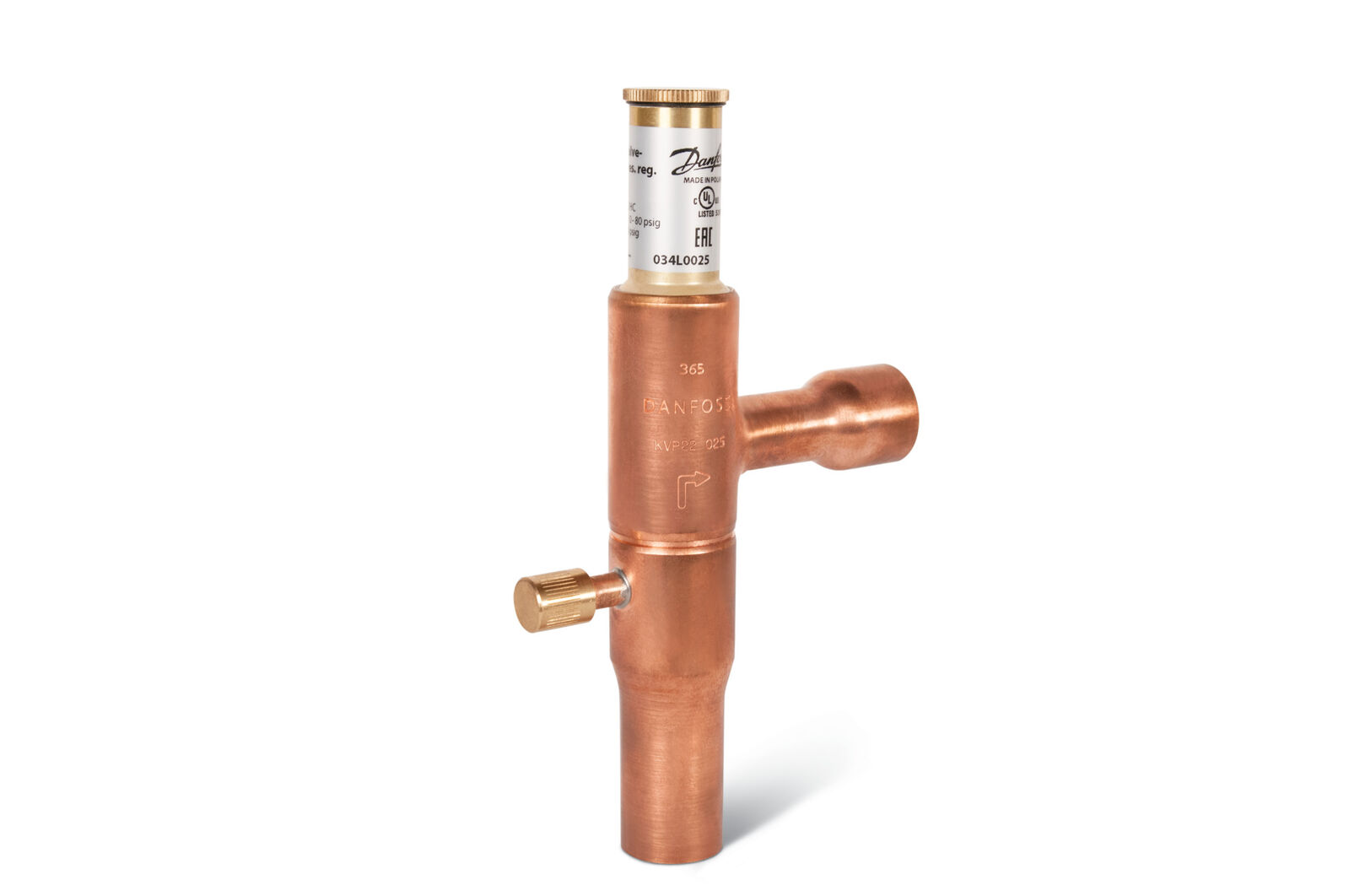

Title: Pressure Reg - Danfoss | Evaporator pressure regulator, KVP 22 7/8" Solder | PN: 034L0025

Brand: Danfoss

Type: Parts & Accessories → Flow Controls → Pressure Reg - Danfoss

MPN: 034L0025

SKU Number: KRB_0000358

Notes:

Danfoss Pressure Regulating Valve

Regulating range 0 - 5.5 bar, factory setting 2 bar, max. working pressure 18 bar.
Access port: ¼ in. Schraeder valve for pressure testing.
Max. test pressure:  KVP 12 - 22 = 28 bar, KVP 28 - 35 = 25.6 bar

Characteristics:

  • Type  KVP 22
  • Weight kg  0.416 kg
  • Access port  Yes
  • Approval  ULC
  • Cv-value USgal/min  11,010
  • Factory setting bar  2,00 bar
  • Factory setting psig  29,0 psig
  • Inlet connection type  SOLDER, ODF
  • Inlet size in  7/8 in
  • Inlet size mm  22 MM
  • Kv-value m³/h  2,500
  • Max. test pressure bar  28,0 bar
  • Max. test pressure psig  405 psig
  • Max. Working Pressure ef  18,0 bar
  • Max. Working Pressure  260 Psig
  • Medium temperature range °C  -45 - 105 °C
  • Medium temperature range °F  -50 - 220 °F
  • Outlet connection type  SOLDER, ODF
  • Outlet size in  7/8 in
  • Outlet size mm  22 MM
  • P band max. bar  2,0 bar
  • P band max. psi  29,0 psi
  • Product description  Evaporator Pres. Reg.
  • Rated capacity R134a kW  2,80 kW
  • Rated capacity R134a TR  0,90 TR
  • Rated capacity R22 kW  4,00 kW
  • Rated capacity R22 TR  1,30 TR
  • Rated capacity R404A/R507 kW  3,60 kW
  • Rated capacity R404A/R507 TR  1,20 TR
  • Rated capacity R407C kW  3,70 kW
  • Rated capacity R407C TR  1,20 TR
  • Refrigerant(s)  CFC
  • Refrigerant(s)  HCFC
  • Refrigerant(s)  HFC
  • Regulating range bar  0,0 - 5,5 bar
  • Regulating range psi  0 - 80 psi


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU KRB_0000358
Brand Danfoss
Shipping Weight 1.0000kg
