DESCRIPTION

This replacement is compatible with PATTON PAK Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

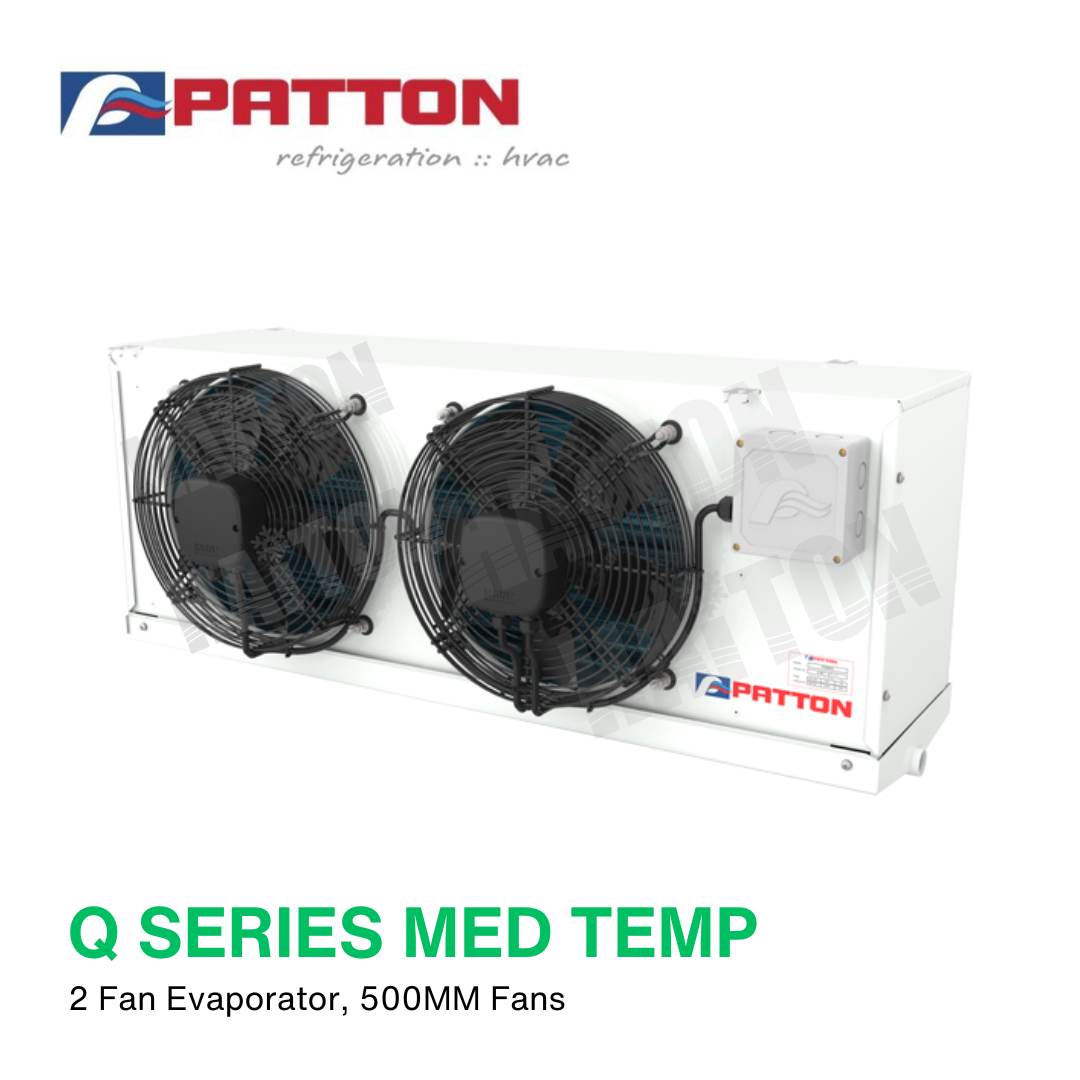

Title: QM180-42-FD2-EVD - 18750W R404A 2 Fans Med Temp Patton Evaporator Unit Cooler

Brand: Patton Pak

MPN: QM180-42-FD2-EVD

SKU Number: HTN_0002807

Notes:

QM180-42-FD2-EVD - 18750W R404A 2 Fans Med Temp Patton Evaporator Unit Cooler

Product Specifics

  • Product Type: Patton Q Series Evaporator Med Temp
  • Product Model: QM180-42-FD2-EVD
  • R404A Capacity @ -4 SST / 6KTD: 18750W
  • R448A Capacity @ -4 SST / 6KTD: 18190W
  • R134A Capacity @ -4 SST / 6KTD: 17060W
  • Air Volume: 4680 L/sec
  • Air throw: 25m
  • No. of Fans: 2
  • Fan Motor: 500mm (415V)
  • Fan Motor Watts: 1700 Watts
  • Fan Motor Amps: 3.2 Amps
  • Fin Spacing: 4.2mm
  • Inlet Connection: 7/8 inch
  • Suction Connection: 1-3/8 inch

Product Measurements

  • Net Weight: 118kg
  • Dimensions: 2330mm (L), 1036mm (W), 870mm (H)


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0002807
Brand Patton Pak
Shipping Weight 1.0000kg
