DESCRIPTION

This replacement is compatible with SHANGFANG Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

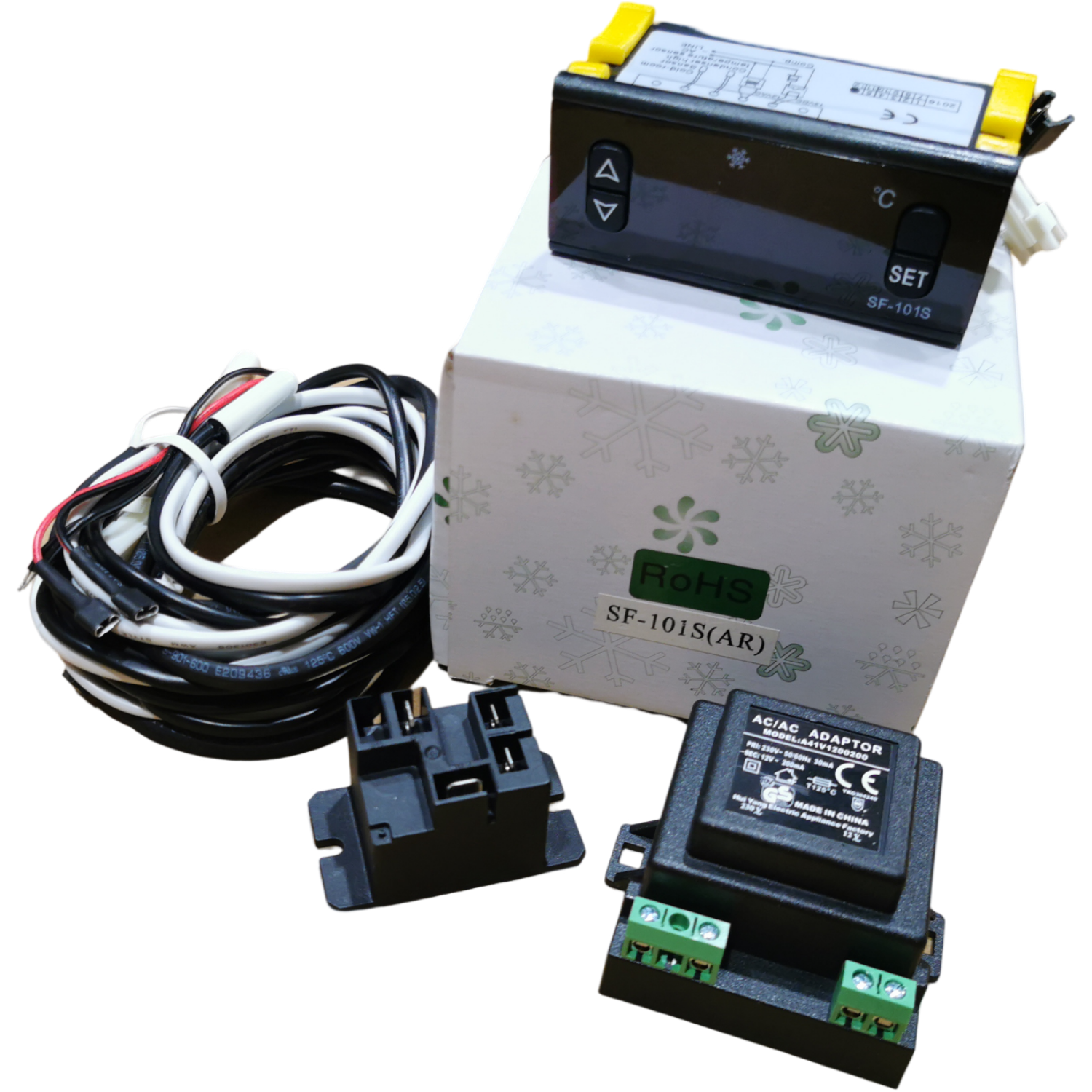

Title: SF-101S(AR) SHANGFANG Digital Temperture Controllers -45 to 99 Deg

Brand: Shangfang

MPN: R009201

SKU Number: HTN_0003139

Notes:

Brand: SHANGFANG

Model: SF-101S(AR)

Specifications

Digital Temperature controller
1.CE, CQC, RoHS approved
2. 30A compressor relay
3.Temperature range:-45 to 99oC
              Technical Data

 Fan Cooling Digital Temperature Controller SF-101S

 1. CE, CQC, RoHS approved

2.Ideal for vertical cooling & fan cooling freezers

3.Waterproof & hermetic/ Super-short dimension / Outer relay

4.Re-start delay / Parameter locking

5.Defrost by turning off compressor

6. Temperature range:-45 to 99oC

7. Accuracy: ±1

8.Power supply: 230VAC or 120VAC   50/60Hz

9.Compressor relay: 30A/250VAC(1HP)

10.Sensor: NTC, 1pc

11.Dimension: 77(L)×35(W)×30(D)mm

12.Mounting hole dimension:71(L)×29(W)

 Parameter

Function

Set range

Default

E1

Lower setpoint limit

-5oC to Set temp.

-5oC

E2

Higher setpoint limit

Set temp. to 99oC

20oC

E3

Temp.hysteresis

1 to 20oC

4oC

E4

Comp.start delay time

0 to 10Min

2Min

E5

Offset on room temp.

-10 to 10oC

0

F1

Max.Defrost duration

1-190Min

20Min

F2

Defrost interval time

0 to 24Hr

0Hr


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003139
Brand Shangfang
Shipping Weight 1.0000kg
