DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

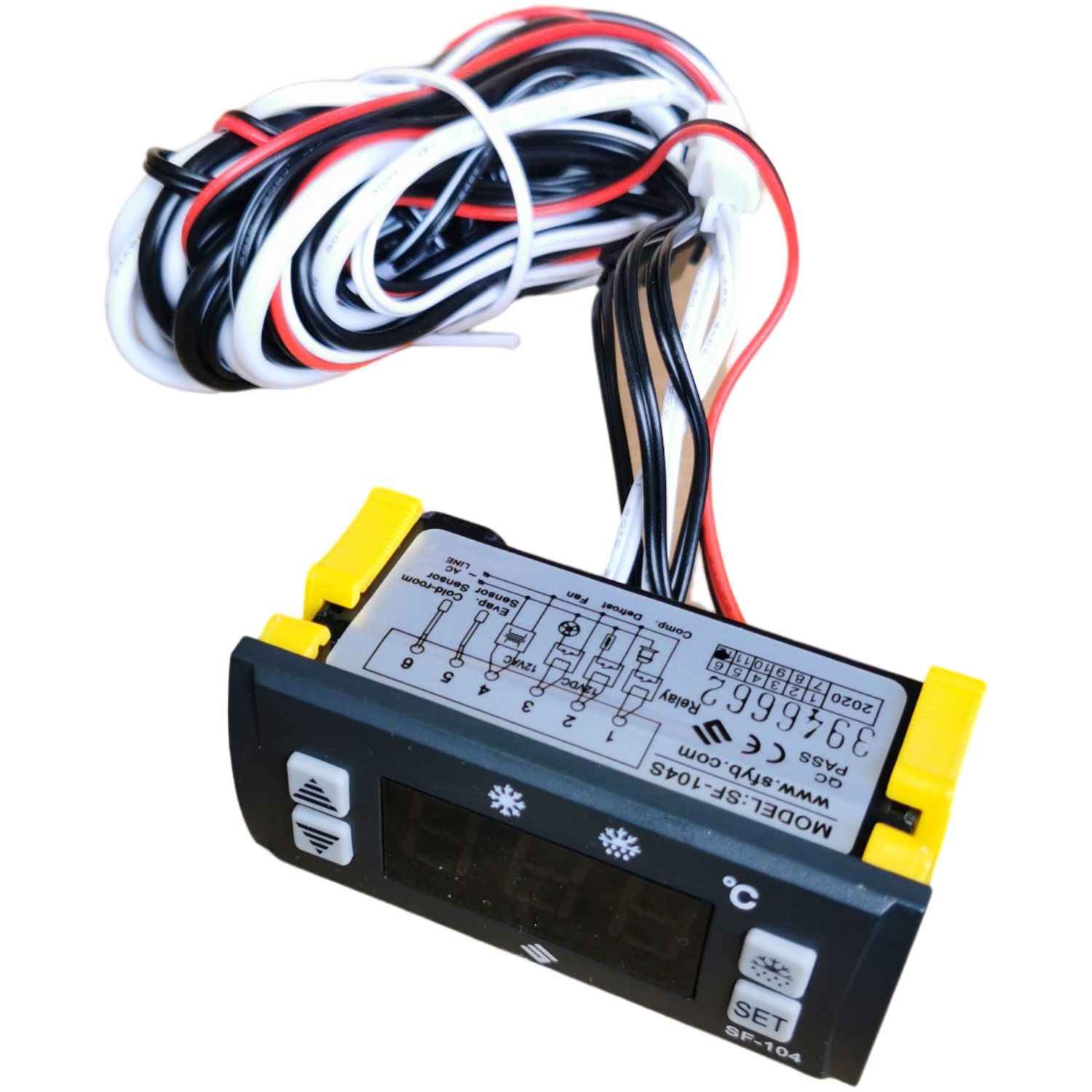

Title: SF-104S TEMPERATURE CONTROLLER

MPN: SF-104S

SKU Number: HTN_0003149

Notes:

Brand: SHANGFANG

Model: SF-104S

Features
Temperature control
Evaporator fan control
Automatic/manual defrost by electric heater
Time/temp. seting to end defrost
Celsius/Fahrenheit degrees
Re-start delay

Technical Data
Range of temperature displayed :  －45～45℃(－40～120℉)
Range of set temperature: －45～45℃ (－40～120℉)
Accuracy:±1℃ (±2℉)
Compressor: N.O. 30A/250VAC
Defrost: N.O. 30A/250VAC
Evap. Fan: N.O. 30A/250VAC
Dimension:77(Length)×35(Width)×30(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Parameters

Parameter
Function
Set range
Default
E1
Lower setpoint limit
－45℃/－45℉～Set temp.
－22℃/－8℉
E2
Higher setpoint limit
Set temp.～45℃/120℉
20℃/68℉
E3
Temp.Hysteresis
1～10℃/1～18℉
4℃/7℉
E4
Comp.start delay time
0～10Min
03Min
E5
Offset on room temp.
－20～20℃/－20～20℉
0
E6
Offset on evap.temp.
－20～20℃/－20～20℉
0
C1
Temperature unit
℃=Celsius ℉=Fahrenheit
℃
F1
Max.defrost duration
1～60Min
20Min
F2
Defrost interval time
0～24Hr
04Hr
F3
Defrost termination temp.
0～20℃/32～68℉
8℃/46℉
F4
Display during defrost
0=Normal display
1=Last value before defrost
0
F5
Fan operating function
0=Parallel with comp.
1=Continuous running except defrost
0


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003149
Brand Universal
Shipping Weight 1.0000kg
