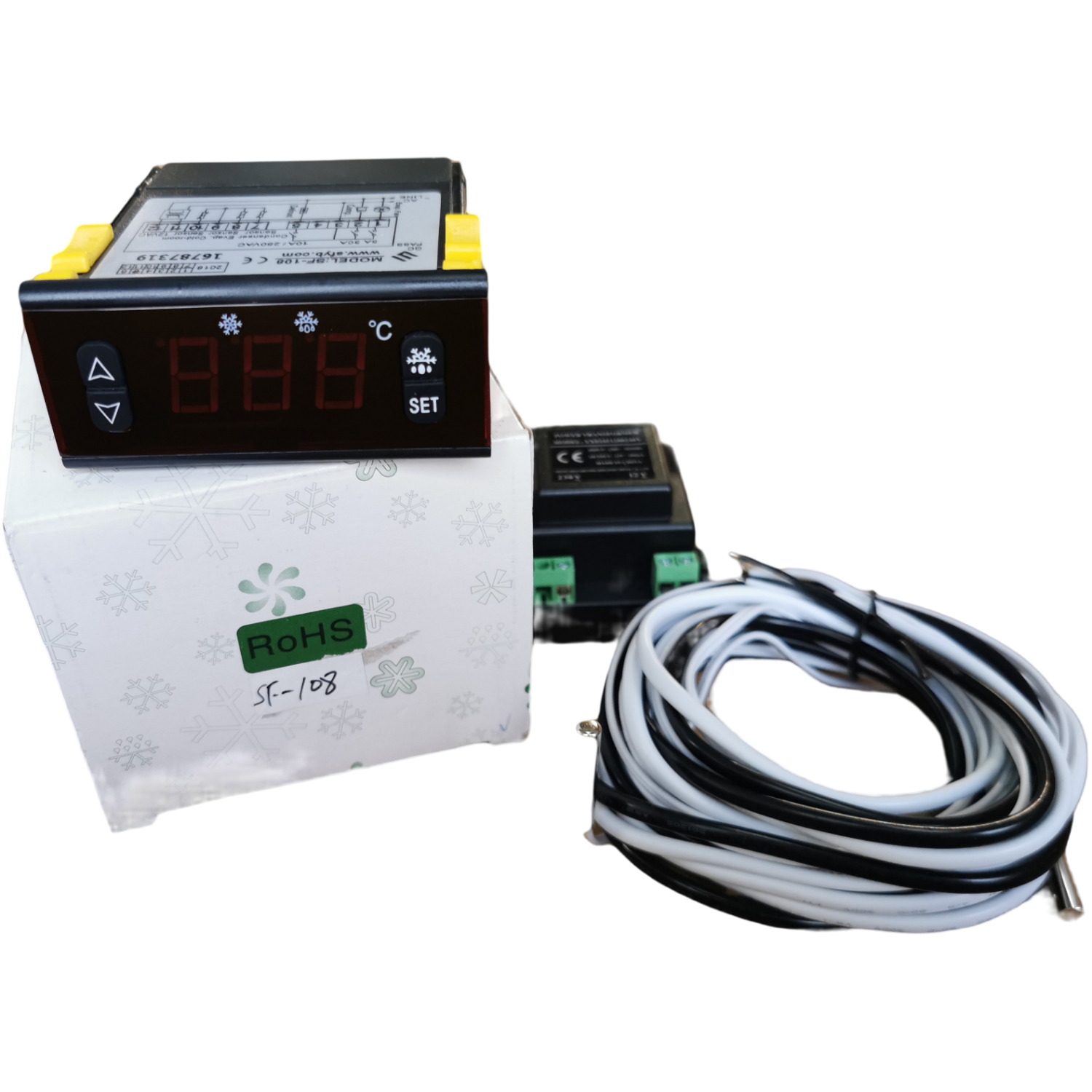

Title: SF-108 SHANGFANG floor heating thermostat -45°C~150°C

Brand: Shangfang

MPN: SF-108

SKU Number: HTN_0003151

Notes:

Digital thermsotat for kitchen model  SF-108

Features

1 Temperature sensor:NTC,3pcs

2 Temperature control/Evap.Fan control

3 Manual/Automatic defrost by electric herater/hot gas

4 Time/Temp.setting to end defrost

5 High/Low temperature alarm

6 Condenser high temperature alarm

7 Value storing/Self testing

8 Mini-sized and integrated intelligent controller

9 Applicable to the compressor of 1HP

Technical Data

1 Range of temperature displayed:-45°C~150°C(-45°F~302°F)

2 Range of set temperature:-45°C~100°C(-45°F~212°F)

   Accuracy:±1°C(±2°F)

3 Compressor:NO.30A/250VAC

   Defrost:NO.10A/250VAC

   Evap.Fan:NO.5A/250VAC

   Output of the outside sealed transformer:12VAC

4 Temperature of the operating environment:-10°C~60°C(14°F~140°F)

    Relative humidity:20%~90%(Non-condensing)

Size

Dimension:77(L)x35(W)x60(D)mm

Mounting hole dimension:71(L)x29(W)mm

Circuit diagram

 Parameter

ParameterFunctionSet rangeDefault
E1Lower setpoit limit-45°C/-45°F~Set temp.-35°C/-31°F
E2Higher setpoint limitSet temp.~100°C/212°F20°C/68°F
E3Temp.hysteresis1~20°C/1~36°F4°C/7°F
E4Comp.start delay time0~10Min2Min
E5Offset on room temp.-20~20°C/-36~36°F0
E6Offset on evap.temp.-20~20°C /-36~36°F0
E7Offset on condens.-20~20°C/-36~36°F0
F0Defrost function

0=Electric heater

1=Hot gas

0
F1Max.defrost duration1~60Min20Min
F2Defrost interval time0~24Hr4Hr
F3Defrost termination temp.0~30°C/32~86°F8°C/46°F
F4Display during defrost

0=Normal disply

1=Last value before defrost

0
F5Fan operation function

0=Parallel with comp.

1=Continuous running except defrost

0
C1Temperature unit°C=Celsius °F=Fahrenheit°C
C2High temperature alarmC3~100°C/212°F40°C/104°F
C3Low temperatur alarm-45°C/-45~C2°F-40°C/-40°F
C4Alarm delay time1~90Min60Min
C5Condenser temperature alarm value0~120°C/0~248°F80°C~176°F
