DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

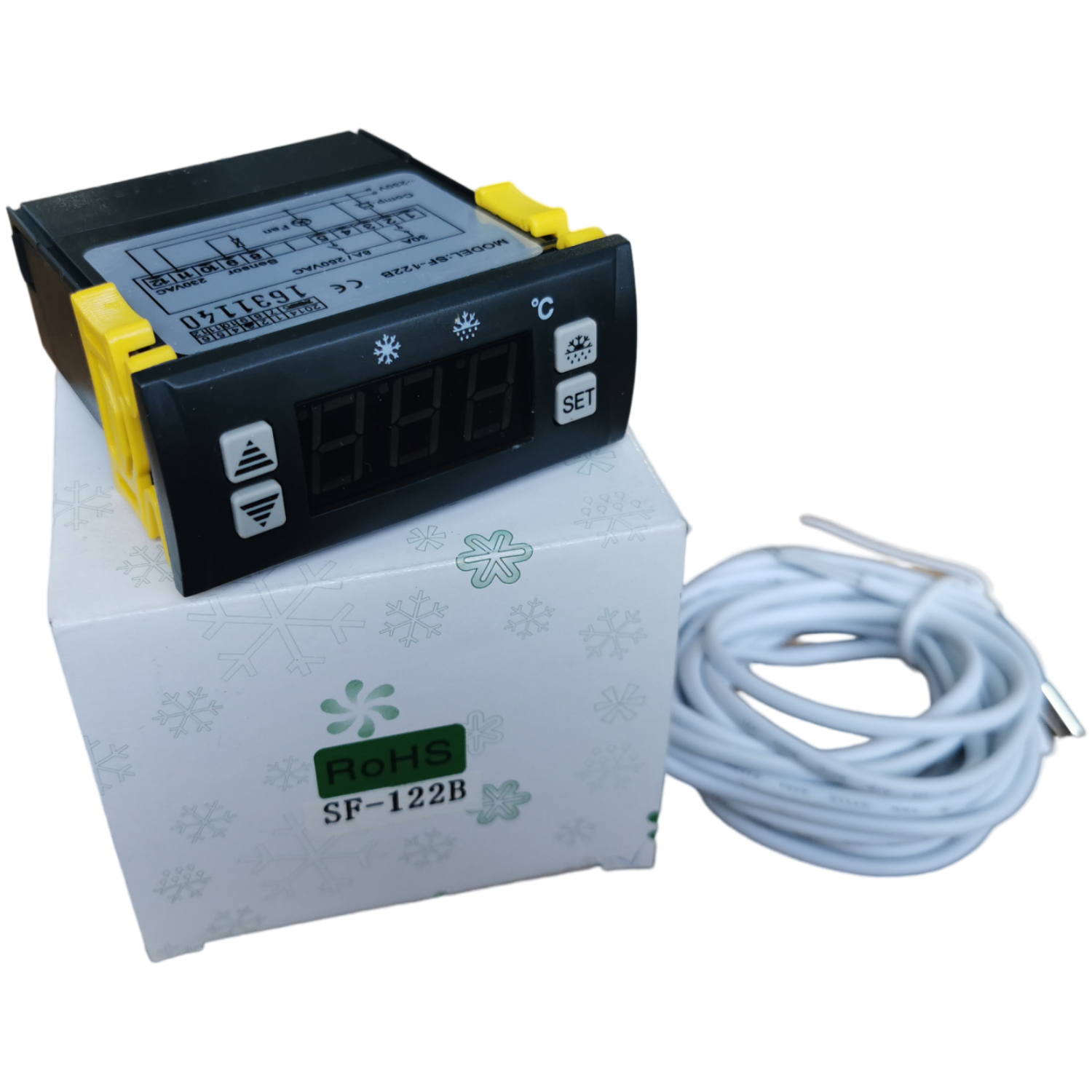

Title: SF-122B TEMPERATURE CONTROLLER

MPN: SF-122B

SKU Number: HTN_0003153

Notes:

Brand: SHANGFANG

Model: SF-122B

Features:

Mini-sized and integrated intelligent control and

applicable to the compressor of one HP.

Temperature Display/Temperature Control/

Evap.Fan Control/Value Storing/ SelfTesting

Technical Data

Rangeoftemperature displayed:—45~99°C

Accuracy:± 1°C

Rangeofset temperature: —45~99°C

Temperature sensor:NTC, 3.5m(L)

Compressor : N.O. 30A/250VAC • Evap.Fan : N.O. 8A/250VAC

Dimension:77(Length) X 35 (Width) X 70(Depth)mm Mounting hole dimension:71(Length)X 29(Width)mm

Parameters

Paramete

Function

Set range

Default

E1

Lower setpoint limit

— 45 °C—Settemp.

2C

E2

Higher setpoint limit

Set temp.—99°C

8C

E3

Temp. hysteresis

1 — 20°C

4C

E4

Comp. start delay time

0 —10Min

2Min

E5

Offset on room temp.

—10—10C

0C

H1

Fan control

H1=Parallelwith compressor,it turns off during defrost H2=Parallelwith compressor,it turns during defrost H3=Keeps running,it turns on during defrost H4=Keeps running,it turns off during defrost

2


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003153
Brand Universal
Shipping Weight 1.0000kg
