DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

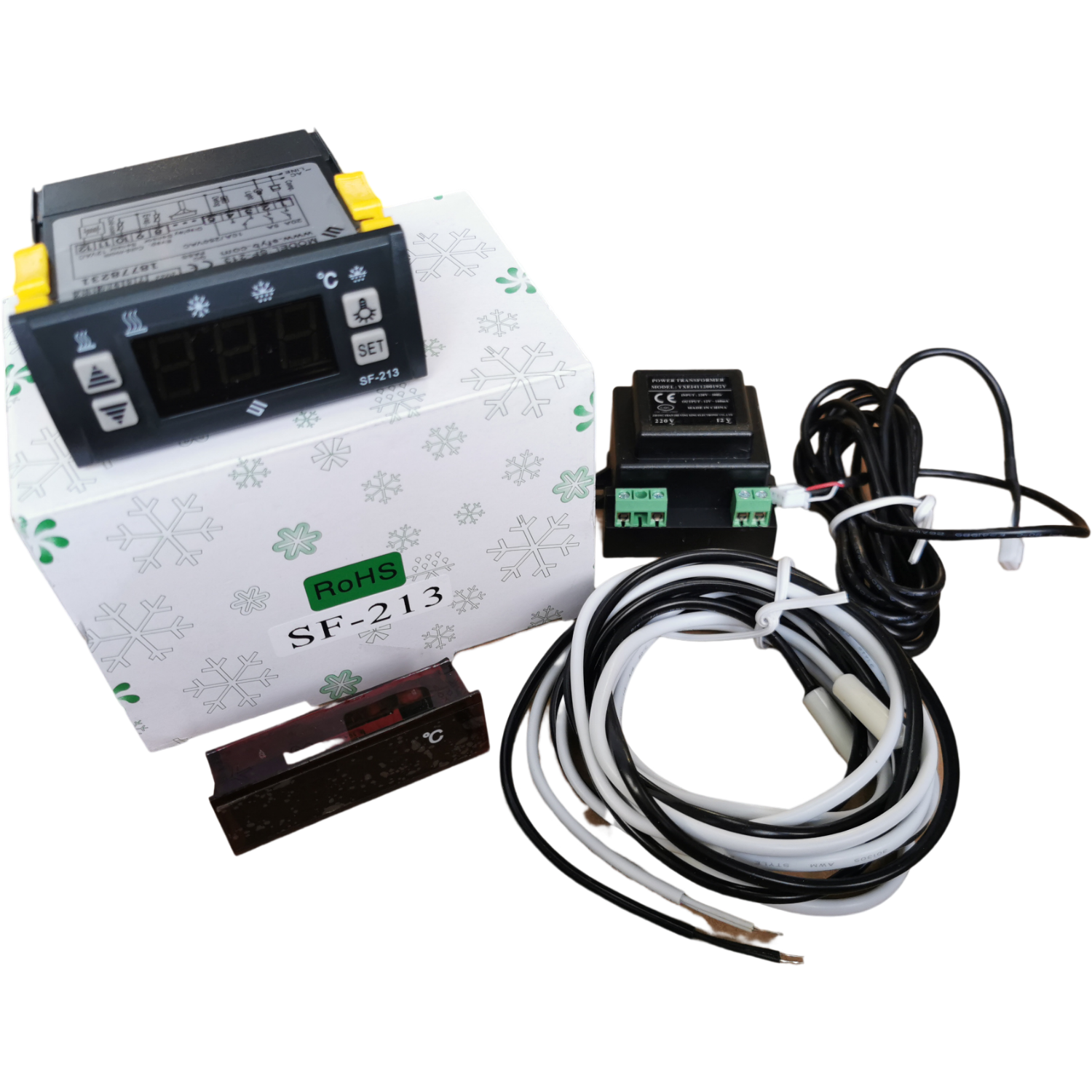

Title: SF-213 water dispenser refrigerator thermostat －45℃~45℃

MPN: SF-213

SKU Number: HTN_0003162

Notes:

Brand: SHANGFANG

Model: SF-213

Features
Temperature control
Light control
Electric heater defog
manual/automatic defrost by turning off
Time/temp. seting to end defrost
Celsiuc/Fahrenheit degress
Re-start delay
Relay output :1HP（compressor）

Technical Data
Range of temperature displayde:－45℃~45℃
Range of set temperature: －45℃~45℃
Accuracy:±1℃ (±2℉)
Compressor: N.O. 20A/250VAC
Defog: N.O. 10A/250VAC
Light: N.O. 5A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm


Parameters


Parameter

Function

Set range

Default

E1

Lower setpoint limit

－45℃/－40℉～Set temp.

－35℃/－31℉

E2

Higher setpoint limit

Set temp.～45℃/120℉

20℃/68℉

E3

Temp.Hysteresis

1～10℃/1～18℉

4℃/7℉

E4

Comp.start delay time

0～10Min

2Min

E5

Offset on room temp.

－5～5℃/℉

0

E6

Offset on evap.Temp.

－5～5℃/℉

0

F1

Max.Defrost duration

1～60Min

20Min

F2

Defrost interval time

0～24Hr

6Hr

F3

Defrost termination temp.

0～20℃/32～68℉

8℃/46℉

F4

Display during defrost

0=Normal display
1=Last value before defrost

0

C1

Temperature unit

0=℃ 1=℉

0


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003162
Brand Universal
Shipping Weight 1.0000kg
