DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

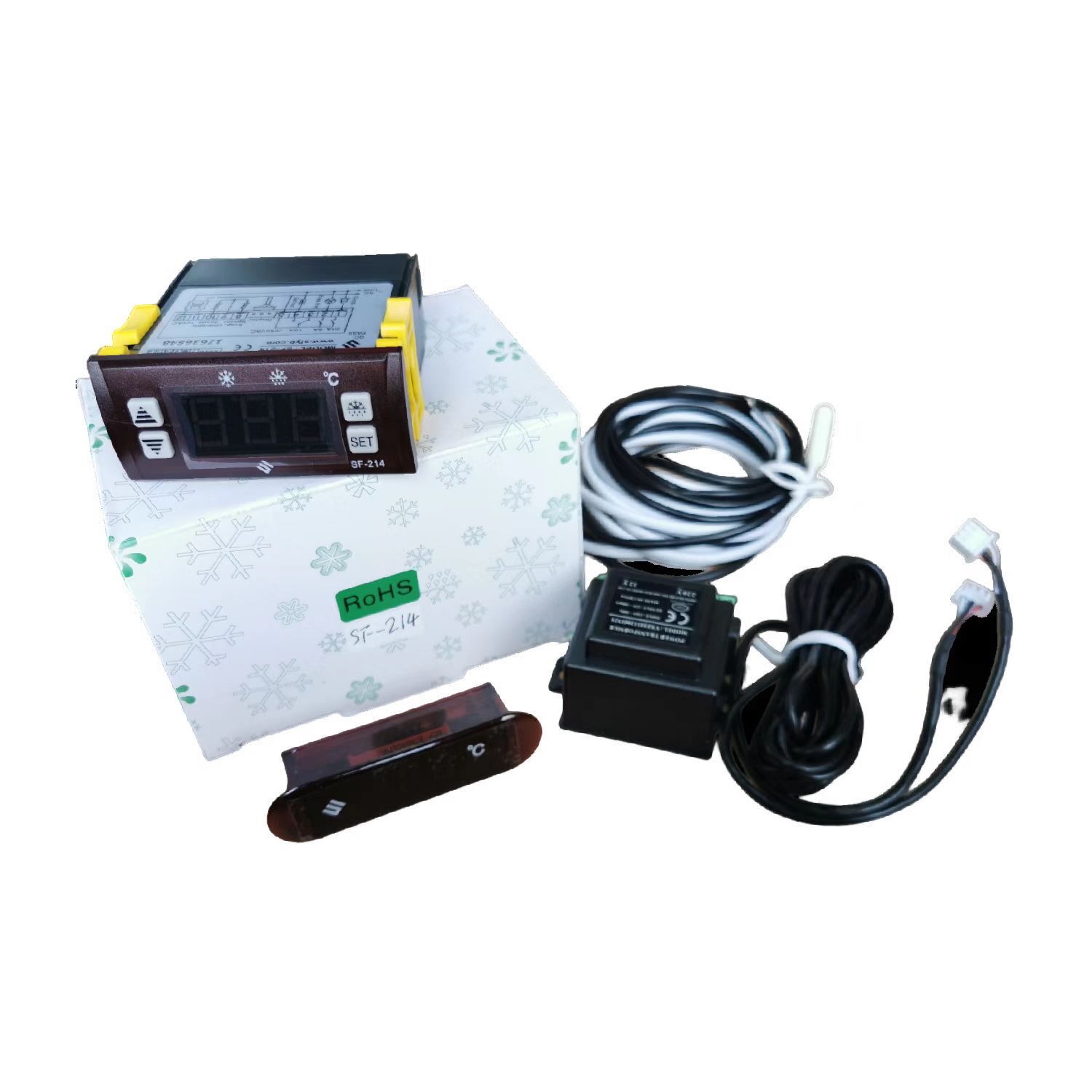

Title: SF-214 TEMPERATURE CONTROLLER

MPN: SF-214

SKU Number: HTN_0003163

Notes:

Brand: SHANGFANG

Model: SF-214

Features
Temperature control / Evap.Fan Control
Automatic/ manual defrost by electric heater
Re-start delay
Celsius/Fahrenheit degrees
Relay output :1HP(compressor)

Technical Data
Range of temperature displayed :  －45～45℃(－40~120℉)
Range of set temperature: －45～45℃ (－40~120℉)
Accuracy:±1℃ (±2℉)
Compressor: N.O. 20A/250VAC
Defrost: N.O. 10A/250VAC
Evap. Fan: N.O. 5A/250VAC
Host controller   Dimension:77(Length)×35(Width)×60(Depth)mm
                             Mounting hole dimension:71(Length)×29(Width)mm
Display               Dimension:83(Length)×23(Width)×18(Depth)mm
                             Mounting hole dimension:66(Length)×19.5(Width)mm

Parameters

Parameter

Function

Set range

Default

E1

Lower setpoint limit

－45℃/－40℉～Set temp.

－35℃/－31℉

E2

Higher setpoint limit

Set temp.～45℃/120℉

20℃/68℉

E3

Temp.Hysteresis

1～10℃/1～18℉

4℃/7℉

E4

Comp.start delay time

0～10Min

2Min

E5

Offset on room temp.

－5～5℃/℉

0

E6

Offset on evap.Temp.

－5～5℃/℉

0

C1

Temperature unit

0=℃   1=℉

0

F1

Max.Defrost duration

1～60Min

20Min

F2

Defrost interval time

0～24Hr

6Hr

F3

Defrost termination temp.

0～20℃/32～68℉

8℃/46℉

F4

Display during defrost

0=Normal display
1=Last value before defrost

0

F5

Fan operating function

0=Parallel with comp.

1=Continuous running except defrost

0
