DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

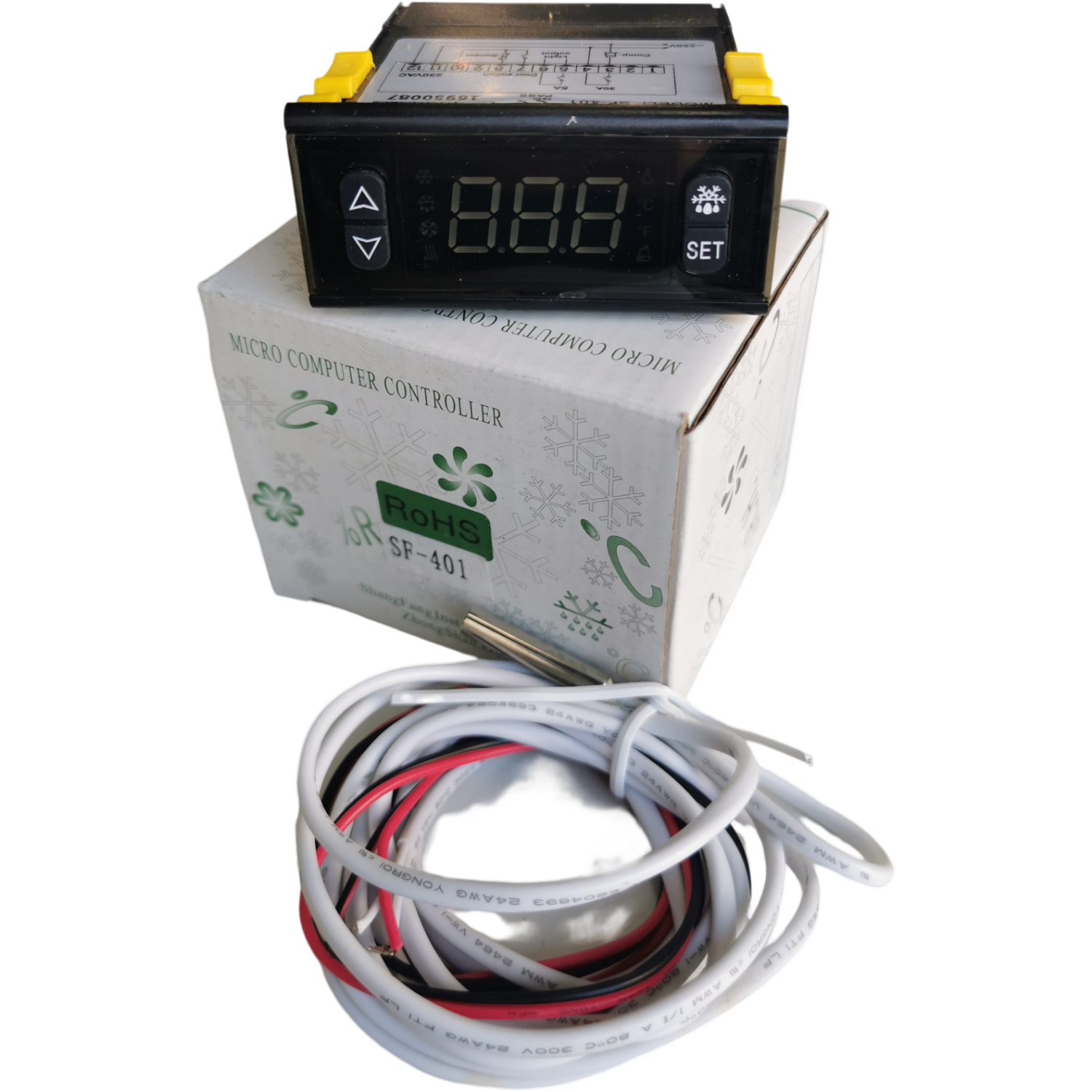

Title: SF-401 TEMPERATURE CONTROLLER

MPN: SF-401

SKU Number: HTN_0003164

Notes:

Brand: SHANGFANG

Model: SF-401

Features

Mini-sized and integrated temperature control, can directly control 1HP compressor (include 1HP)

Parameter locking/Self testing

Technical Data

Temperature display range: -45~66℃(-45~150℉)

Set temperature range:－40℃~45℃(－40~113℉)

Accuracy:±01℃(02℉)

Temperature sensor: NTC, one sensor, 2 meters (Neither positive nor negative)

Compressor :N.O. 30A/250VAC (can directly connect to 1HP compressor, if more needs

Alarm: N.O.5A/250VAC

Input signals door switch, alarm input (selectable), when door switch input there is energy saving mode.

Dimension:77 L mm 35(W)mm 70(D)mm

Mounting hole dimension: 71mm L 29mm(W)

Parameters

Paramete

Function

Set range

Default

PAS

Password

0 0～99

1 5

E1

Lowest set point limit

－40℃/－40℉～Set temp.

－25℃/－13℉

E2

Higher set point limit

Set temp.～45℃/113℉

20℃/68℉

E3

hysteresis

01～20℃/02～36℉

04℃/07℉

E40

Comp.start delay time

00～10Min

2Min

E41

Delay starting time

00～10Min

2Min

E5

Offset on room temp.

－20～20℃/－36～36℉

00℃/00℉

FF1

Defrost interval way

00=power on time

01=comp. continuously working time

00

F1

Max defrost duration

01～60min

20min

F2

Defrost interval time

00～24Hr

6Hr

F4

Display during defrost

00= normal display

01= last value before defrost

02=dEF

00

C1

Cold room high temp. alarm

C2～45℃/113℉

40℃/104℉

C2

Cold room lowtemp. alarm

40℃/40℉～C1

-40℃/-40℉

C4

Alarmhysteresis

01～20℃/02～36℉

02℃/04℉

C5

Outer alarminput effective work way

00= comp. stop running

01= running as C7, C8

00

C6

Alarmafter delay

00～99min

2min

C7

Comp. force stop time

01～99min

10min

C8

Comp. force running time

00= comp. stop running

01～99 = min starting time

30min

C9

Alarmoutput type

00

CF

Temperature unit

00=℃/ Celsius

01=℉/Fahrenheit

00
