DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

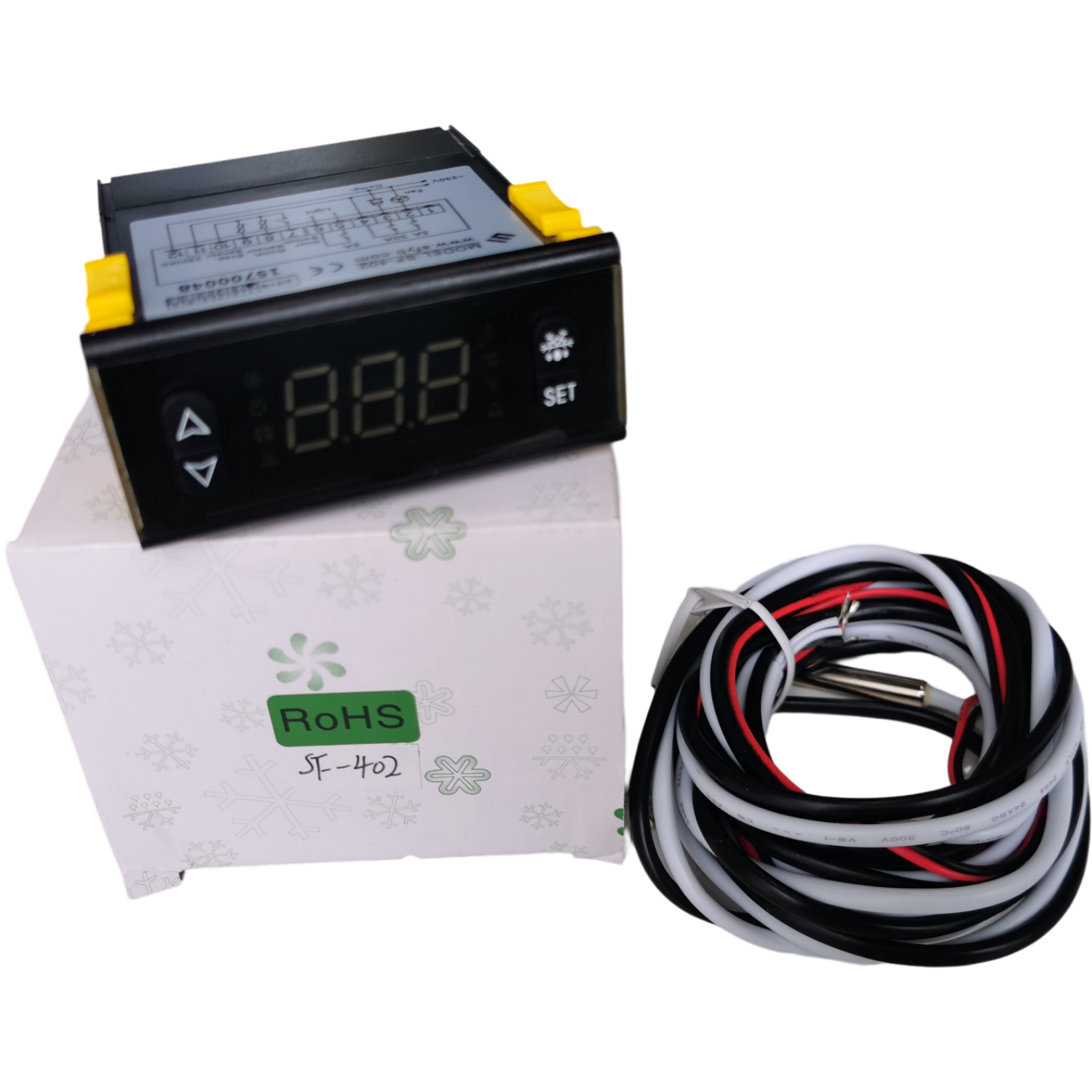

Title: SF-402 TEMPERATURE CONTROLLER

MPN: SF-402

SKU Number: HTN_0003165

Notes:

Brand: SHANGFANG

Model: SF-402

Features

Mini-sized and integrated temperature control

can directly control 1HP compressor (include 1HP)

Temperature display/Temperature control

Manual, automatic defrost

Evap. fan control

Energy saving mode/Light control

Value storing/Parameter locking/Self testing

Technical Data

Temperature display range:-45~66℃(-45~150℉)

Set temperature range：－40℃~45℃(－40~113℉)

Accuracy:±01℃(02℉)

Temperature sensor: NTC, two sensors (cold room&defrost control), 2 meters/

One door control switch line(optional)

Evap. Fan N.O. 5A/250VAC

Light：N.O 5A/250VAC

Increase dor (condenser sensor, door switch, alarm input) model selection input, when door control

input there is energy saving mode.

Dimension:77(L)mm×35(W)mm×70(D)mm

Mounting hole dimension: 71mm( L)×29mm(W)

Parameters

Paramete

Function

Set range

Default

PAS

Password

00～99

1 5

E1

Lowest set point limit

－40℃/－40℉～Set temp.

－25℃/－13℉

E2

Higher set point limit

Set temp.～45℃/113℉

20℃/68℉

E3

hysteresis

01～20℃/02～36℉

04℃/07℉

E40

Comp.start delay time

0 0～1 0 Min

2 Min

E41

Delay starting time

0 0～1 0 Min

2 Min

E5

Offset on room temp.

－20～20℃/－36～36℉

00℃/00℉

E6

Offset on evap. Temp

－20～20℃/－36～36℉

00℃/00℉

E7

Offset on condenser temp.

－20～20℃/－36～36℉

00℃/00℉

F0

Defrost type

00=defrost by turning off comp.

01=heating defrost

02=hot gas defrost

00

FF0

when enter hot gas defrost comp. delay starting time

00～20Min

00Min

FF1

Defrost interval way

00=power on time

01=comp. continuously working time

00

F1

Max defrost duration

01～60 Min

20 Min

F2

Defrost interval

00～24 Hr

6 Hr

F30

Defrost starting temperature

-40℃/-40℉～F31

00℃/32℉

F31

Defrost termination temperature

F30～40℃/104℉

08℃/46℉

F4

Display during defrost

00= normal display

01= last value before defrost

02=dEF

00

F5

Dripping time

00～30 Min

2 Min

P1

Fan control during refrigeration

00＝synchronized with compressor

01= keep running

02＝determined by P4, P5

00


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003165
Brand Universal
Shipping Weight 1.0000kg
